ENGINE CONTROL SYSTEM : Commercial Service Tools or/and Repair Part

Tool name (TechMate No.)	Description
Fuel pressure gauge (--)	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring fuel pressure NOTE: Use the pressure gauge which can measure 690 kpa (6.9 bar, 7.0kg/cm ² , 100 psi) or more.

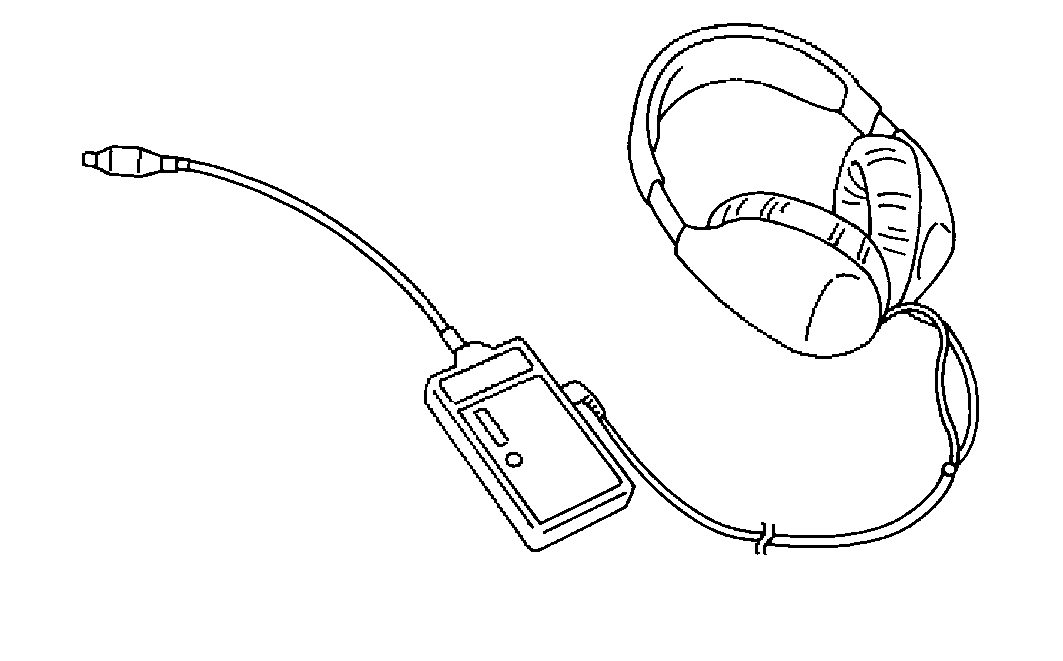

Leak detector i.e.: (J-41416)	Courtesy of NISSAN NORTH AMERICA, INC.	Locates the EVAP leak

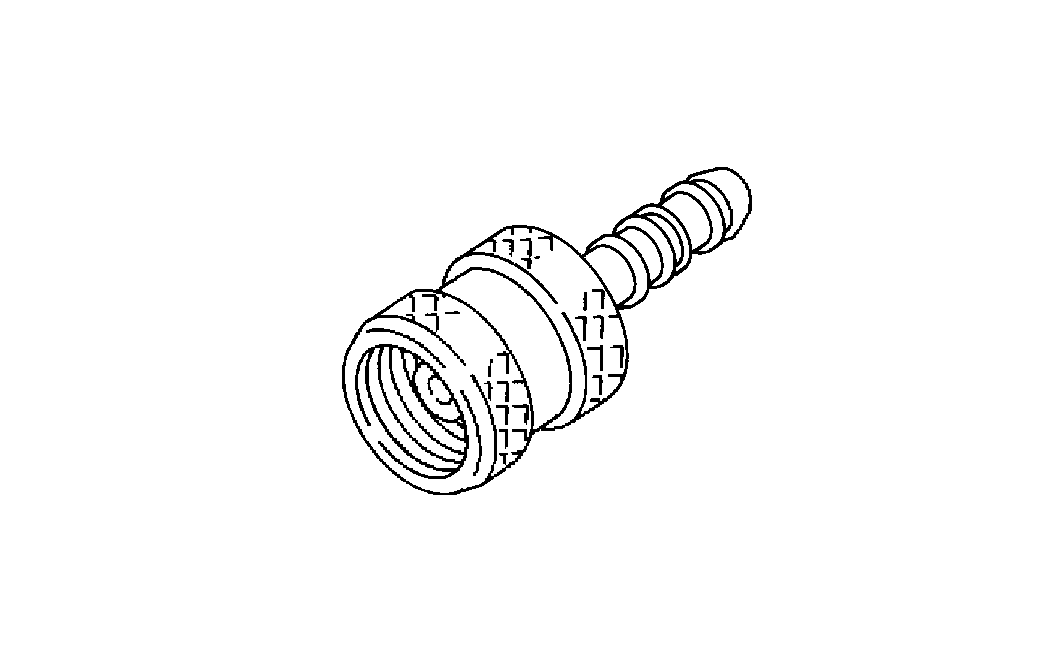

EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN NORTH AMERICA, INC.	Applies positive pressure through EVAP service port

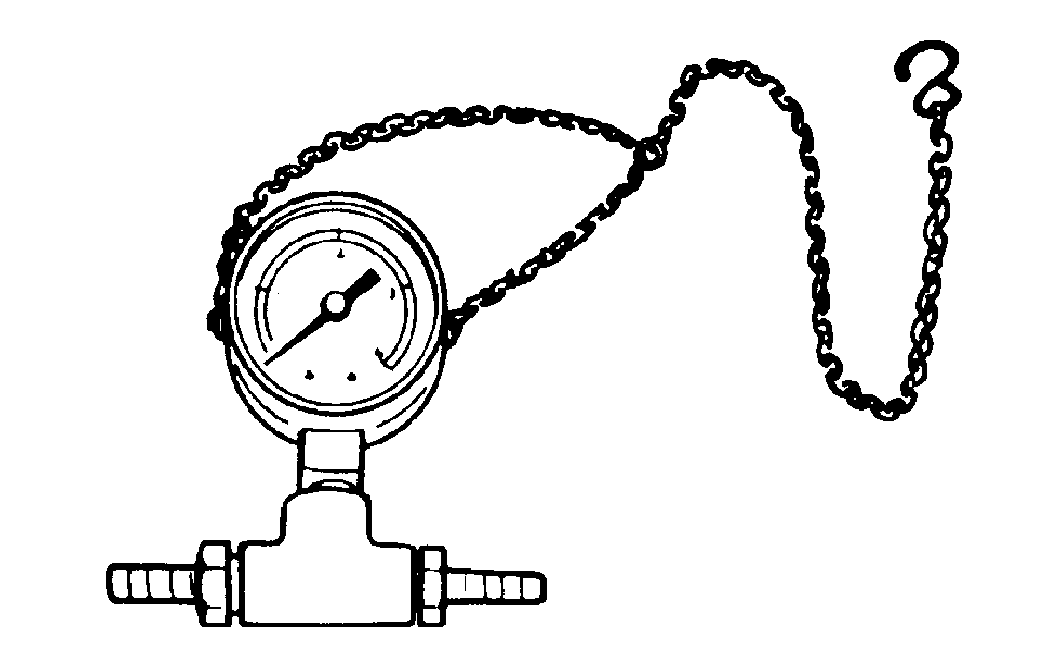

Fuel filler cap adapter i.e.: (J-42909)	Courtesy of NISSAN NORTH AMERICA, INC.	Checks fuel tank vacuum relief valve opening pressure

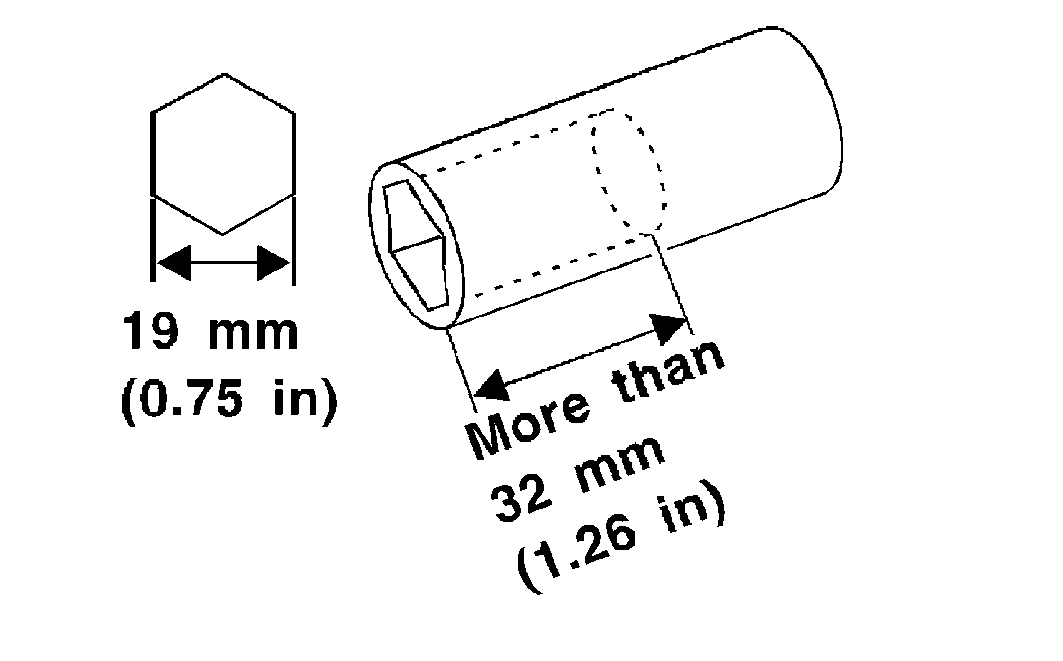

Socket wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Removes and installs engine coolant temperature sensor

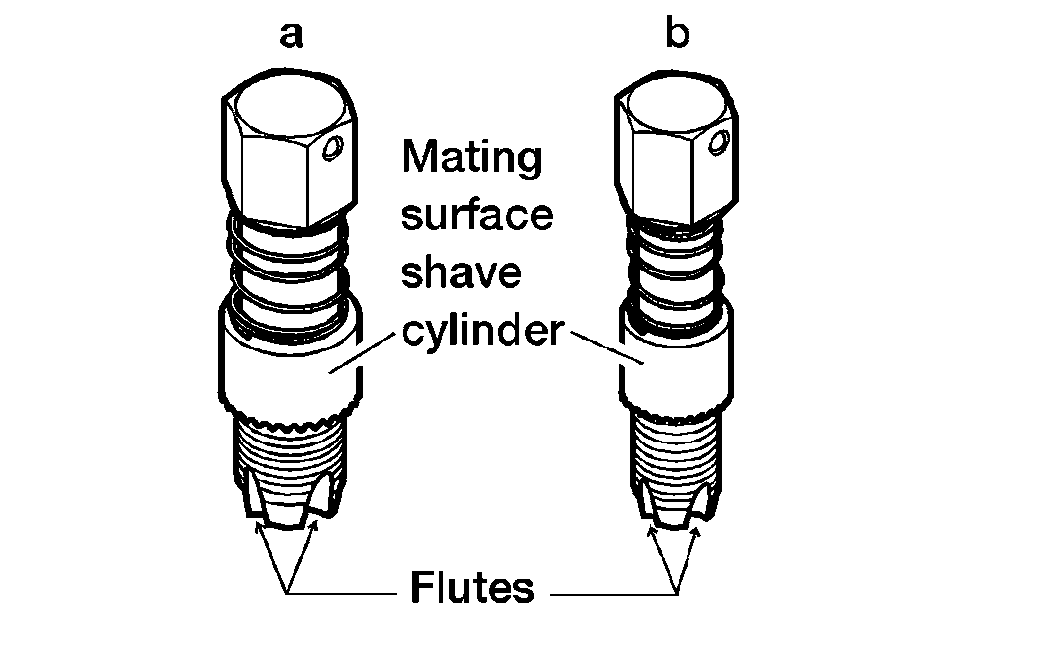

Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12)	Courtesy of NISSAN NORTH AMERICA, INC.	Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor

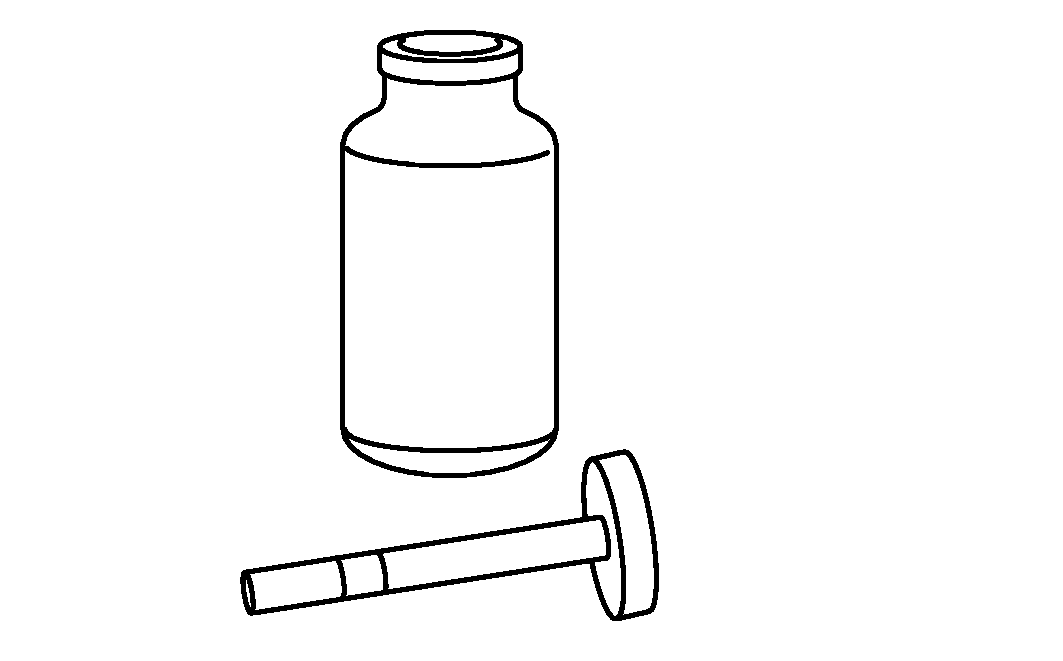

Anti-seize lubricant i.e.: (Permatex ^TM 133AR or equivalent meeting MIL specification MIL-A-907)	Courtesy of NISSAN NORTH AMERICA, INC.	Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads.
