Component Inspection

1. Turn ignition switch OFF.
2. Disconnect exhaust valve timing control position sensor harness connector.
3. Loosen the fixing bolt of the sensor.
4. Remove the sensor. Refer to TIMING CHAIN : Exploded View .

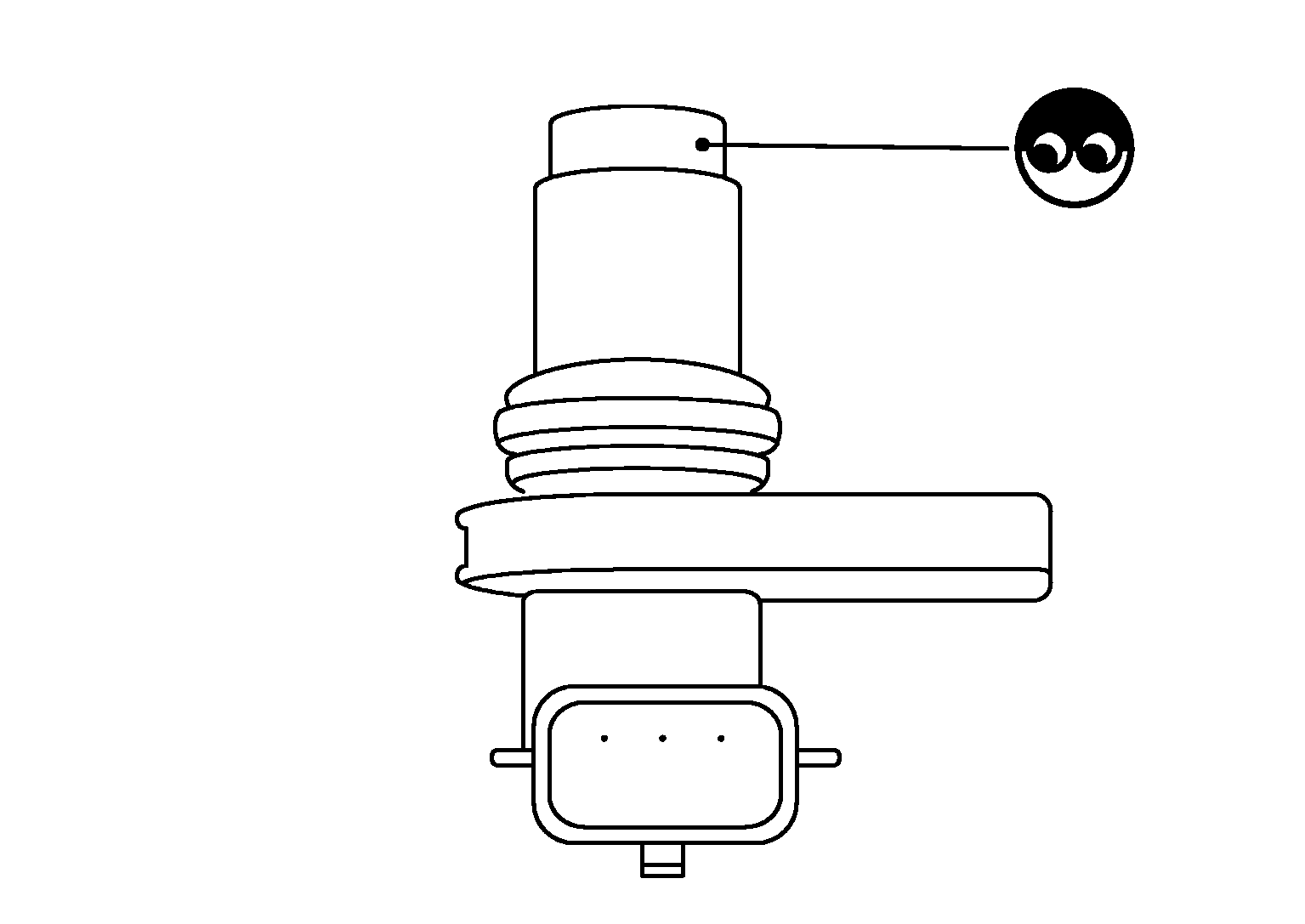

5. Visually check the sensor for chipping.

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

GO TO 2.

NO

Replace malfunctioning exhaust valve timing control position sensor. Refer to TIMING CHAIN : Exploded View .

Check resistance exhaust valve timing control position sensor terminals as shown below.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace malfunctioning exhaust valve timing control position sensor. Refer to TIMING CHAIN : Exploded View .
