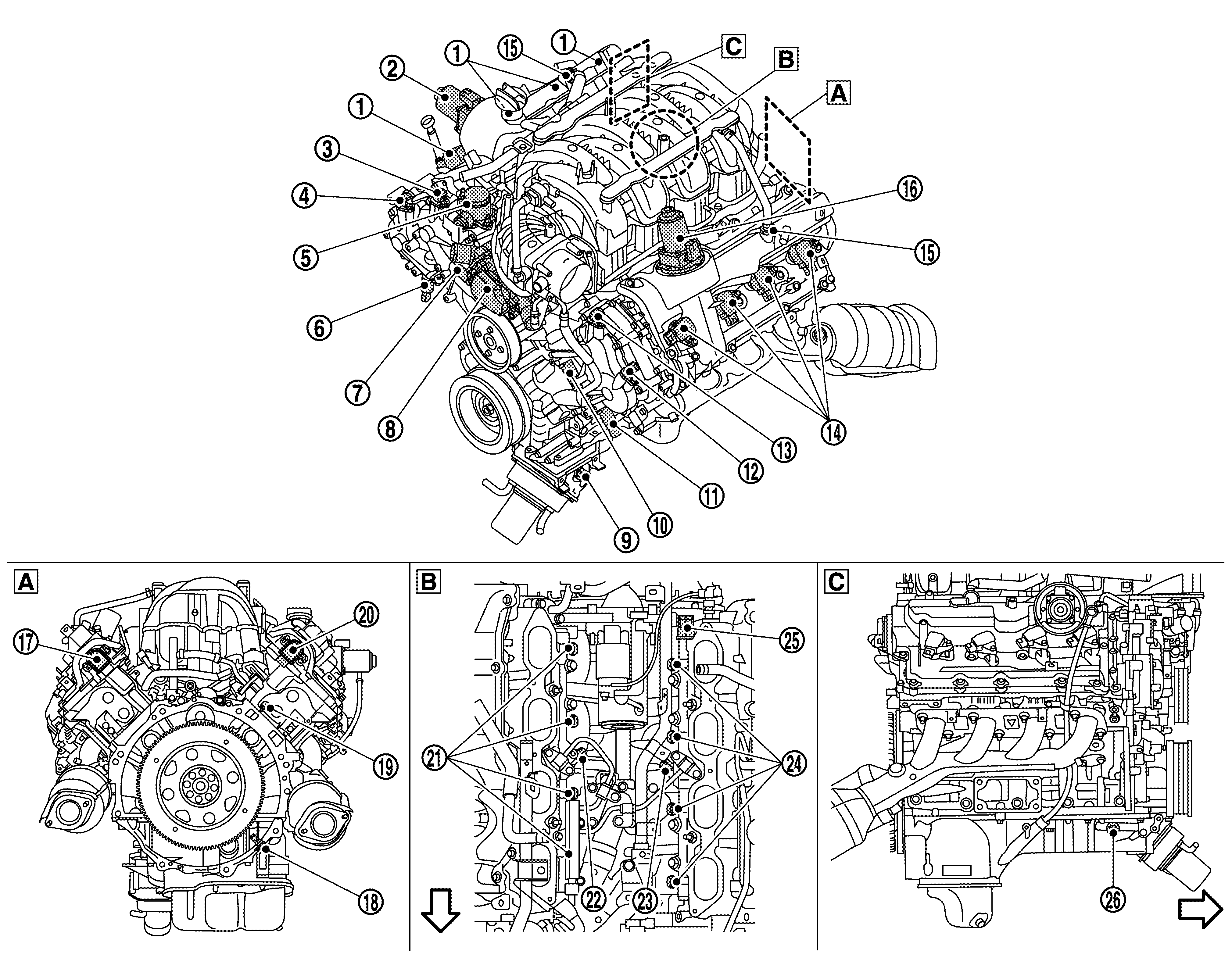

Engine Compartment
|
1. |
Ignition coil (with power transistor) and spark plug (bank 2) |
2. |
VVEL actuator motor (bank 2) |
3. |
Camshaft position sensor (bank 2) |
|
4. |
Exhaust valve timing control position sensor (bank 2) |
5. |
High pressure fuel pump |
6. |
Exhaust valve timing control solenoid valve (bank 2) |
|
7. |
Intake valve timing control solenoid valve (bank 2) |
8. |
Multi-way control valve |
9. |
Engine oil temperature sensor |
|
10. |
Intake valve timing control solenoid valve (bank 1) |
11. |
Exhaust valve timing control solenoid valve (bank 1) |
12. |
Exhaust valve timing control position sensor (bank 1) |
|
13. |
Camshaft position sensor (bank 1) |
14. |
Ignition coil (with power transistor) and spark plug (bank 1) |
15. |
Positive crankcase ventilation (PCV) valve |
|
16. |
VVEL actuator motor (bank 1) |
17. |
VVEL control shaft position sensor (bank 1) |
18. |
Crankshaft position sensor |
|
19. |
Engine coolant temperature sensor 1 |
20. |
VVEL control shaft position sensor (bank 2) |
21. |
Fuel injector (bank 2) |
|
22. |
Knock sensor (bank 2) |
23. |
Knock sensor (bank 1) |
24. |
Fuel injector (bank 1) |
|
25. |
Fuel rail pressure sensor |
26. |
Engine oil pressure sensor |
||
|
A. |
Rear view of the engine |
B. |
Top view of the engine (View with intake manifold is removed) |
C. |
Right side view of the engine |
|
|
: Engine front |
||||
