System Description

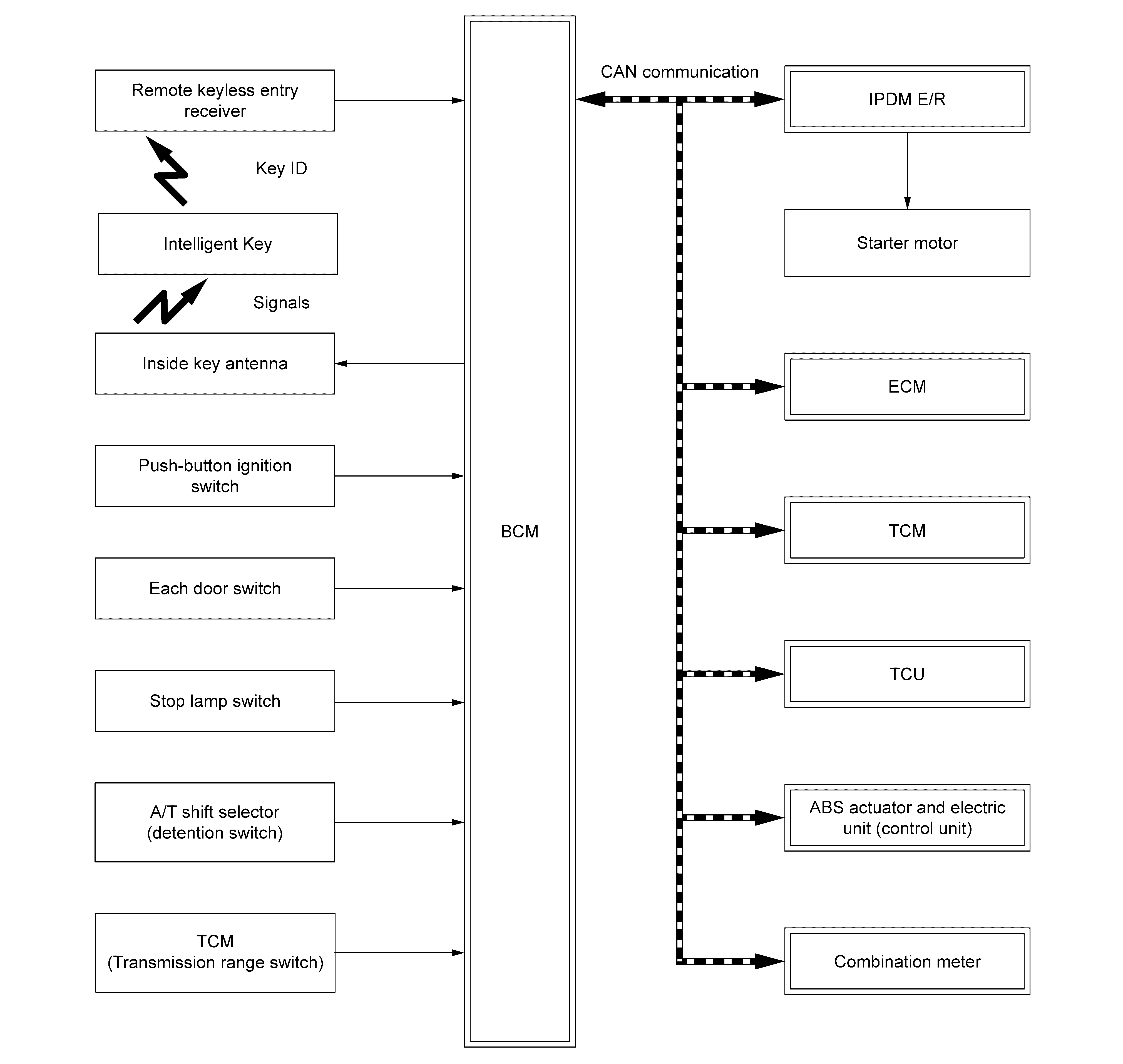

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

BCM INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Transmit unit	Signal name
ECM	CAN communication	ID verification signal Engine status signal
IPDM E/R		Push-button ignition switch status signal Starter relay status signal Starter control relay signal Detention switch signal Interlock/PNP switch signal
Combination meter		Vehicle speed signal
ABS actuator and electric unit (control unit)		Vehicle speed signal
TCM		Shift position signal
TCU		Engine start request signal
Remote keyless entry receiver	Key ID signal
Push-button ignition switch	Push switch signal
Each door switch	Door switch signal
Stop lamp switch	Stop lamp switch signal
A/T shift selector (detention switch)	P position signal
TCM	P/N position signal

Output Signal Item

Reception unit	Signal name
Combination meter	CAN communication	Key warning lamp signal
ECM		ID verification signal
Inside key antenna	Inside key antenna signal

SYSTEM DESCRIPTION

• The engine start function of Intelligent Key system makes it possible to start and stop the engine without using the key, based on the electronic ID verification. The electronic ID verification is performed between BCM and Intelligent Key when the push-button ignition switch is pressed while the Intelligent Key is within the detection area of inside key antenna.
  NOTE: The driver should carry the Intelligent Key at all times.
• Intelligent Key has 2 IDs (Intelligent Key ID and NATS ID). It can perform the door lock/unlock operation and the push-button ignition switch operation when the registered Intelligent Key is carried.
  NOTE: Refer to System Description . for any functions other than engine start function of Intelligent Key system.
• If the ID is successfully verified, when push-button ignition switch is pressed, the engine can be started.
• Up to 4 Intelligent Keys can be registered (Including the standard Intelligent Key) upon request from the customer.
• For registration of Intelligent Keys, perform procedure according to the instructions displayed on the CONSULT monitor.

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder (the chip for NATS ID verification) is integrated into the Intelligent Key. (For the conventional models, it is integrated into the mechanical key.) Therefore, ID verification cannot be performed by mechanical key only.

In that case, NATS ID verification can be performed when Intelligent Key backside is contacted to push-button ignition switch while brake pedal is depressed. If verification result is OK, engine can be started.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

1. When the push-button ignition switch is pressed, the BCM activates the inside key antenna and transmits the request signal to the Intelligent Key.
2. The Intelligent Key receives the request signal and transmits the Intelligent Key ID signal to the BCM.
3. BCM receives the Intelligent Key ID signal via remote keyless entry receiver and verifies it with the registered ID.
4. BCM turns ACC relay ON and transmits the ignition power supply ON signal to IPDM E/R.
5. IPDM E/R turns the ignition relay ON and starts the ignition power supply.
6. IPDM E/R turns the starter control relay ON for engine starting in advance.
7. BCM detects the selector lever position and brake pedal operation condition.
8. BCM transmits the starter request signal to IPDM E/R and turns the starter relay in IPDM E/R ON if BCM judges that the engine start condition* is satisfied.
9. Power supply is supplied through the starter relay and the starter control relay to operate the starter motor.
   CAUTION:

   If a malfunction is detected in the Intelligent Key system, the "Intelligent Key system malfunction display" display on information display in combination meter. At that time, the engine cannot be started.

10. When BCM receives feedback signal from ECM indicating that the engine is started, the BCM transmits a stop signal to IPDM E/R and stops cranking by turning OFF the starter motor relay. (If engine start is unsuccessful, cranking stops automatically within 5 seconds.)

*: For the engine start condition, refer to "IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION".

OPERATION RANGE

Engine can be started when Intelligent Key is inside the vehicle. However, sometimes engine may not start when Intelligent Key is on instrument panel or in glove box.

ENGINE START OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO PUSH-BUTTON IGNITION SWITCH

When Intelligent Key battery is discharged, NATS ID verification between transponder in Intelligent Key and BCM is performed when Intelligent Key backside is contacted to push-button ignition switch while brake pedal is depressed. If the verification result is OK, engine can be started.

IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION

The ignition switch position can be changed by the following operations.

Vehicle speed: less than 4 km/h (2.5 MPH)

Power supply position	Condition		Push-button ignition switch operation frequency
	Selector lever	Brake pedal operation condition
OFF → ACC	-	Not depressed	1
OFF → ACC → ON	-	Not depressed	2
OFF → ACC → ON → OFF	-	Not depressed	3
OFF → START ACC → START ON → START	P or N position	Depressed	1
Engine is running → OFF	-	-	1

Vehicle speed: 4 km/h (2.5 MPH) or more

Power supply position	Condition		Push-button ignition switch operation frequency
	Selector lever	Brake pedal operation condition
Engine is running → ACC	-	-	Emergency stop operation
Engine stall return operation while driving	N position	Not depressed	1

Emergency stop operation

Emergency engine stop is activated when any of the following operation is performed.

• Press and hold the push-button ignition switch for 2 seconds or more.
• Press the push-button ignition switch 3 times or more within 1.5 seconds.

REMOTE ENGINE START FUNCTION

Remote engine start function enables engine to be started from vehicle outside by operating REMOTE ENGINE START button of Intelligent Key or mobile phone.

In the same way as the Intelligent Key, the engine can be started by operating a cellular phone using the Telematics system function. For details: Refer to System Description .

Engine Start Procedures

The following operation enables the engine to be started.

• Press LOCK button of Intelligent Key, and then within 5 seconds, press and hold REMOTE ENGINE START button of Intelligent Key for 2 seconds or more.
• Perform engine start operation using a cellular phone.

Engine does not start while the vehicle is in the following status.

• All doors are UNLOCK or any door is open.
• Hood is open.
• A registered Intelligent Key is in passenger room.
• Shift position is other than P.
• Vehicle security alarm is in operation
• Hazard lamp is in operation.

Engine Stop Procedures

The following operation enables the engine to be stopped.

• Press REMOTE ENGINE START button of Intelligent Key.
• Perform engine stop operation using a cellular phone.
• Push-button ignition switch is operated.

Engine stops when the vehicle status changes to the following status

• 10 minutes are passed since engine start.
• Hood is open.
• Shift position is shifted to a position other than P.
• Vehicle security alarm starts to operate.

Operation Area

The engine can be started when the vehicle is under the following conditions.

• The remote engine start operating range is approximately 60 m (197 ft.) from the vehicle.
• The vehicle is within the communication range of the Infiniti Connection™ data center.
