System Description

DESIGN/PURPOSE

Warn the driver that the fuel filler cap is left opened.

Symbol	Message
Courtesy of NISSAN NORTH AMERICA, INC.	Loose Fuel Cap

BULB CHECK

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For the operation for CAN communications blackout or abnormal signal reception, Refer to Fail-safe .

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: For details about the fuel filler cap warning system, Refer to System Description .

SIGNAL PATH

ECM find out that the fuel filler cap is left opened and transmit the fuel filler cap warning display signal to the combination meter.
The combination meter show or hide the fuel filler cap warning based on the received fuel filler cap warning display signal.

LIGHTING CONDITION

When all of the following conditions for at least 5 seconds are satisfied:

SHUTOFF CONDITION

When any of the following conditions is satisfied:

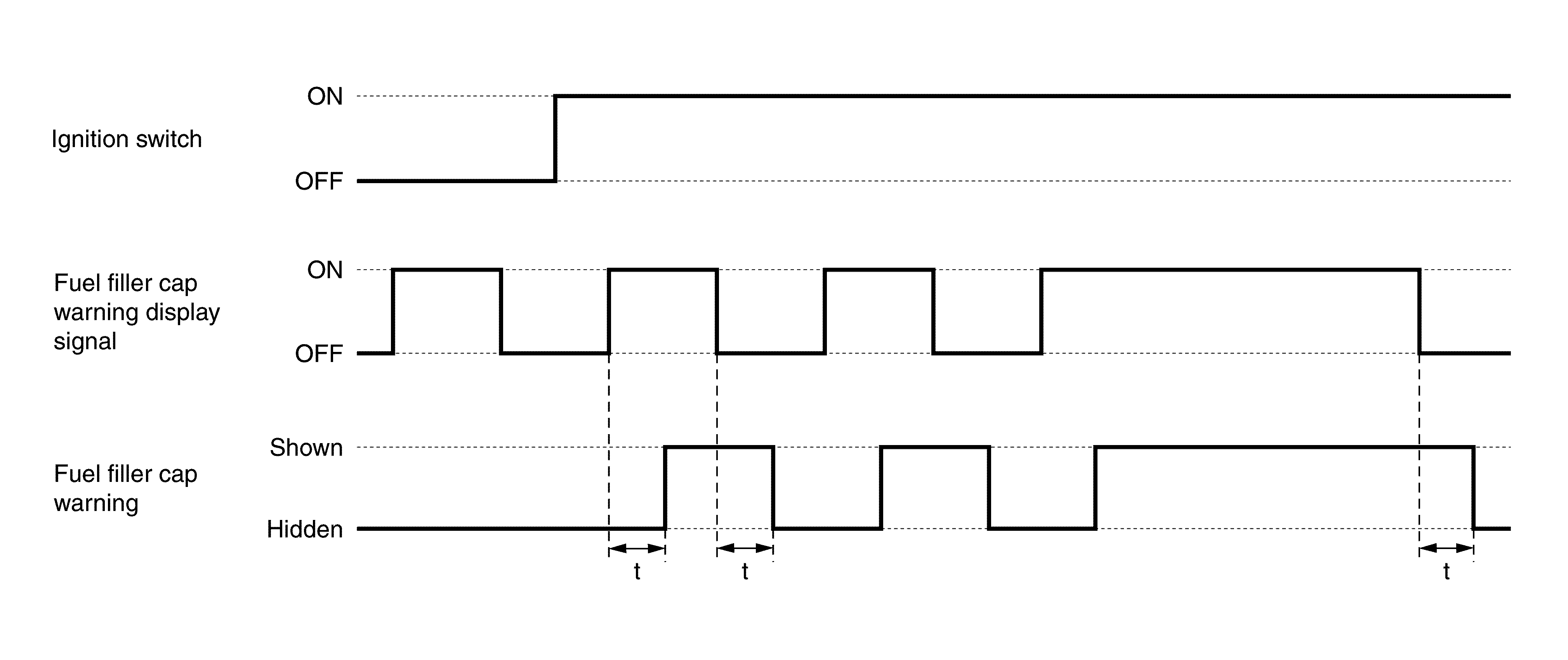

TIMING CHART

Courtesy of NISSAN NORTH AMERICA, INC.

t: 100ms
