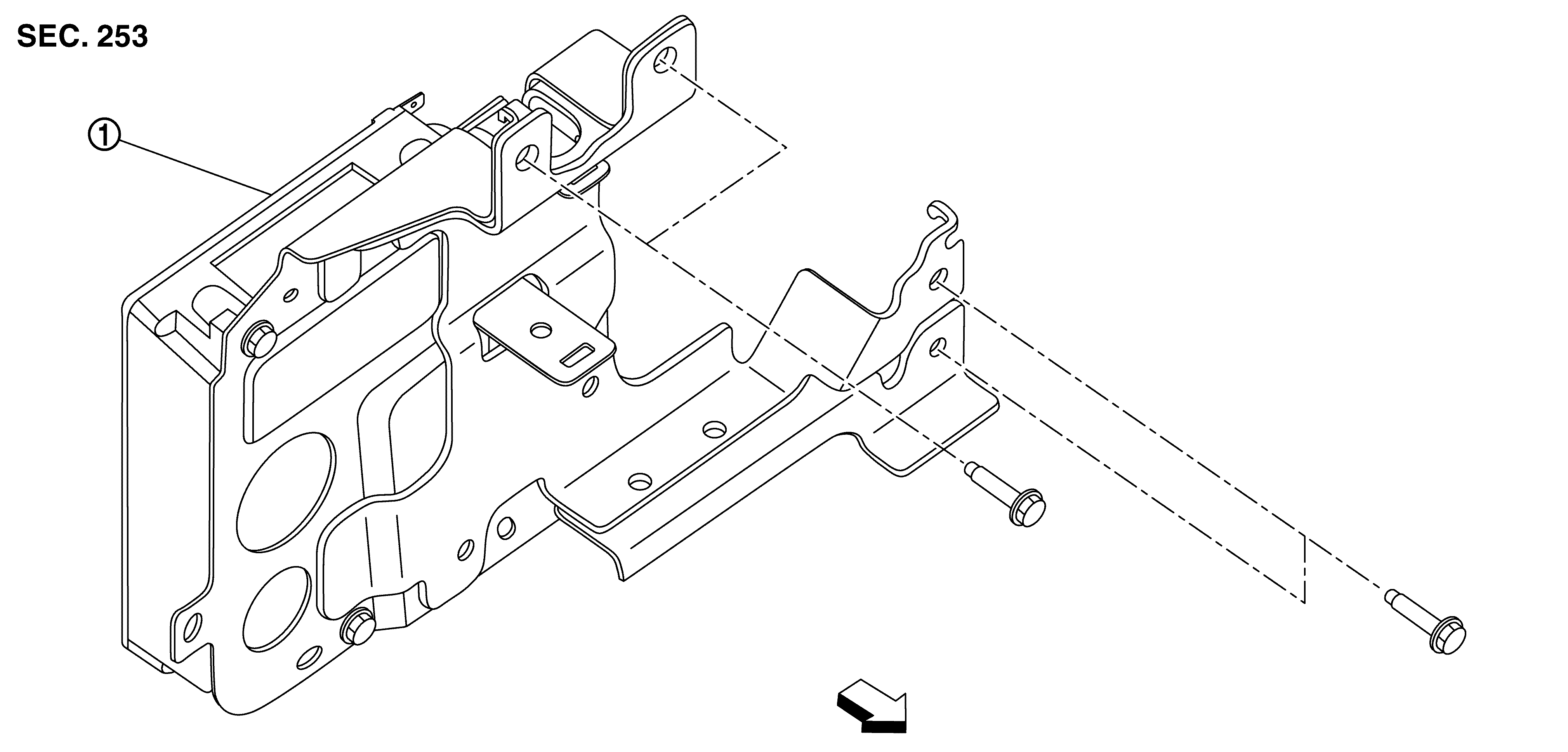

Exploded View

GNSDB149343Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering angle sub control module
SYMBOL : Vehicle front
