Exploded View

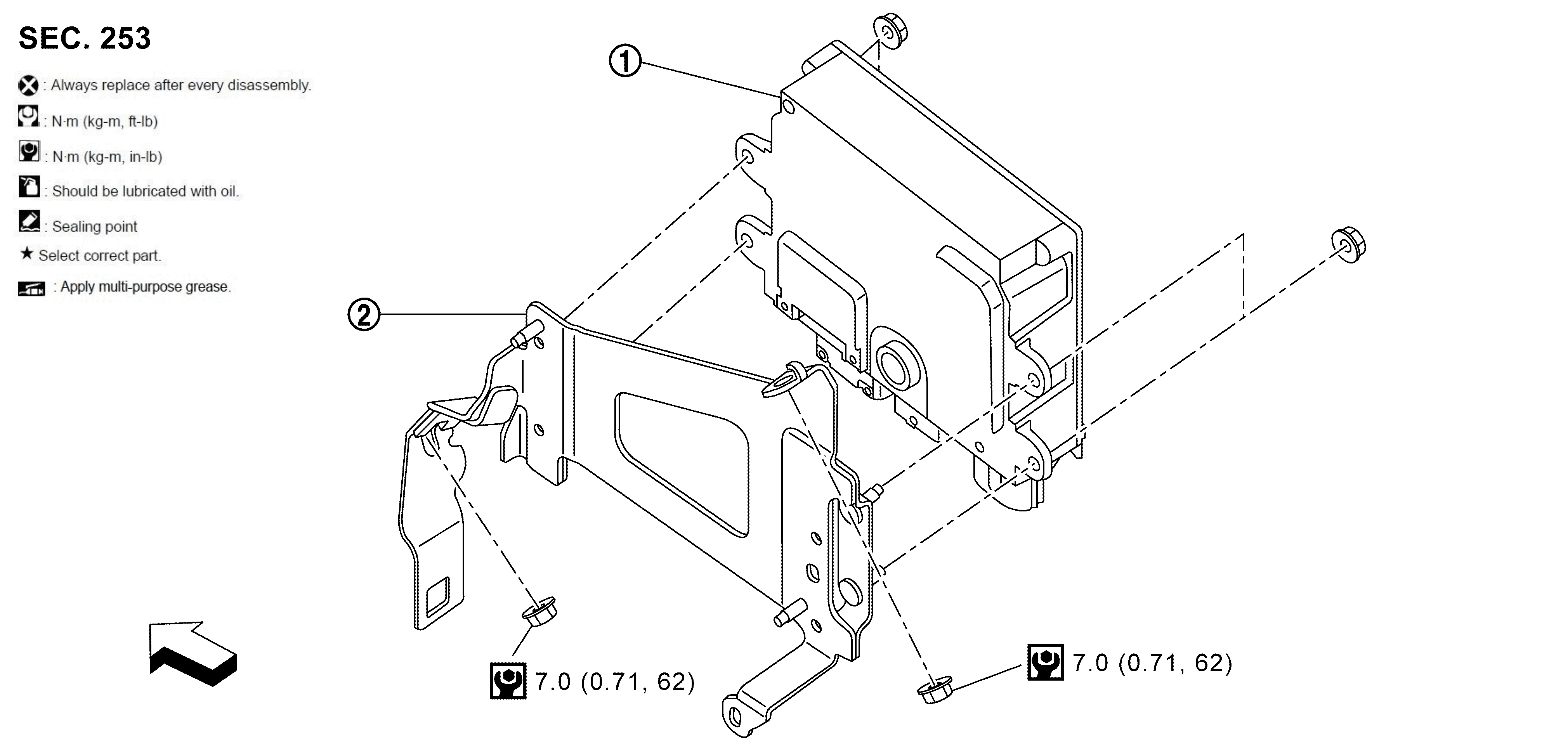

Fig 1: Steering Force Control Module with Torque Specifications
GNSDB149016Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering force control module SYMBOL Bracket
SYMBOL : Vehicle front
