FUEL PUMP CONTROL MODULE (FPCM) : Removal and Installation

REMOVAL

1. Remove the trunk side finisher LH. Refer to TRUNK SIDE FINISHER : Removal and Installation .

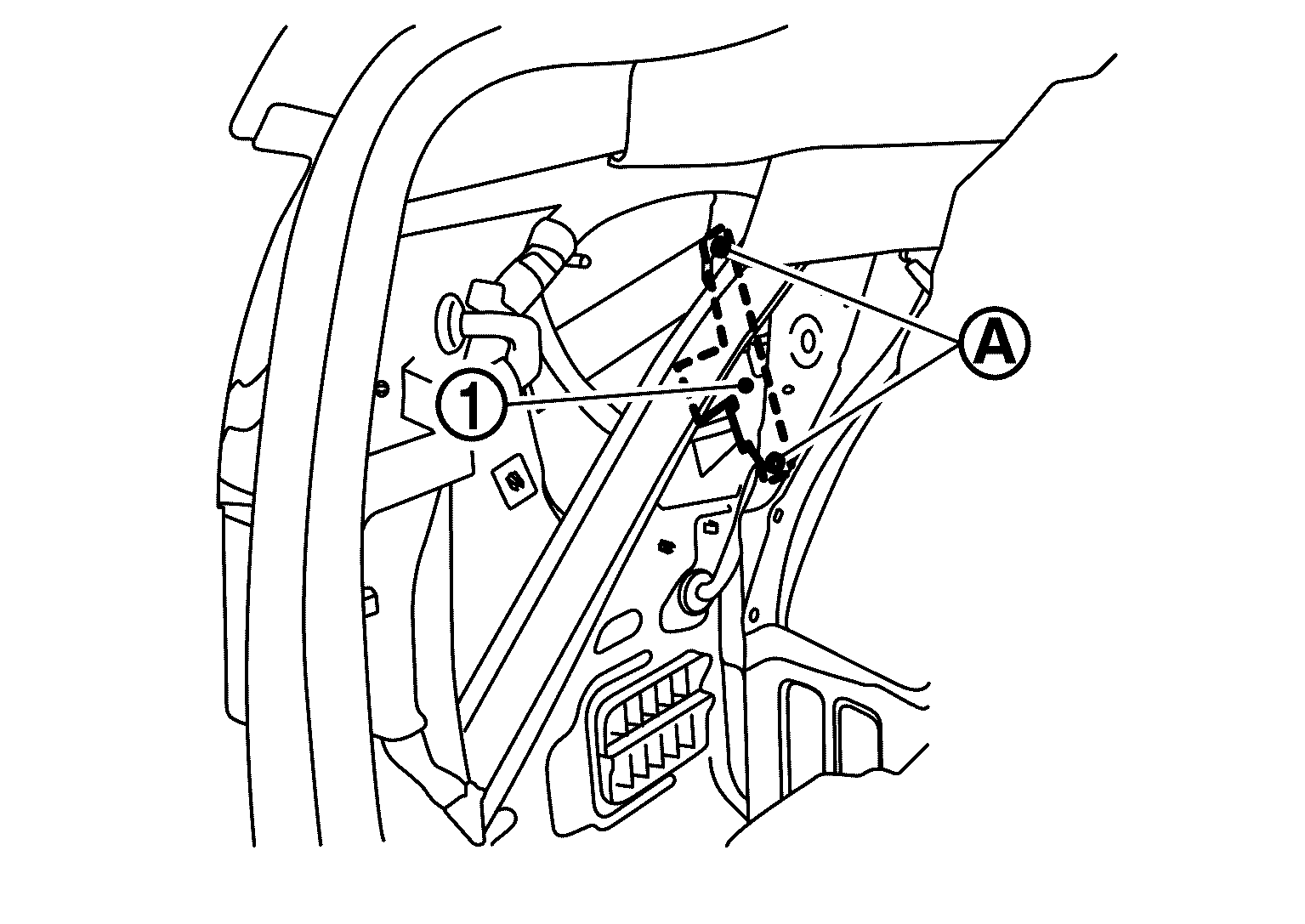

2. Disconnect fuel pump control module (FPCM) connector.

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Remove mounting bolts and then remove fuel pump control module (FPCM) .

INSTALLATION

Install in the reverse order of removal.
