Component Description

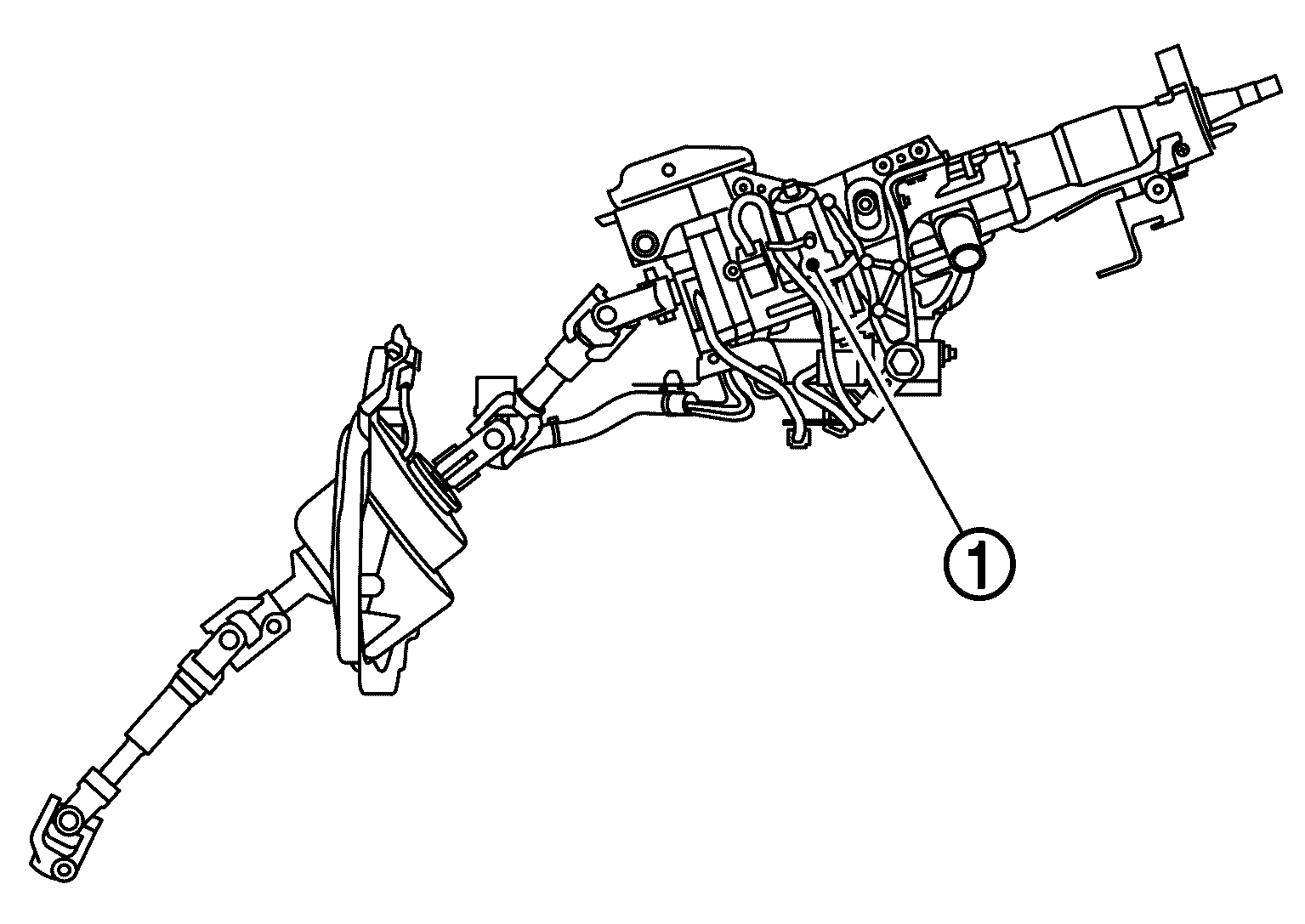

Steering force actuator mainly consists of the steering force motor, the force motor angle sensor, and the force motor temperature sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

Steering Force Motor

Steering force motor generates a torque equivalent to the reaction force from the road surface by the traction current from the steering force control module.

Force Motor Angle Sensor

Force motor angle sensor detects the angle of the steering force motor and outputs to the steering force control module by converting into voltage.

Force Motor Temperature Sensor

Force motor temperature sensor detects the temperature of the steering force motor and outputs to the steering force control module by converting into voltage.
