Component Inspection

1. Turn ignition switch OFF.
2. Remove fuel injector relay.

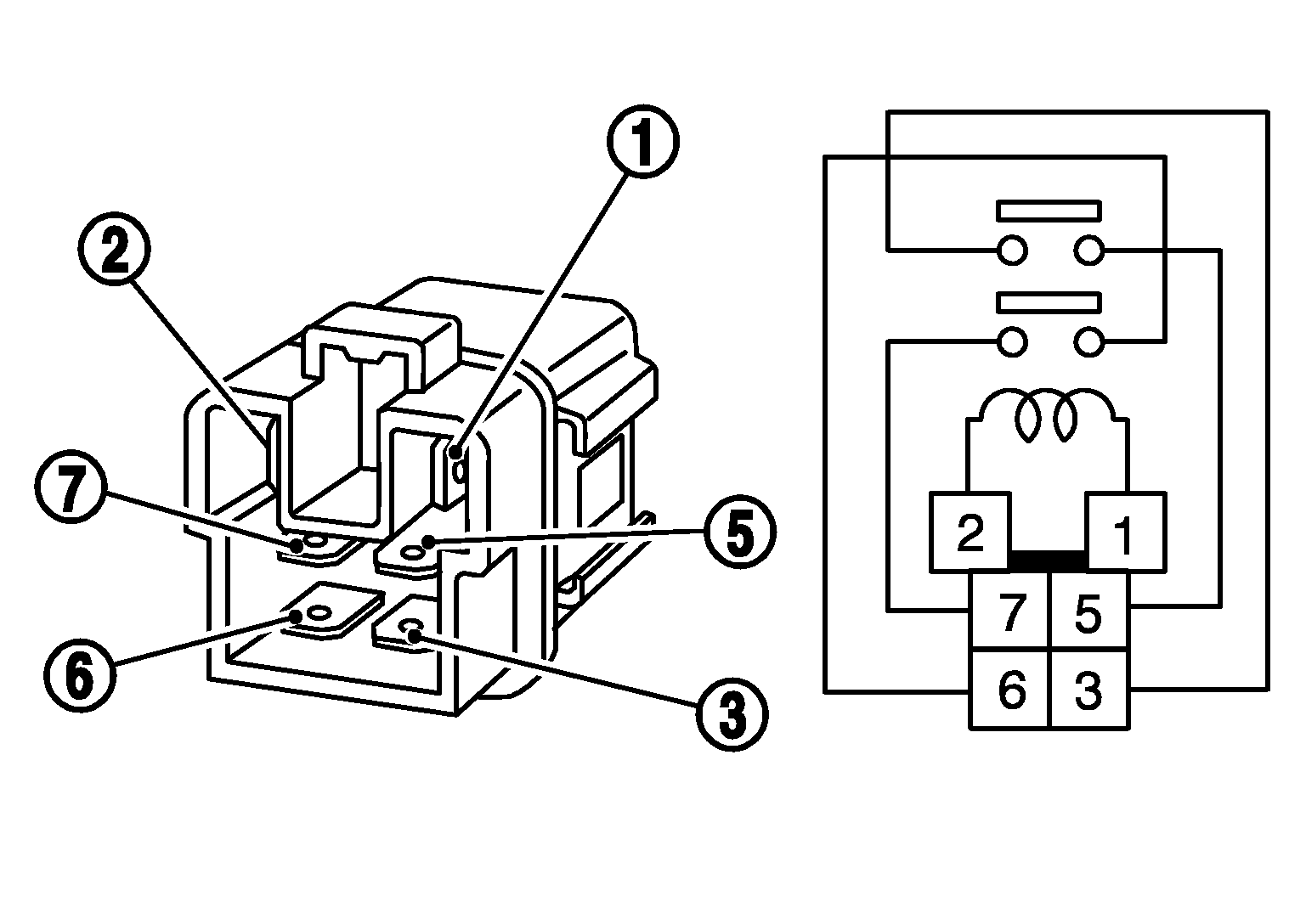

3. Check the continuity between fuel heater relay terminals as per the following conditions.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Fuel injector relay		Conditions	Continuity
   +	-
   Terminal
   3	5	12 V direct current supply between terminals 1 and 2	Existed
   		No current supply	Not existed
   6	7	12 V direct current supply between terminals 1 and 2	Existed
   		No current supply	Not existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace fuel injector relay.
