Idle Speed: Inspection

With CONSULT Check idle speed in "DATA MONITOR" mode of "ENGINE" using CONSULT.

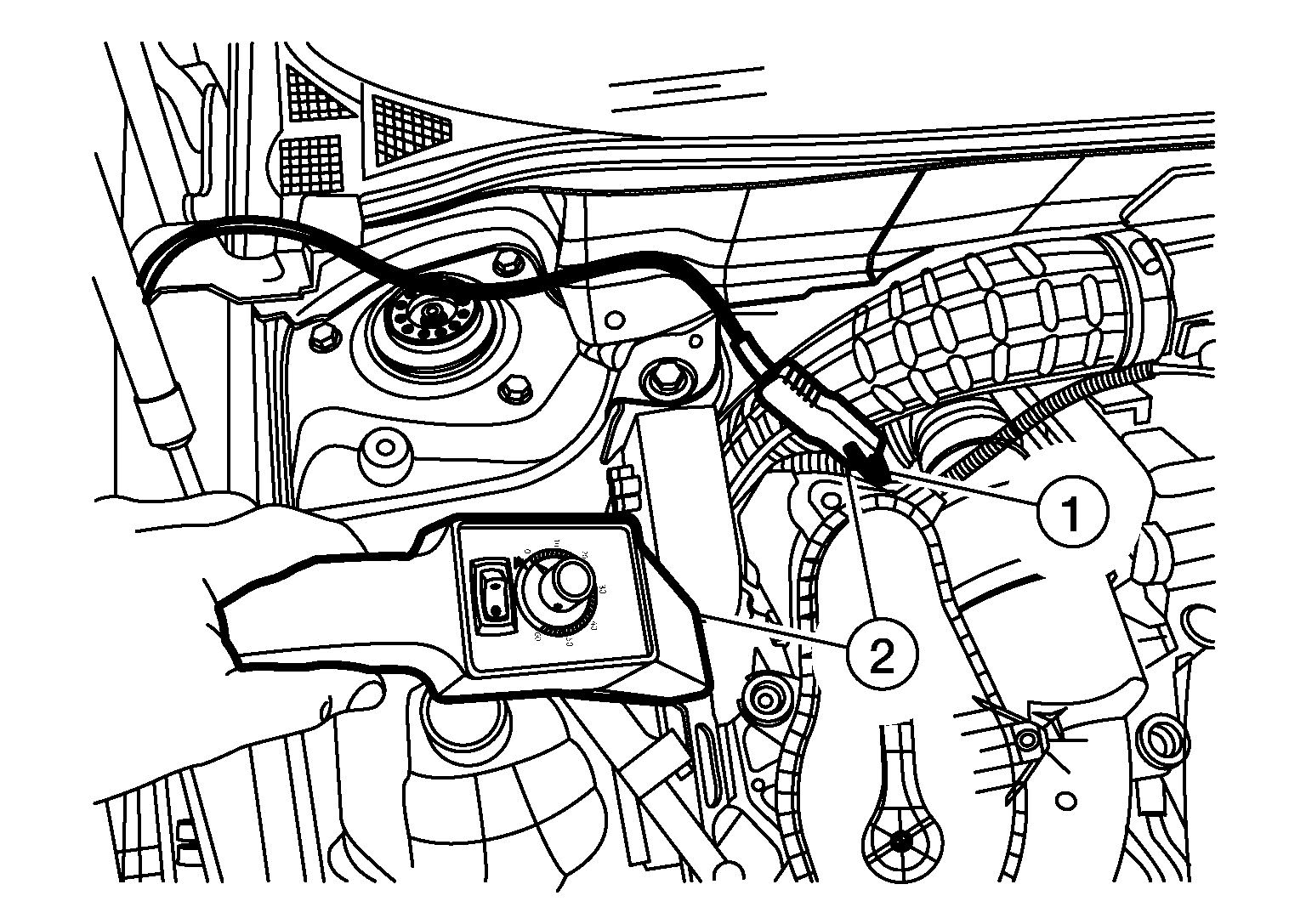

Without CONSULT Attach induction type (current detection type) rev counter (A) to loop wire as shown below and check idle speed.

Courtesy of NISSAN NORTH AMERICA, INC.
