Component Location

GNSDB138457Courtesy of NISSAN NORTH AMERICA, INC.

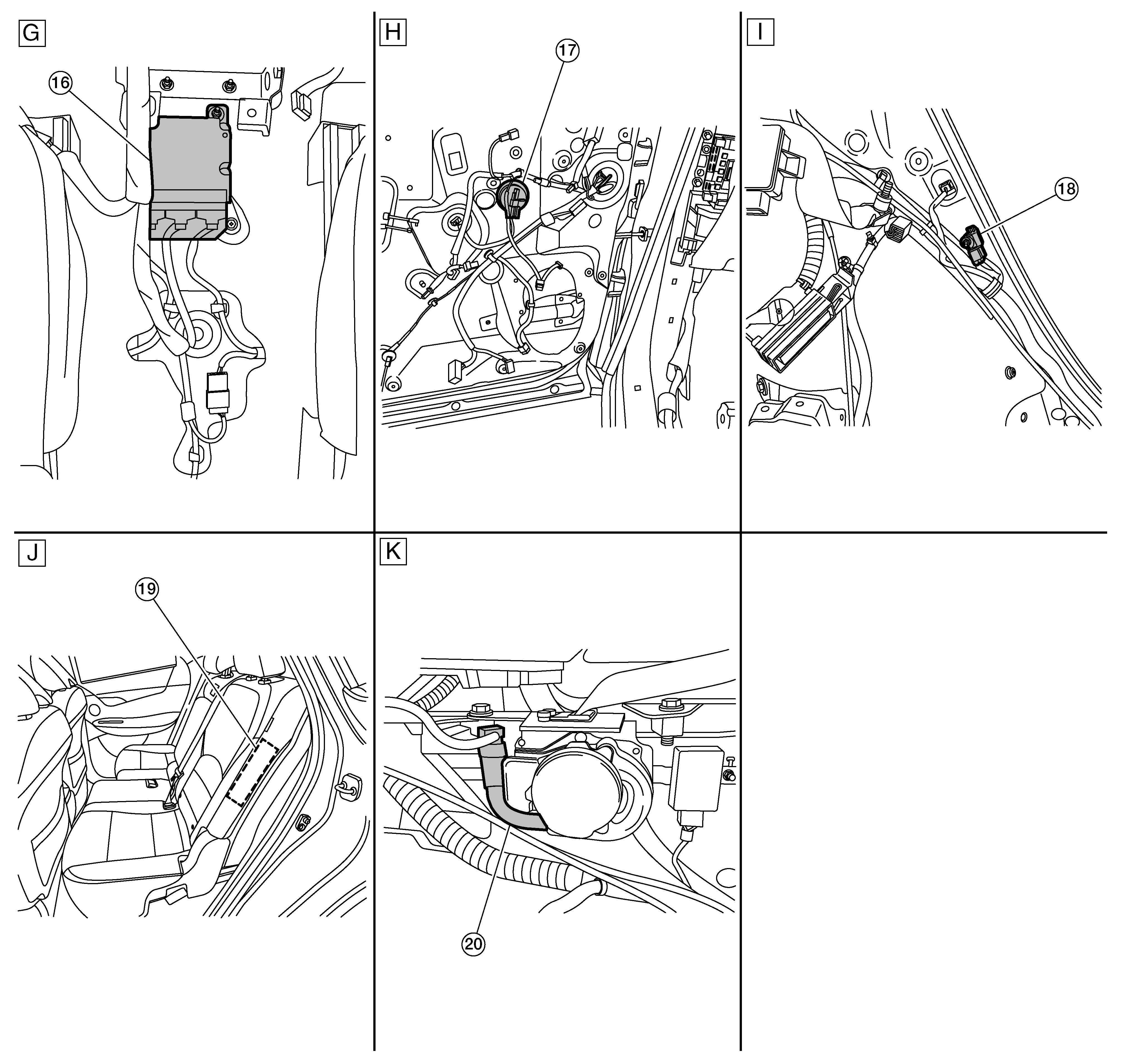

GNSDB138648Courtesy of NISSAN NORTH AMERICA, INC.
A. View with headliner removed B. RH front passenger seat (view with front RH seat removed from vehicle) C. Occupant classification system (view with front RH seat removed from vehicle)
D. View with lower B-pillar finisher removed E. View with left front door panel removed F. Radiator core support assembly
G. View with center console removed H. View with driver's door finisher removed I. View with LH lower luggage side finisher removed
J. Left rear seat area K. View with LH luggage side finisher removed
No. Component Function
1. Rear seat belt buckle switch (center) The rear seat belt buckle switch (center) provides the rear seat belt buckle switch (center) signal to the air bag diagnosis sensor unit.
2. Rear seat belt buckle switch RH The rear seat belt buckle switch RH provides the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
3. Front passenger air bag module Refer to Front Passenger Air Bag Module .
4. Right knee air bag module Refer to Knee Air Bag Module .
5. Left knee air bag module Refer to Knee Air Bag Module .
6. Driver air bag module Refer to Driver Air Bag Module .
7. Rear seat belt buckle switch LH The rear seat belt buckle switch LH provides the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit.
8. Side curtain air bag module RH (LH similar) Refer to Side Curtain Air Bag Module .
9. Front RH side air bag module (LH similar) Refer to Front Side Air Bag Module .
10. Front seat belt buckle switch RH (LH similar) The front seat belt buckle switch RH provides the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
11. Occupant classification system control unit Refer to System Description .
12. Occupant classification system sensors Refer to System Description .
13. Front RH seat belt pre-tensioner (LH similar) Refer to Front Seat Belt Pre-Tensioner .
14. Front side air bag satellite sensor LH (RH similar) Refer to Front side air bag satellite sensor .
15. Crash zone sensor Refer to Crash Zone Sensor .
16. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
17. Front door satellite sensor LH (RH similar) Refer to Front Door Satellite Sensor .
18. Rear side air bag satellite sensor LH (RH similar) Refer to Rear Side Air Bag Satellite Sensor .
19. Rear LH side air bag module (RH similar) Refer to Rear Side Air Bag Module .
20. Rear LH seat belt pre-tensioner (shoulder belt) (RH similar) Refer to Rear Seat Belt Pre-Tensioner .
