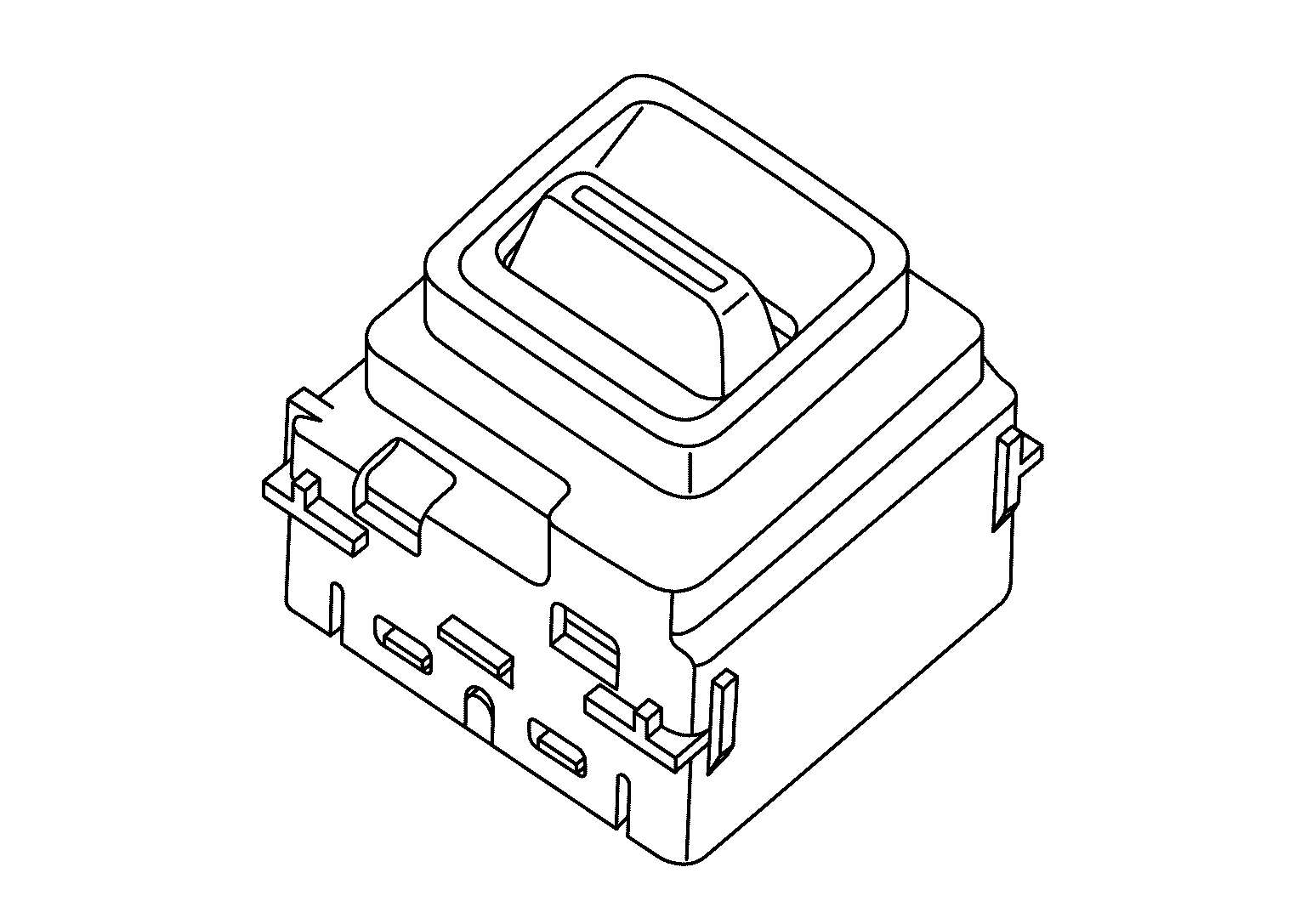

Drive Mode Select Switch

Drive mode select switch is set on the upper part of the center console.

Courtesy of NISSAN NORTH AMERICA, INC.

FUNCTIONS WITHIN THE SYSTEM

• The drive mode selector changes the vehicle mode of the power train, chassis function, driver assistant system.

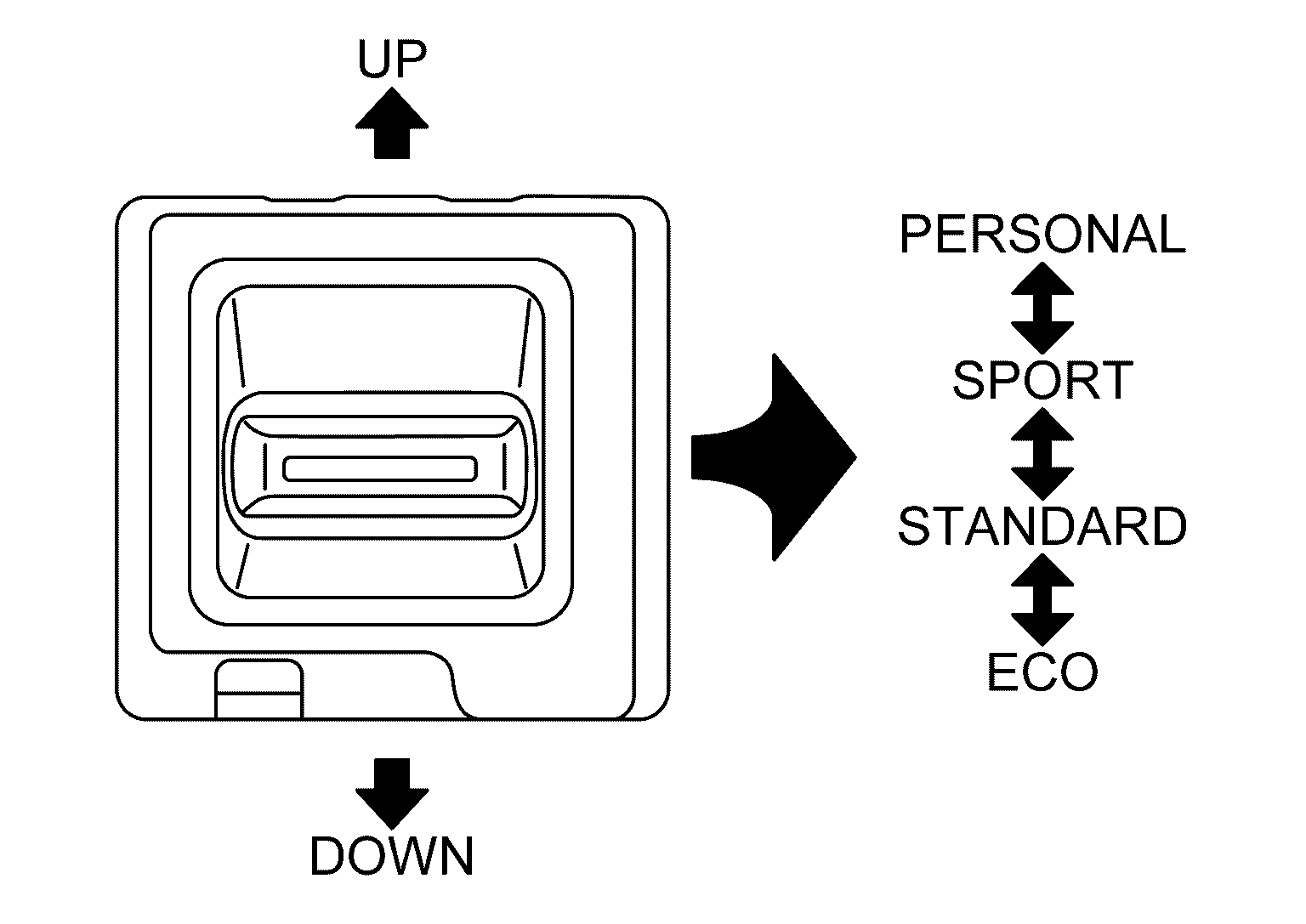

• The drive mode select switch is connected to the chassis control module and allows the driver to select a mode from PERSONAL, SPORT, STANDARD, and ECO by the up/down operation.

Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Drive mode select switch detected the mode status.

INDIVIDUAL OPERATION

Transmit the drive mode switch signal to chassis control module.

COMPONENT LOCATION

Refer to Component Location .
