System Description

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer, KEY warning lamp and information display in combination meter:

• Intelligent Key system malfunction
• OFF position warning
• P position warning
• Take away warning
• Door lock operation warning
• Engine start information
• Intelligent Key low battery warning
• Key ID warning
• Key ID verification information

OPERATION CONDITION

Once the following condition from below is established, alert or warning is executed:

Warning/Information functions		Operation procedure
Intelligent Key system malfunction		When a malfunction is detected on BCM, "KEY" warning lamp illuminates.
OFF position warning	For internal	When below condition is satisfied Intelligent Key backside is contacted to ignition switch while brake pedal is depressed and ignition switch is LOCK or OFF (When the Intelligent Key battery is discharged) Door switch (driver side): ON (Door is open)
	For external	OFF position warning (For internal) is in active mode, driver side door is closed. NOTE: OFF position (For external) active only when each of the sequence occurs as below: P position warning → ACC warning → OFF position warning (For internal) → OFF position warning (For internal)
P position warning	For internal	Shift position: Except P (Park) position Engine is running to stopped (ignition switch is ON to OFF)
	For external	Warning is activated when driver door is closed from the open position while the P (Park) position warning (for inside vehicle) is ON.
Take away warning	Door is open to close	Ignition switch: Except Lock position Door switch: ON to OFF (Door is open to close) Intelligent Key cannot be detected inside the vehicle
	Door is open	Ignition switch: Except Lock position Door switch: ON (Door is open) Key ID verification every 5 seconds when registered Intelligent Key cannot be detected inside the vehicle
	Push-button ignition switch operation	Ignition switch: Except Lock position Press push-button ignition switch Intelligent Key cannot be detected inside the vehicle
Door lock operation warning		When door lock operation is requested while door lock operating condition of door request switch or Intelligent Key are not satisfied
Engine start information	Ignition switch is ON position	Ignition switch: ON position Shift position: P (Park) position Engine is stopped
	Ignition switch is except ON position	Ignition switch: Except ON position Shift position: P (Park) position Intelligent Key can be detected inside the vehicle
Intelligent Key low battery warning		When Intelligent Key is low battery, BCM is detected after ignition switch is placed in the ON position
Key ID warning		When registered Intelligent Key cannot be detected inside the vehicle after ignition switch is placed in the ON position
Key ID verification information		When registered Intelligent Key cannot be detected inside the vehicle Intelligent Key battery is discharged When NATS antenna amp cannot be detected NATS ID

WARNING METHOD

The following table shows the alarm or warning methods with chime:

Warning/Information functions		"KEY" warning lamp	Information display(combination meter)	Warning chime
				Combination meter buzzer	Intelligent Key warning buzzer
Intelligent Key system malfunction		Indicate	-	-	-
OFF position warning	For internal	-	-	Activate	-
	For external	-	-	-	Activate

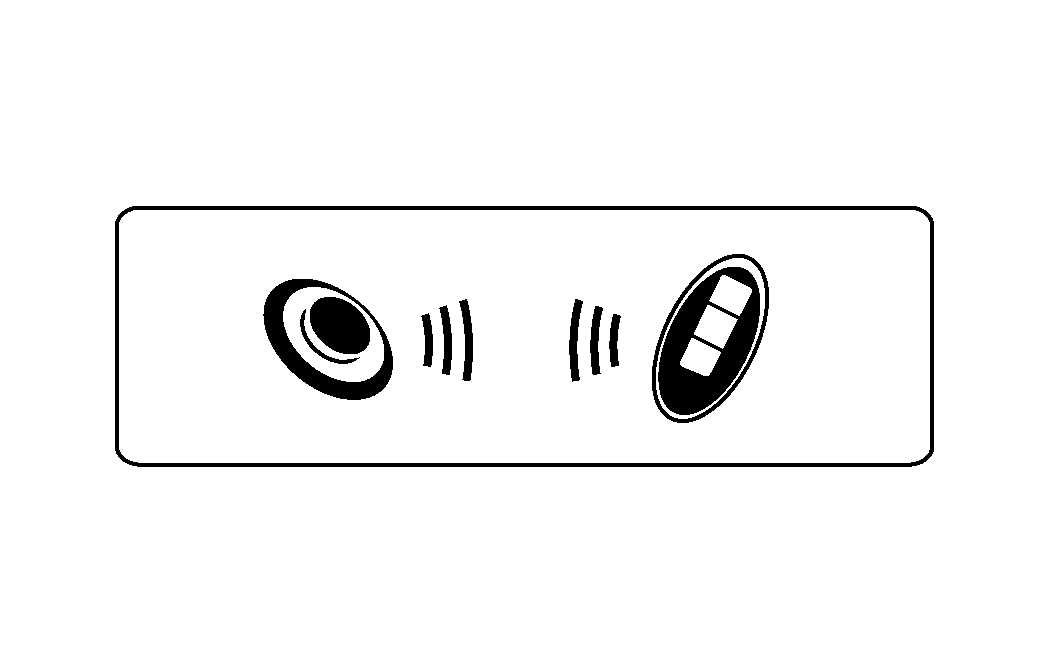

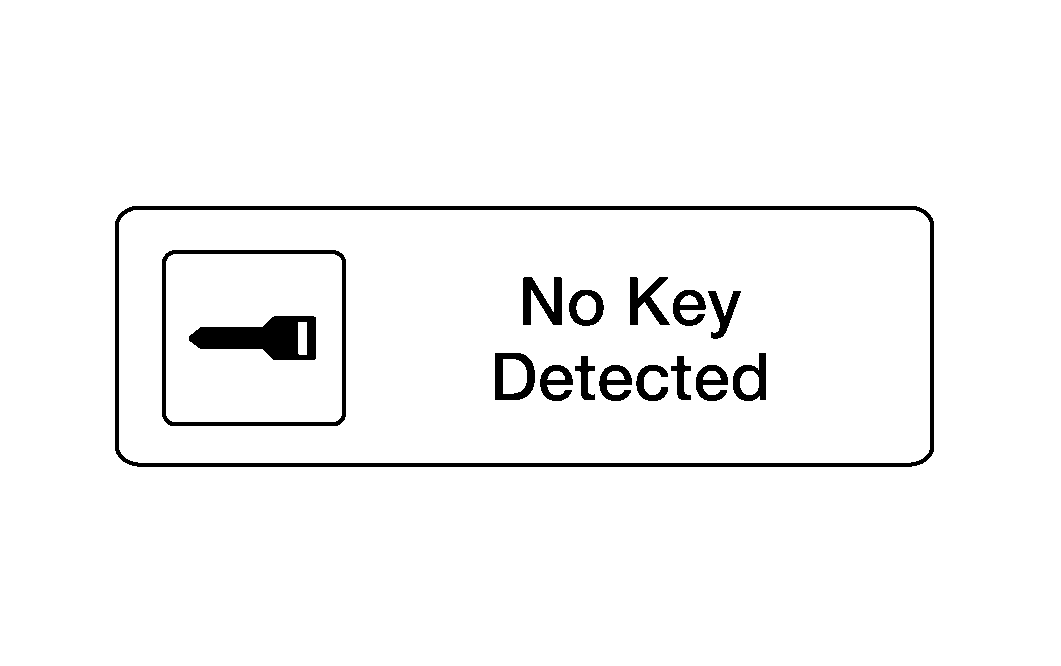

Take away warning	Door is open to close	-	Courtesy of NISSAN NORTH AMERICA, INC.	Activate	Activate
	Door is open			-	-
	Push-button ignition switch operation			Activate	-
Door lock operation warning	Request switch operation	-	-	-	Activate
	Intelligent Key	-	-	-	Activate

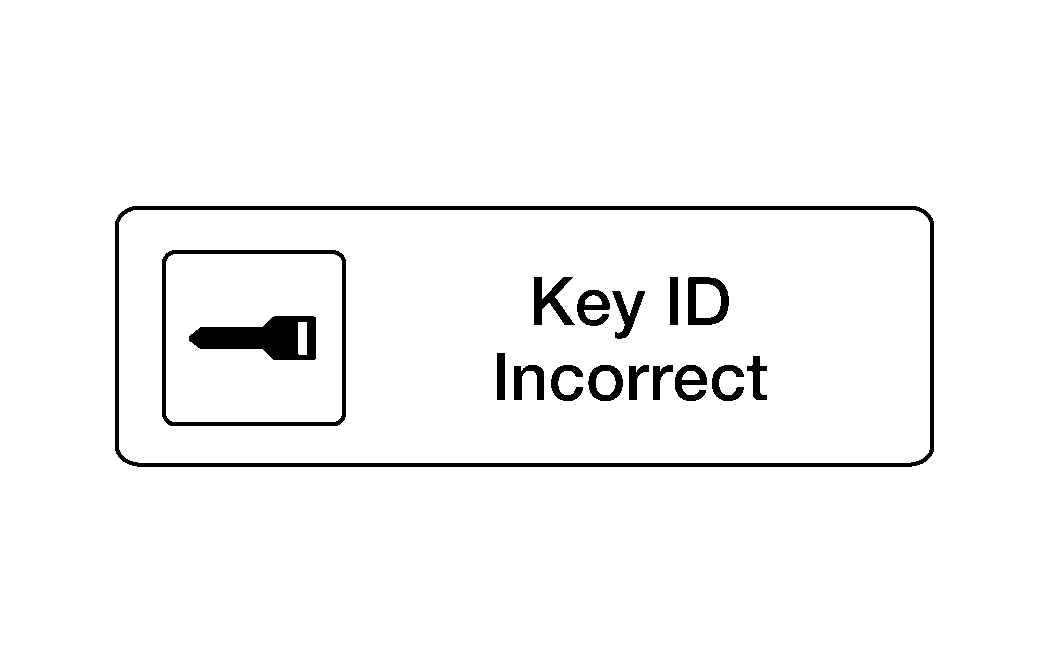

Key ID warning		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-

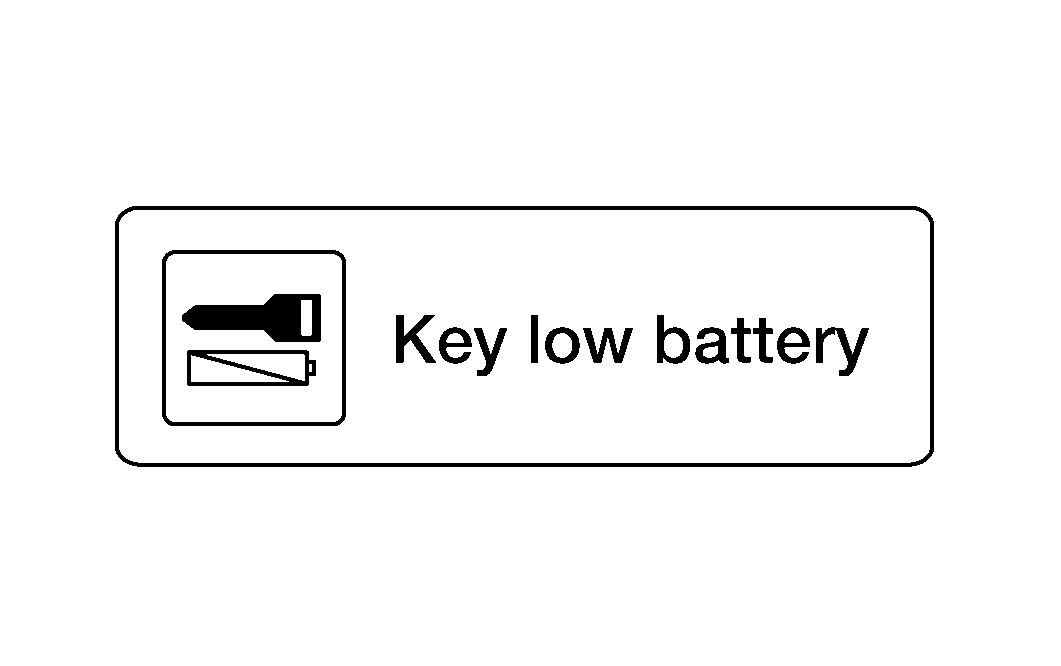

Intelligent Key low battery warning		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-
Key ID verification information		-	Courtesy of NISSAN NORTH AMERICA, INC.	-	-

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.
