Switch Name and Function

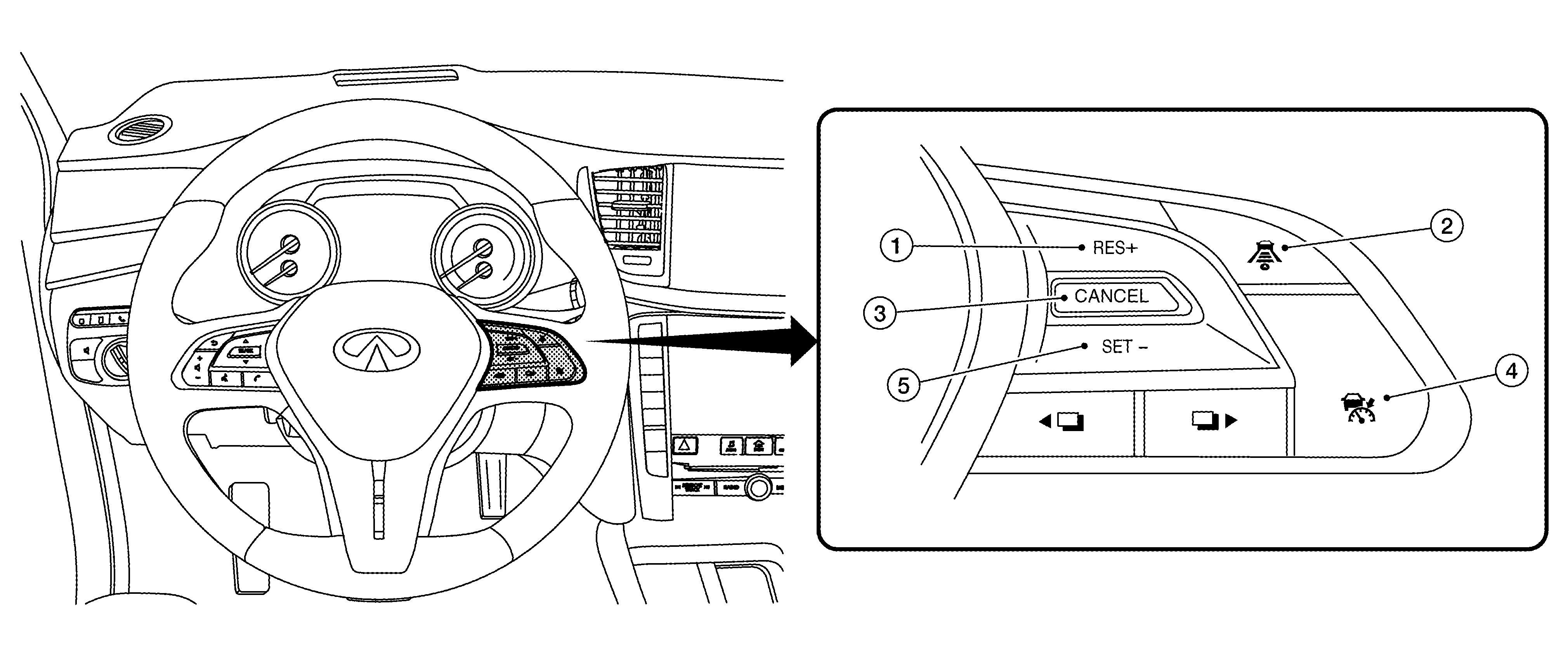

GNSDB138724Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1 RESUME + switch Resumes set speed or increases speed incrementally:
  • Push and hold the switch to increase the set speed by 5 km/h (5 MPH).
  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH).
2 DISTANCE switch Changes the following distance from: Long, Middle, Short.
3 CANCEL switch Deactivates the system without erasing the set speed.
4 MAIN switch Master switch to activate the system (Press for less than 1.5 seconds).
5 SET - switch Sets desired cruise speed or reduces speed incrementally:
  • Push and hold the switch to decrease the set speed by 5 km/h (5 MPH).
  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH).
NOTE: SYMBOL The minimum set speed is 32 km/h (20 MPH).
