Menu Displayed by Pressing Each Switch

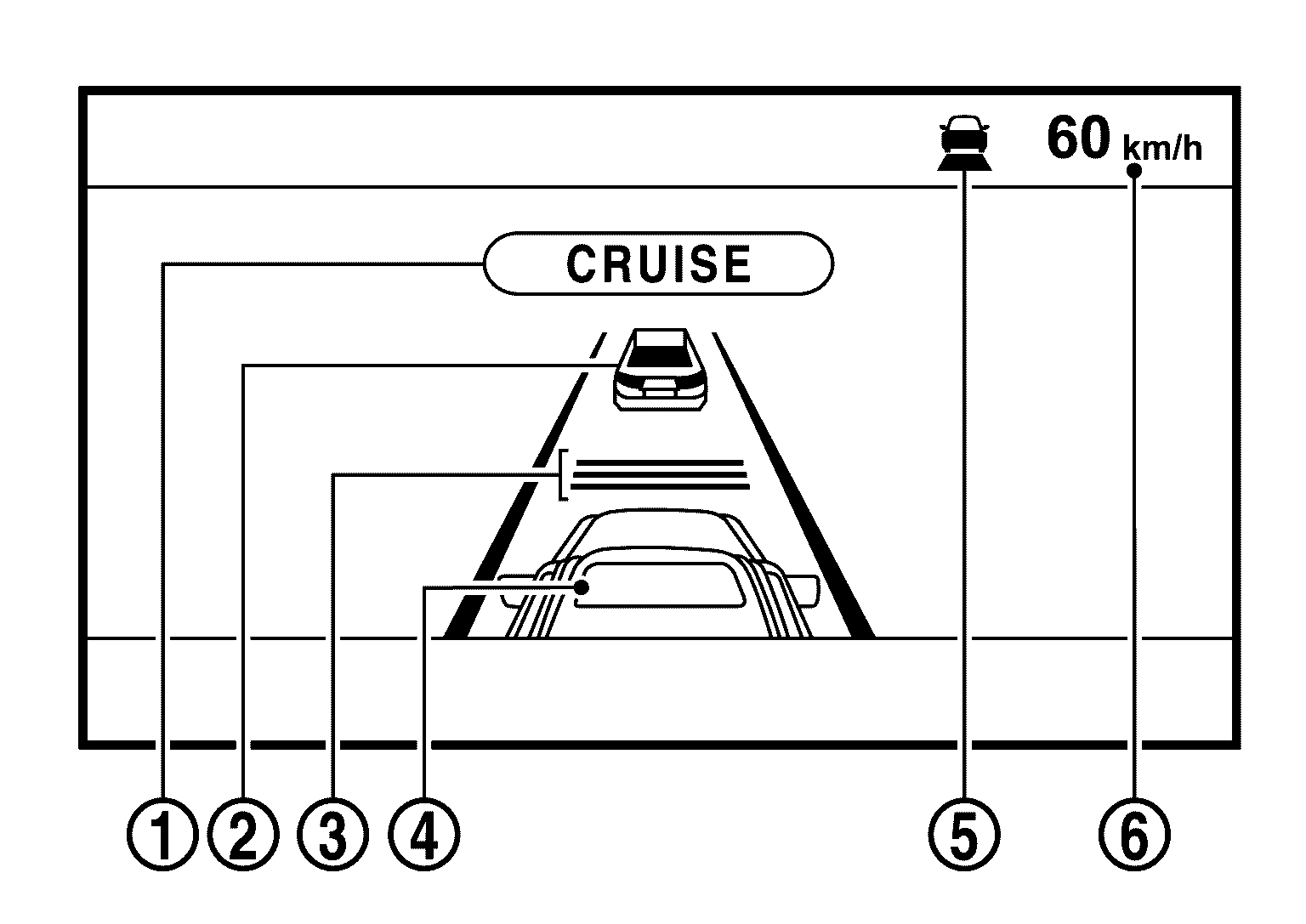

ICC SYSTEM DISPLAY (ON THE INFORMATION DISPLAY)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	MAIN switch indicator	Indicates that the MAIN switch is ON (ICC system ON)
	Vehicle ahead detection indicator	Indicates whether it detects a vehicle ahead
	Set distance indicator	Indicates the selected distance between vehicles set with the DISTANCE switch
	Own vehicle indicator	Indicates the own vehicle
	ICC system ON indicator (Gray)	Indicates that Main switch is ON
	ICC system set indicator (Green)	Indicates that cruising speed is set
	ICC system warning (Yellow)	Indicates that if there is a malfunction in the ICC system
	Set vehicle speed indicator	Indicates the set vehicle speed

SYSTEM CONTROL CONDITION DISPLAY

Quickly push (less than 1.5 seconds) and release the MAIN switch ON. The MAIN switch indicator (cruise indicator), set distance indicator, own vehicle indicator, and set vehicle speed indicator come on and ICC system is set to a standby state.

Condition			Display on combination meter
Condition			Upper part	Middle part

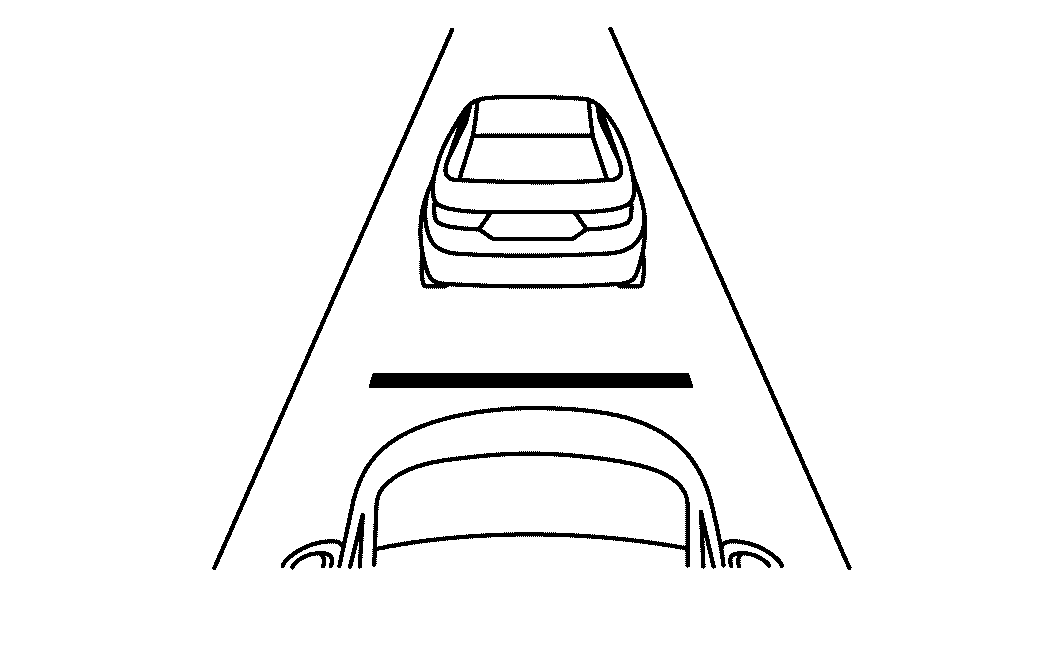

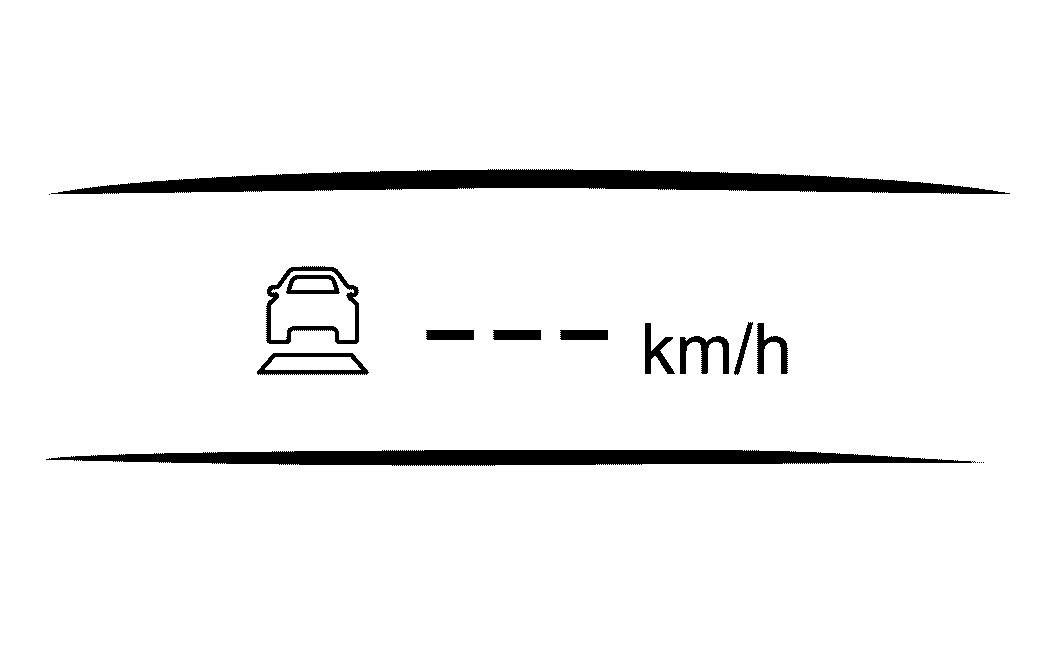

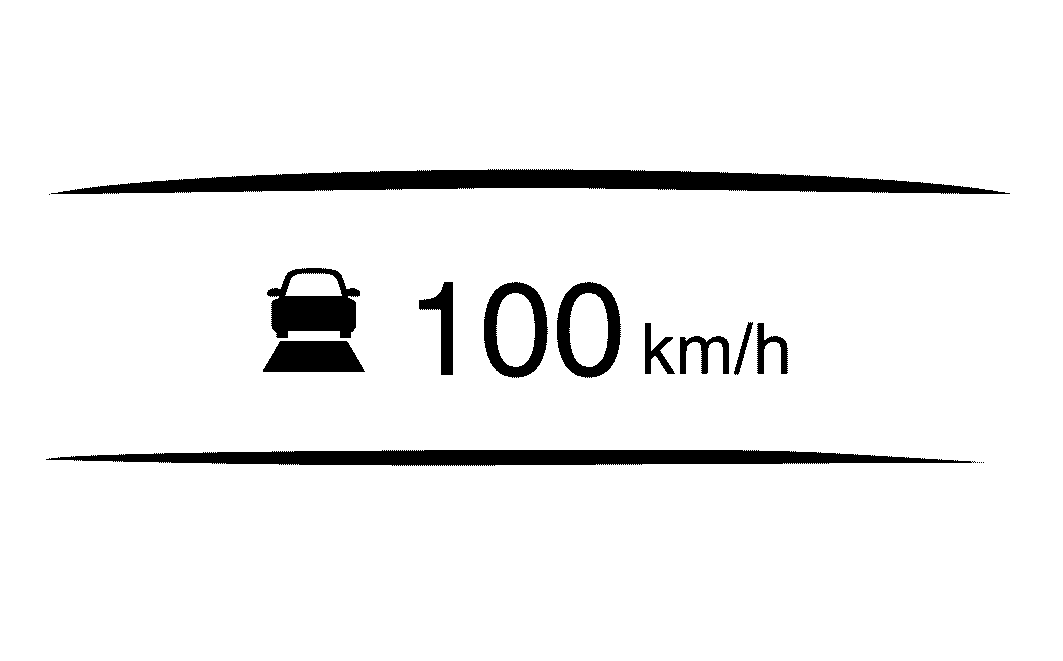

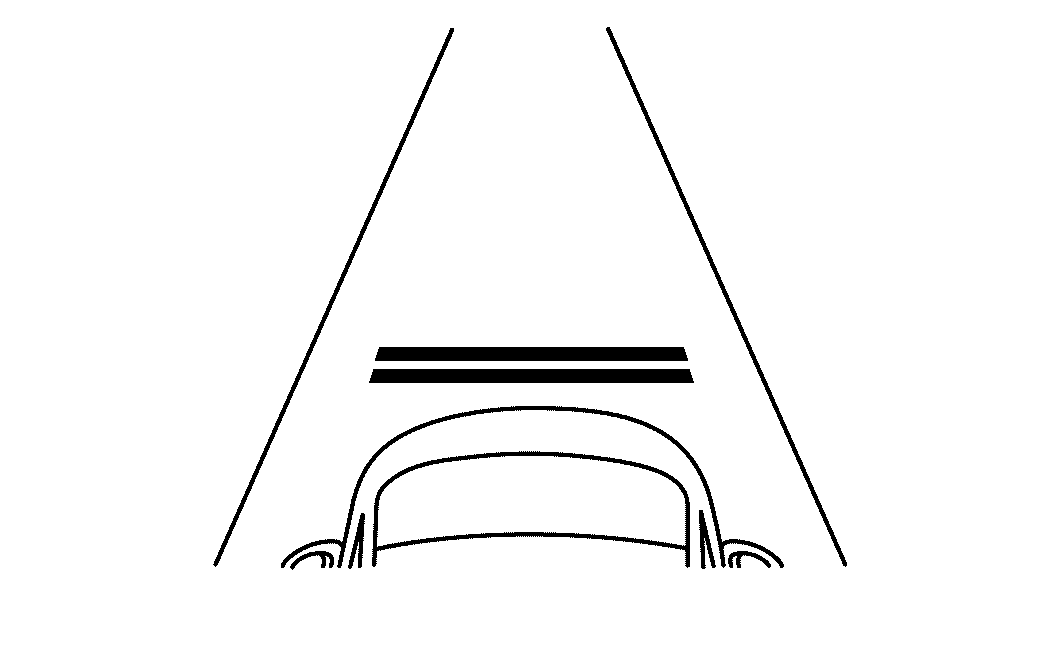

Standby mode			Speed control indicator/warning : Gray Set distance indicator : Gray Courtesy of NISSAN NORTH AMERICA, INC.	White Courtesy of NISSAN NORTH AMERICA, INC.

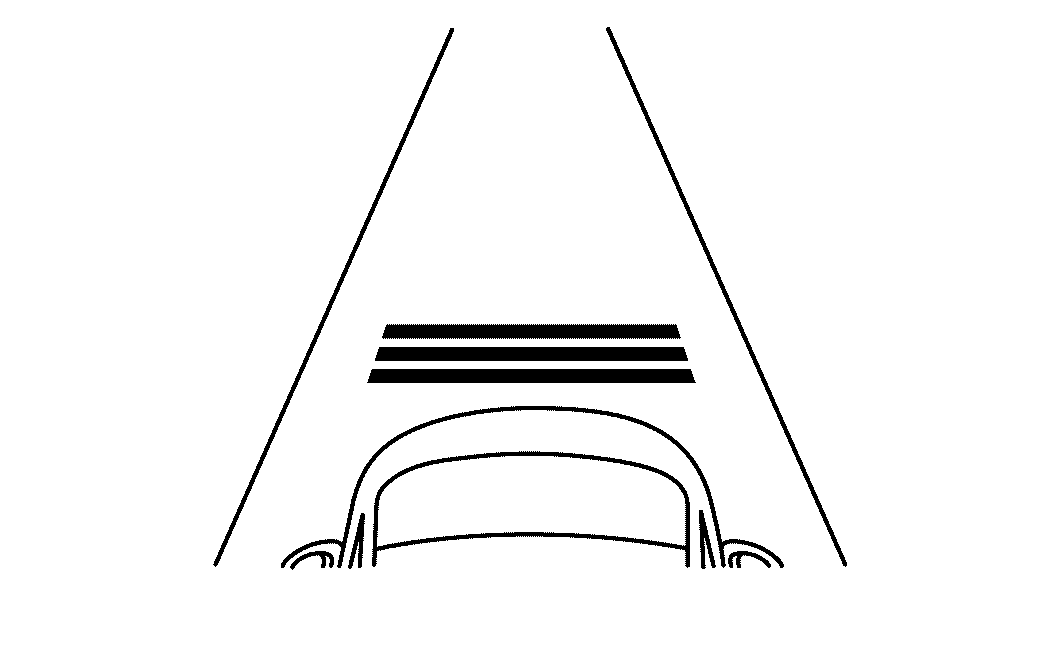

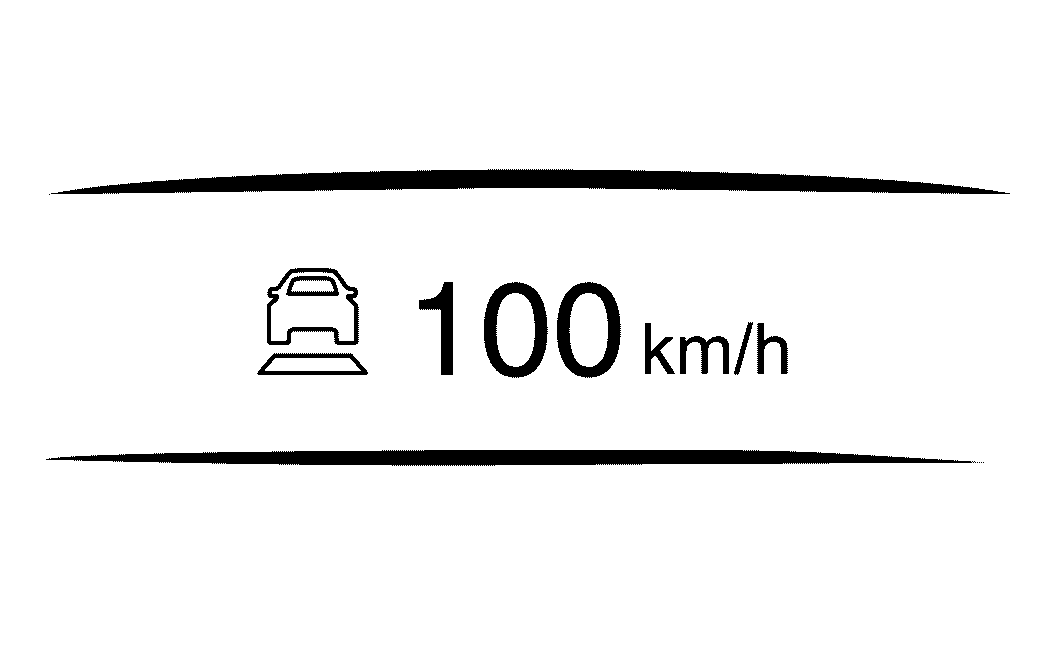

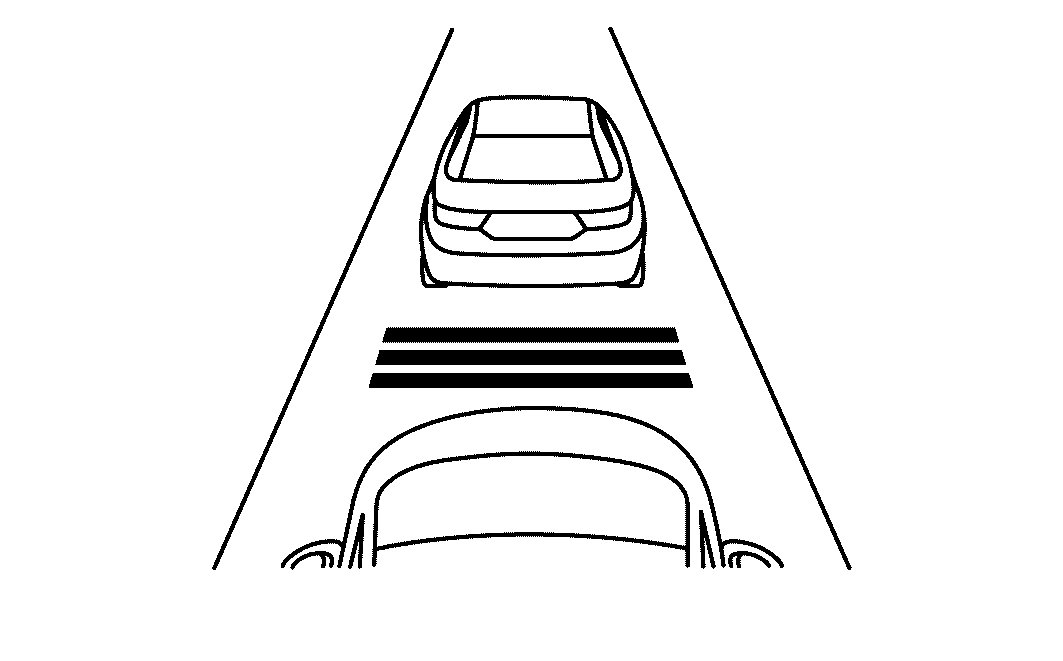

Control mode	Without a vehicle ahead	Set vehicle distance (Long)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.

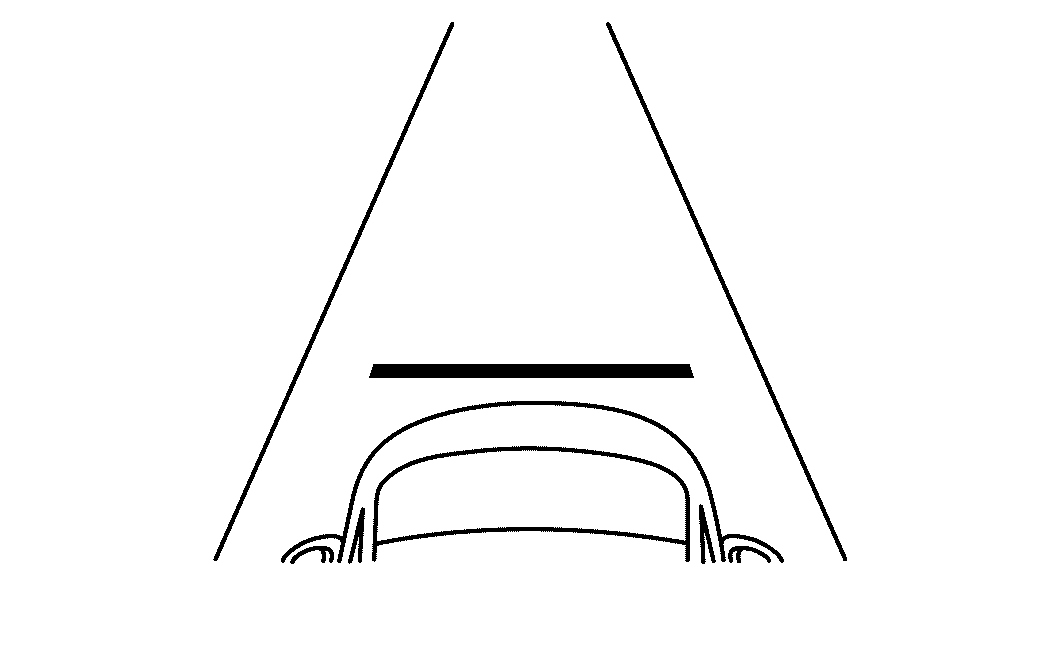

		Set vehicle distance (Short)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.

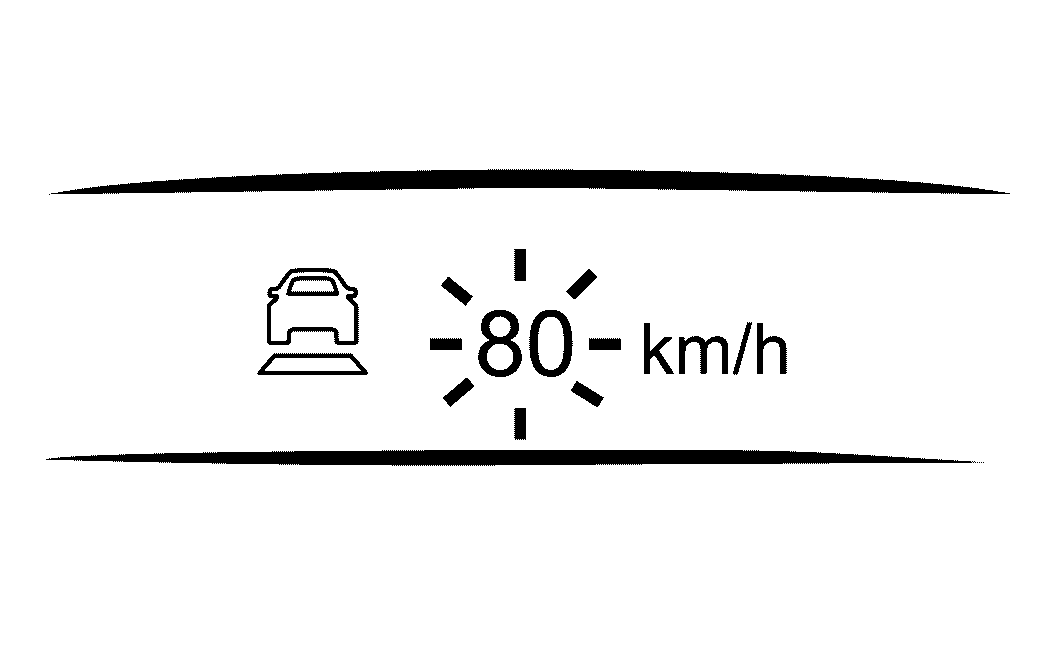

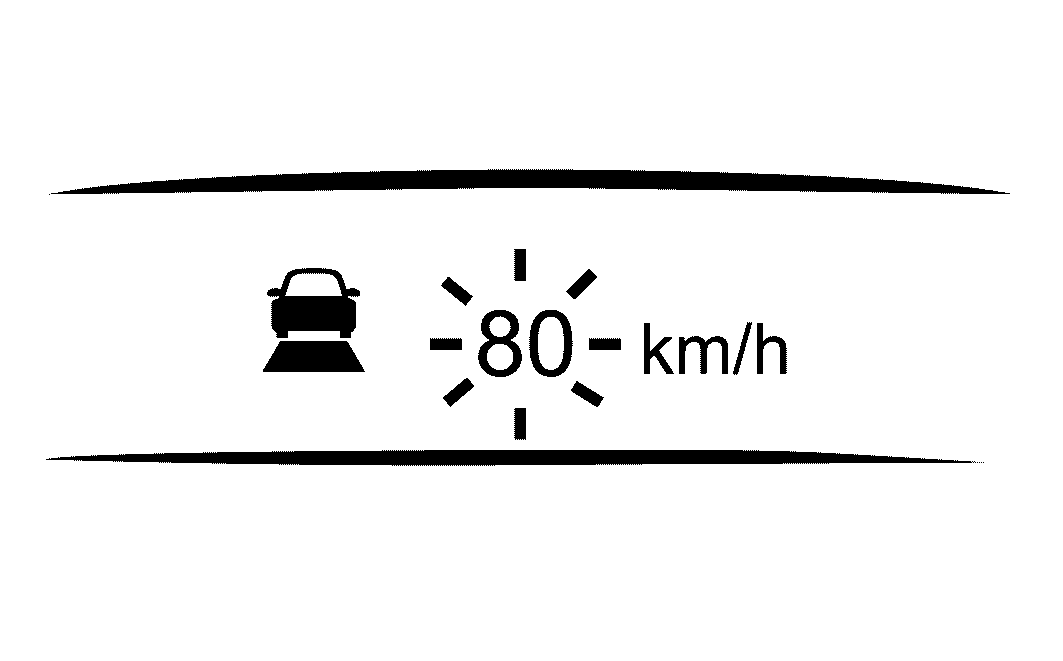

		When the vehicle speed exceeds the set speed	Speed control indicator/warning : Green (Blink) Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.

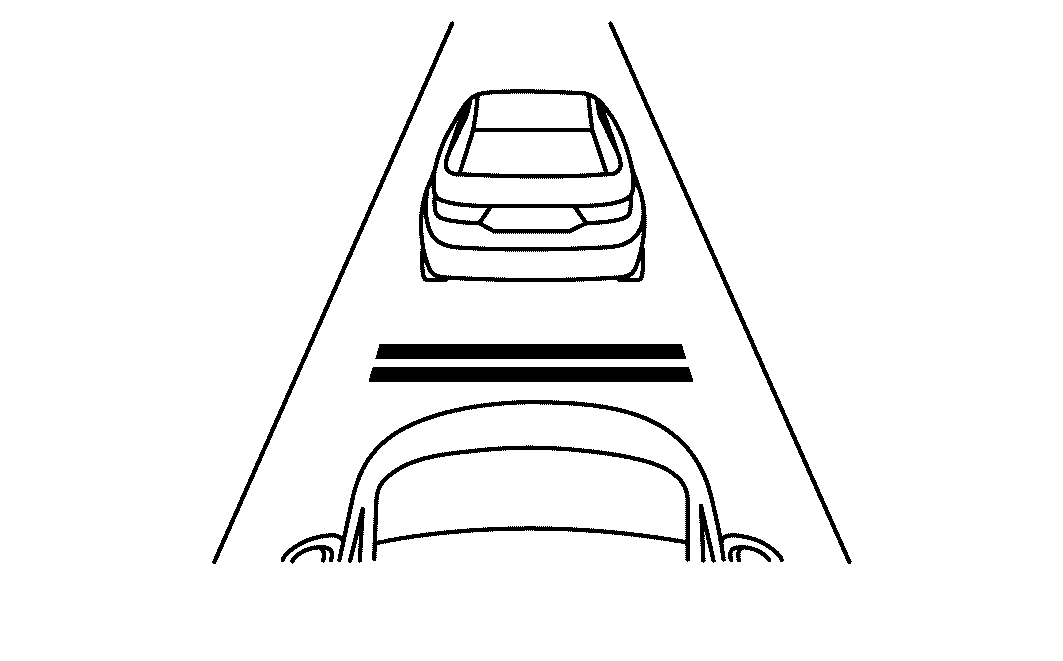

Control mode	With a vehicle ahead	Set vehicle distance (Long)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	Speed control indicator/warning : Green (Blink) Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Green Courtesy of NISSAN NORTH AMERICA, INC.

APPROACH WARNING DISPLAY

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and ICC system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:

The chime sounds.
The vehicle ahead detection indicator and set distance indicator blink.

The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:

When the vehicles are traveling at the same speed and the distance between vehicles is not changing.
When the vehicle ahead is traveling faster and the distance between vehicles is increasing.
When a vehicle cuts in at near own vehicle.

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly. The warning chime will not sound when the accelerator pedal is depressed, overriding the system. The approach warning chime may sound and the system display may blink when the distance sensor detects objects on the side of the vehicle or some reflectors on the side of the road. This may cause the ICC system to decelerate or accelerate the vehicle. The distance sensor may detect these object when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve. The distance sensor may also detect object on narrow roads or in road construction zones. In these cases driver will have to manually control the proper distance ahead of own vehicle. Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).

Condition			Display on combination meter
Condition			Upper part	Middle part

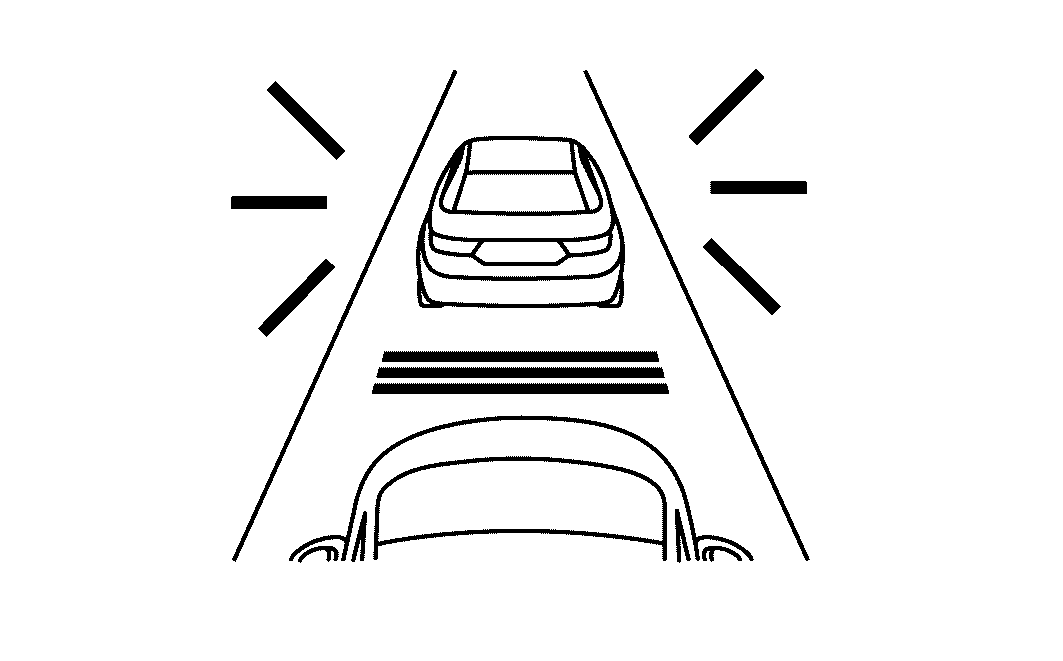

When own vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient			Speed control indicator/warning : Green Set distance indicator : Green Courtesy of NISSAN NORTH AMERICA, INC.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition		Description	Display on ICC system display
	When the front bumper grille near the distance sensor is dirty, making it impossible to detect a vehicle ahead.	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Clean the front bumper grille near the distance sensor and then perform the settings again.	Not available Front Radar Obstructed
	When driving on roads with limited road structures or buildings (for example, long bridges, deserts, snow fields, driving next to long walls).	NOTE: When the conditions listed above are no longer present, turn the system OFF using the MAIN switch. Turn the ICC system back on to use the system.	Speed control indicator/warning : Yellow Set distance indicator : Gray Courtesy of NISSAN NORTH AMERICA, INC.
			Not available Front Radar Obstructed
	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system.	Speed control indicator/warning : Yellow Set distance indicator : Gray Courtesy of NISSAN NORTH AMERICA, INC.
Automatic cancellation display	When the VDC is turned OFF When the VDC (including the TCS) operates When a vehicle ahead is not detected below the speed of 30 km/h (18 MPH) When the system judges the vehicle is at standstill When the selector lever is not in "D" position or manual mode When the parking brake are applied When a wheel slips When the radar signal is temporarily interrupted	A chime sounds and the control is automatically canceled. NOTE: When the conditions listed above are no longer present, turn the system OFF using the MAIN switch. Turn the ICC system back on to use the system.	Speed control indicator/warning : Gray Set distance indicator : Gray Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

When the ICC system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).
