Menu Displayed by Pressing Each Switch

ICC SYSTEM DISPLAY (ON THE INFORMATION DISPLAY)

Courtesy of NISSAN NORTH AMERICA, INC.

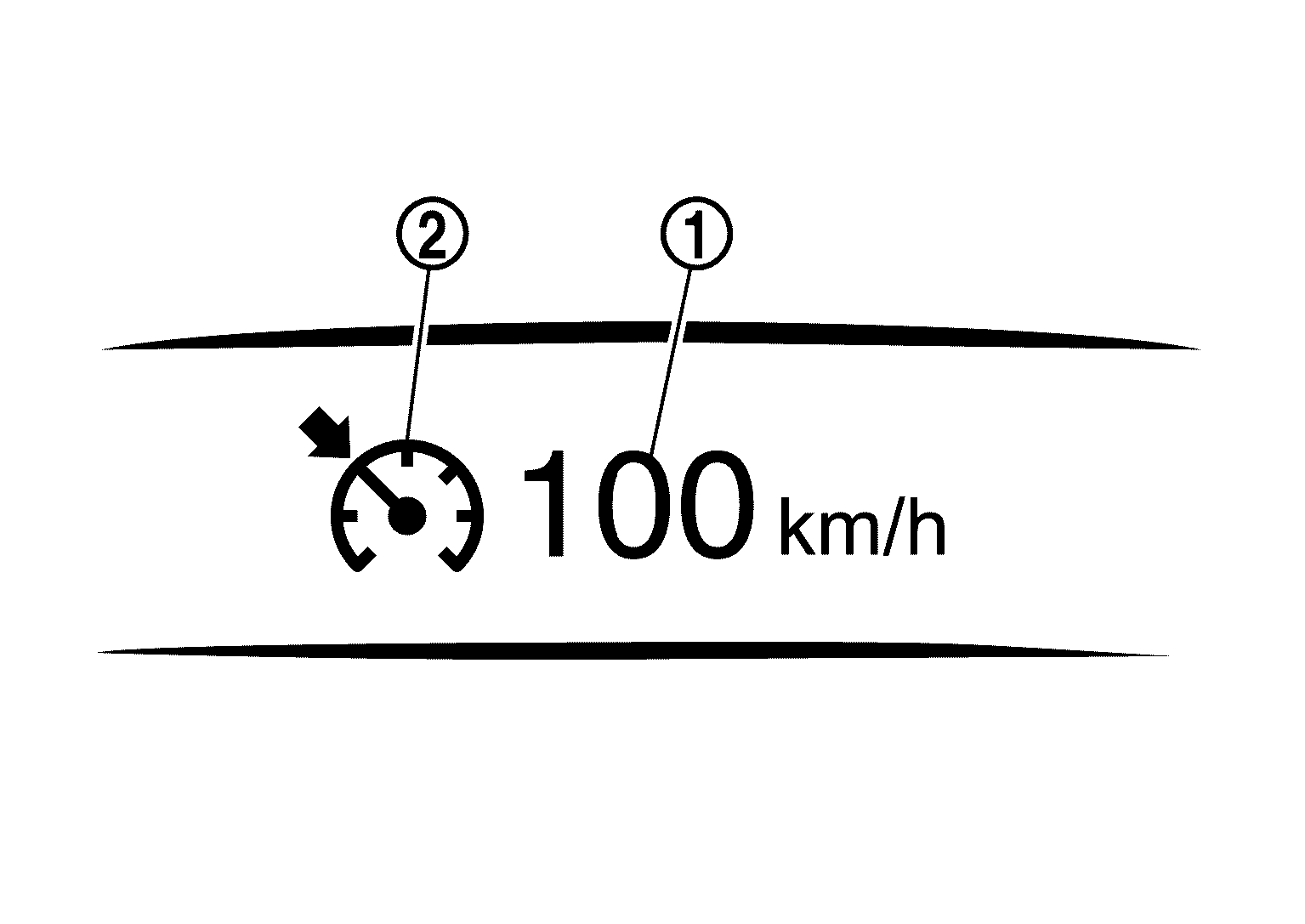

No.	Description	Function
	Set vehicle speed indicator	Indicates the set vehicle speed
	Speed control indicator/warning	The vehicle speed control status is indicated by different colors and shapes

SYSTEM CONTROL CONDITION DISPLAY

Push and hold the MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

Condition	Display on ICC system display

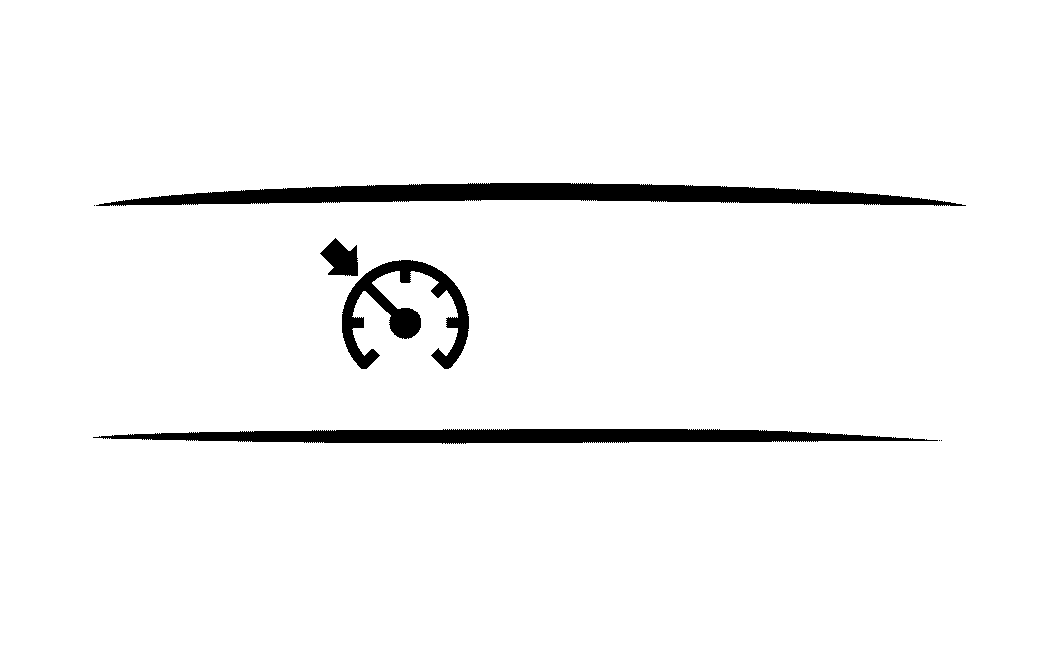

Standby mode	Courtesy of NISSAN NORTH AMERICA, INC.

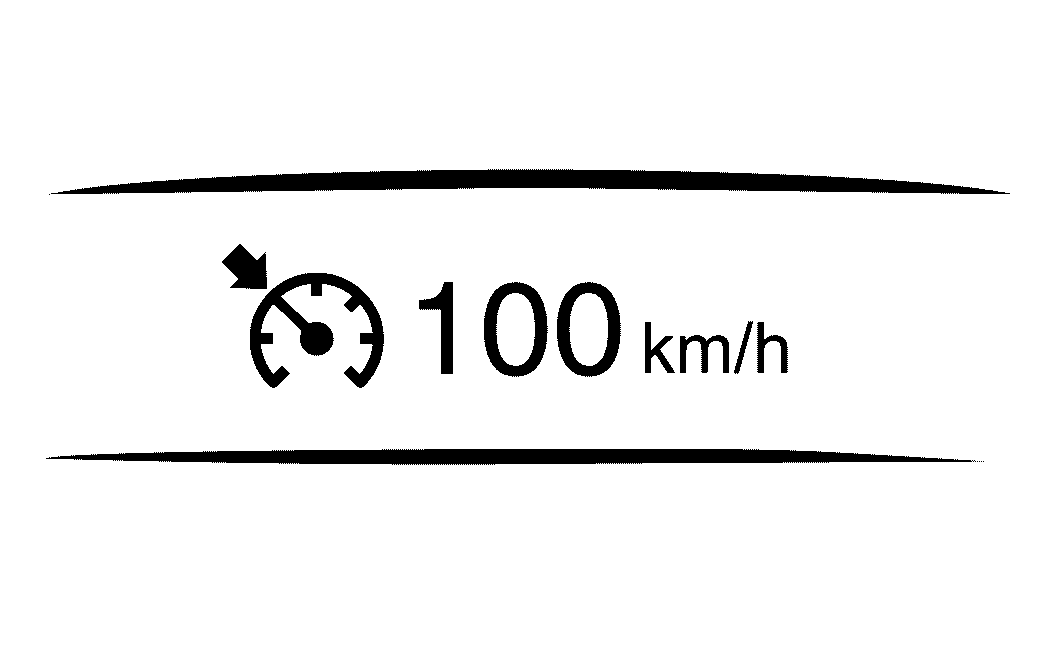

Control mode	Courtesy of NISSAN NORTH AMERICA, INC.

WARNING AND AUTOMATIC CANCELLATION DISPLAY

Condition		Description	Display on ICC system display

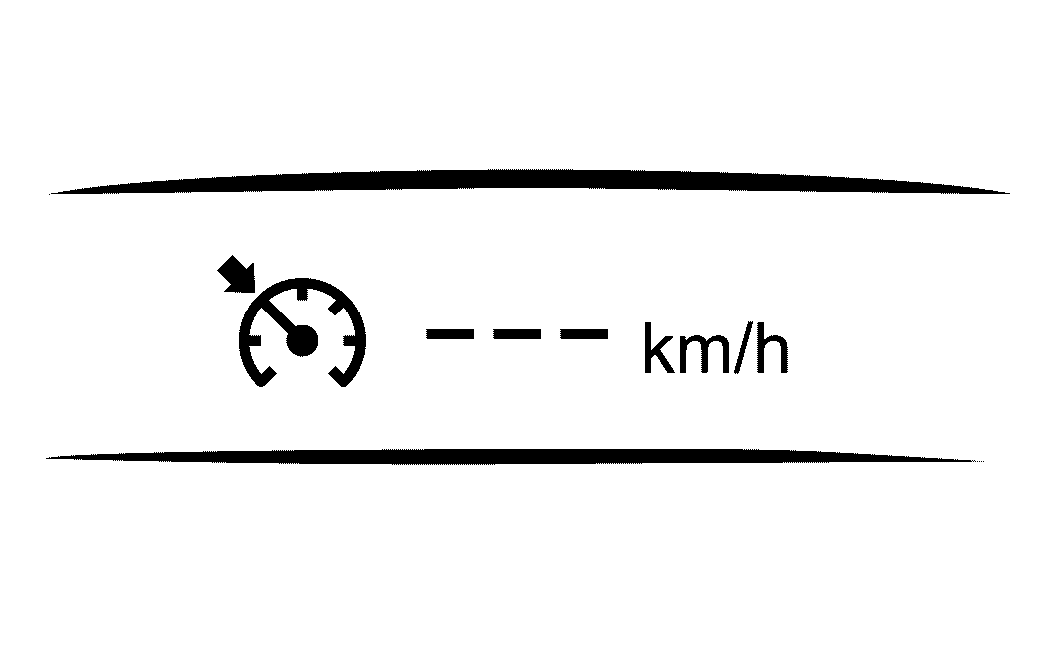

Warning display	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system	Speed control indicator/warning : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
System cancel display	When the vehicle slows down more than 13 km/h (8 MPH) below the set speed When the parking brakes are applied When the clutch pedal is depressed for longer than approximately 8 seconds. When VDC (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled NOTE: The system will be in a standby, after the control is automatically canceled	Speed control indicator/warning : Gray Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When the ICC system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).
