Menu Displayed by Pressing Each Switch

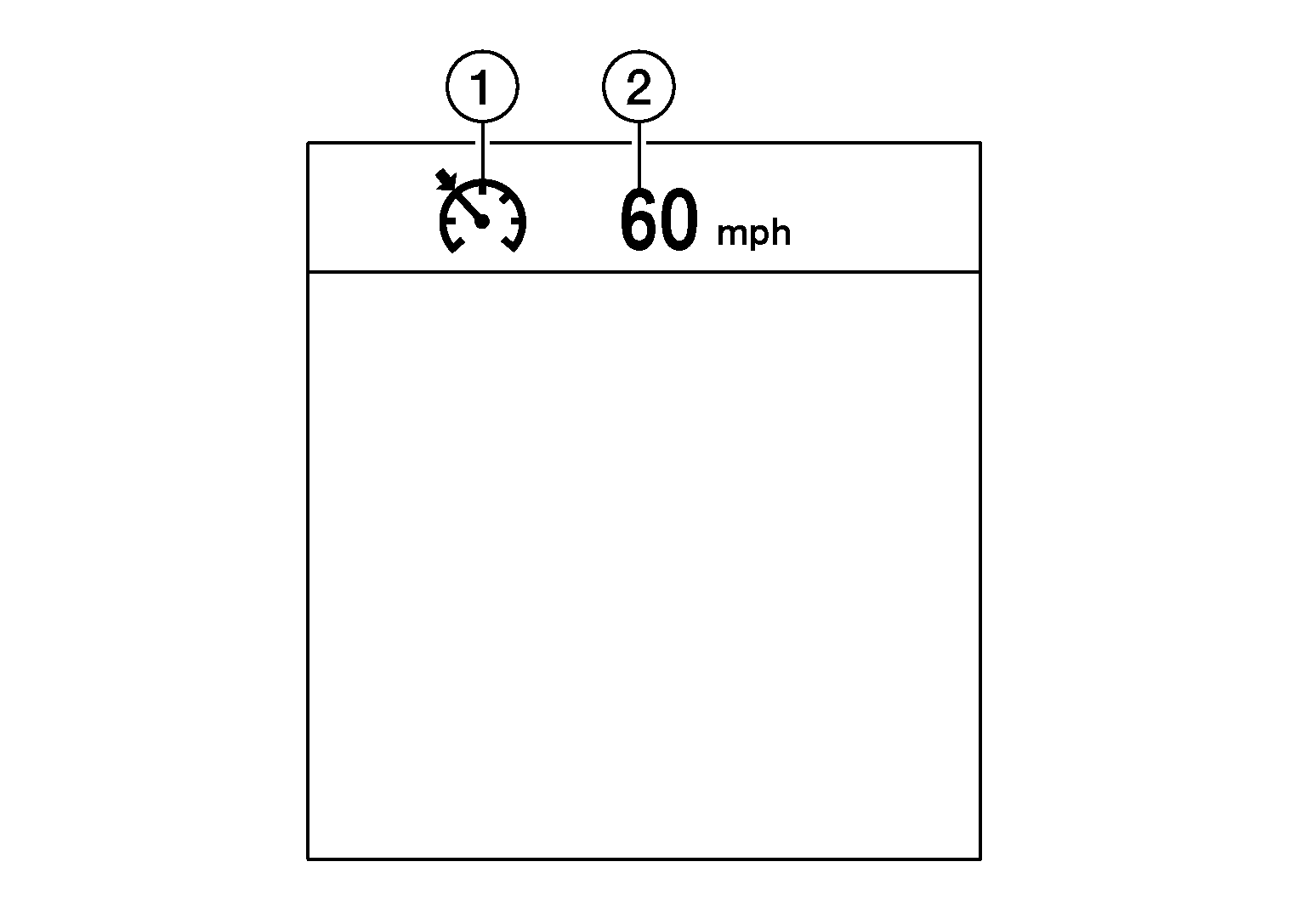

ICC SYSTEM DISPLAY (ON THE INFORMATION DISPLAY)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Display item	Description
1	MAIN switch indicator (gray)	White: Indicates that the main switch is ON (ICC system ON)
	MAIN switch indicator (yellow)	Yellow: Indicates that a malfunction occurred in the ICC system
	MAIN switch indicator (green)	Green: Indicates that the cruising speed is set
2	Set speed indicator	Indicates that the set conventional (fixed speed) cruise control mode is controlled

SYSTEM CONTROL CONDITION DISPLAY

Push and hold the ICC MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

Condition	Display on ICC system display

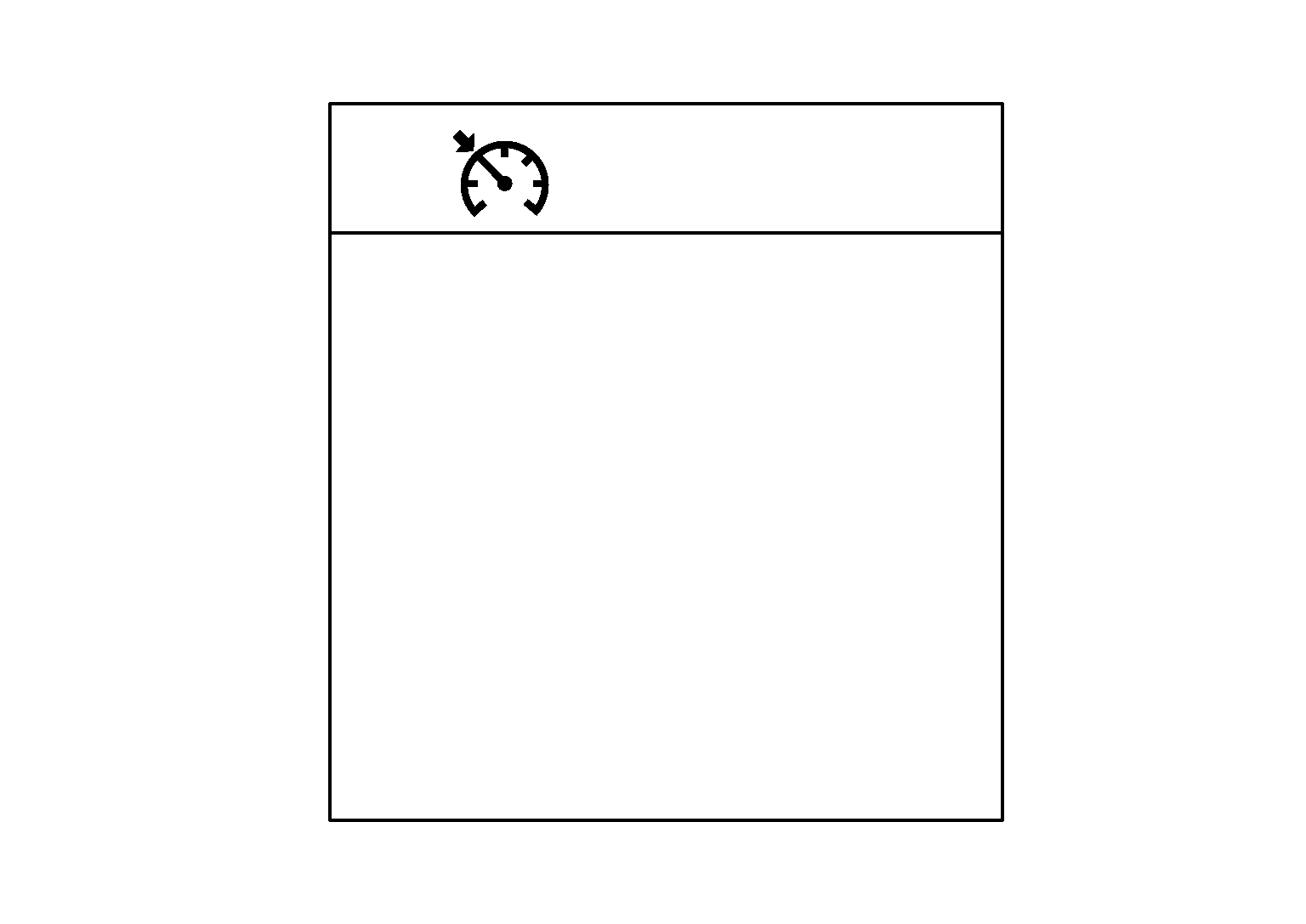

Standby mode	Courtesy of NISSAN NORTH AMERICA, INC.

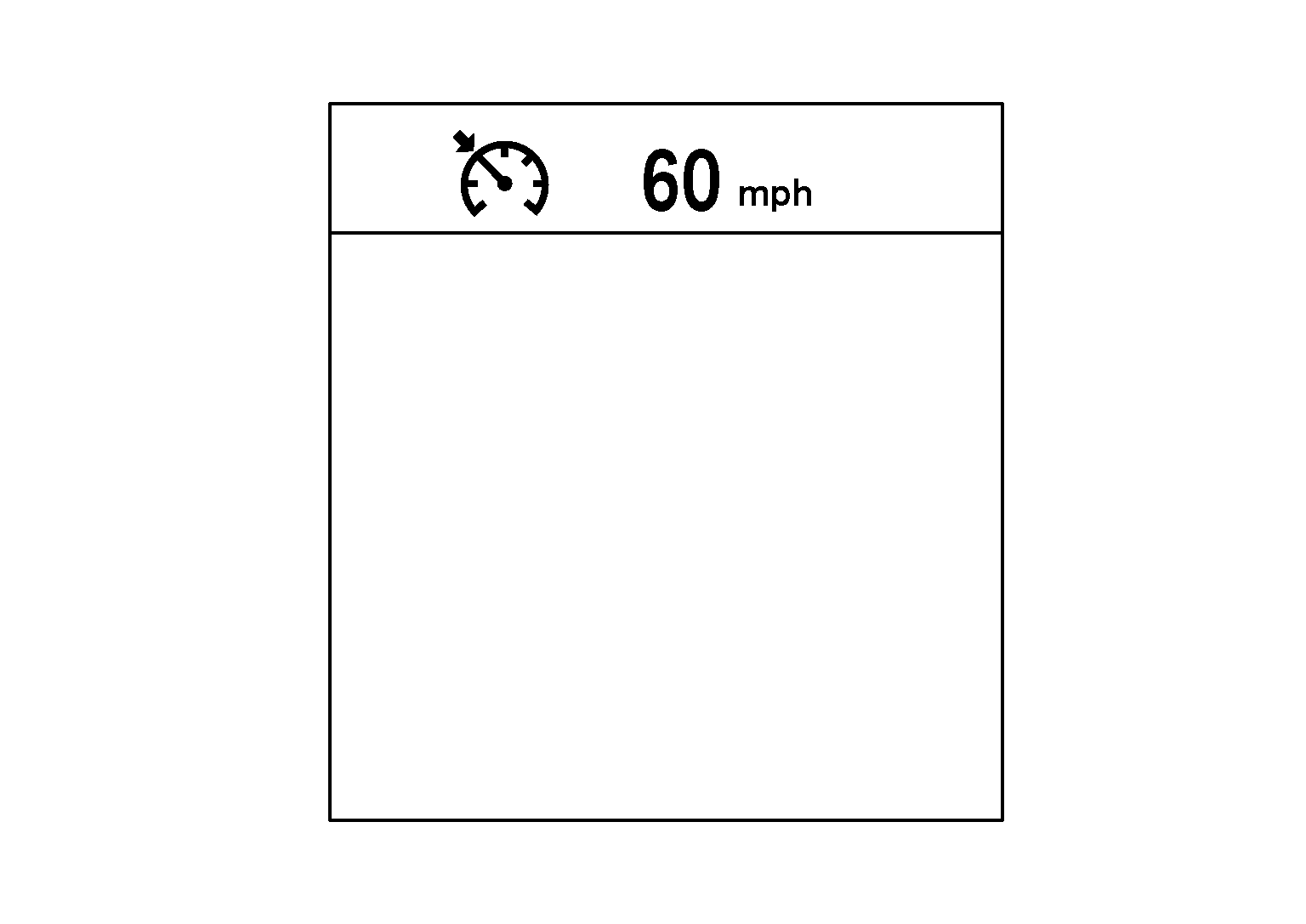

Control mode	Courtesy of NISSAN NORTH AMERICA, INC.

WARNING AND AUTOMATIC CANCELLATION DISPLAY

Condition		Description	Display on ICC system display
Warning display	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system.	Courtesy of NISSAN NORTH AMERICA, INC.
System cancel display	When brake pedal is depressed When pressing CANCEL switch When the vehicle slows down more than 13 km/h (8 MPH) below the set speed When the selector lever is not in the "D" position or manual mode When the parking brakes are applied When VDC (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled. NOTE: The system will be in a standby, after the control is automatically canceled.. A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed.	Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

When the ICC system is automatically canceled, the cancellation condition can be displayed on "Work support" of CONSULT (ICC/ADAS).
