Exploded View

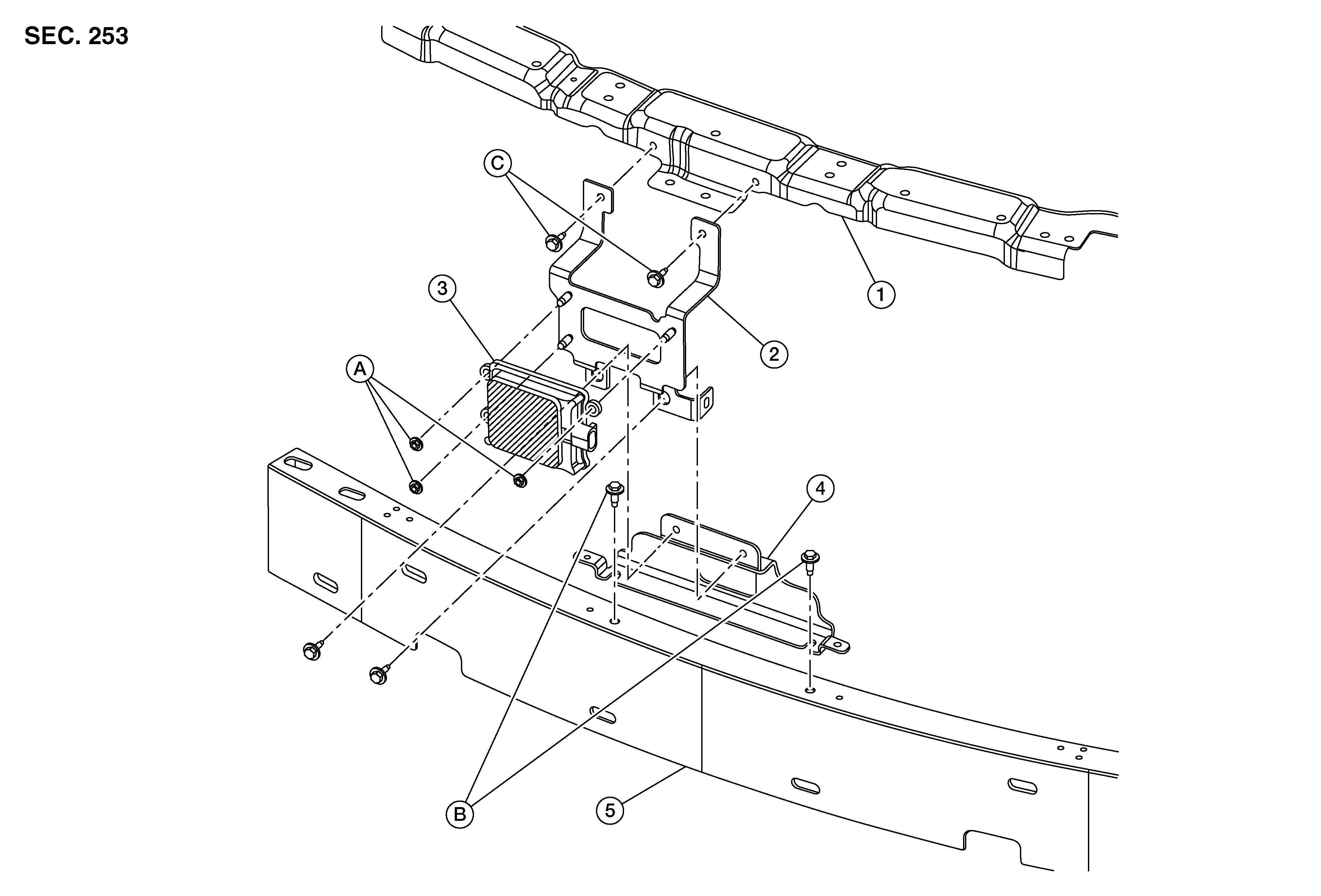

GNSDB138905Courtesy of NISSAN NORTH AMERICA, INC.
1. Radiator support 2. Distance sensor bracket upper 3. Distance sensor
4. Distance sensor bracket lower 5. Reinforcement bumper A. Refer to Removal and Installation .
B. Refer to Removal and Installation . C. Refer to Removal and Installation .
