Exploded View

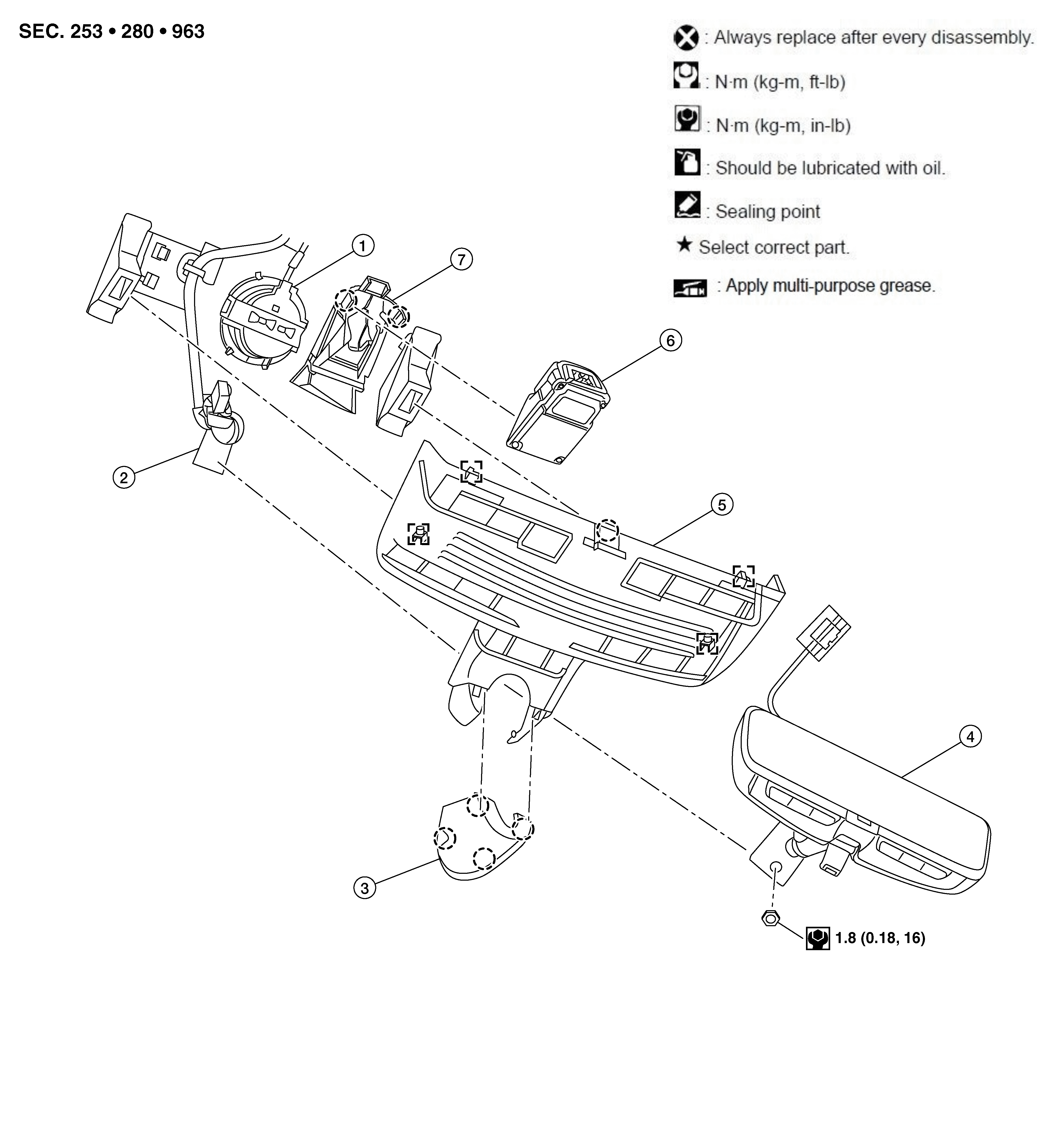

Fig 1: Front Camera Unit with Torque Specifications
GNSDB140519Courtesy of NISSAN NORTH AMERICA, INC.
1. Rain sensor 2. Mirror base 3. Inside mirror cover
4. Inside mirror 5. Rain sensor cover 6. Front camera unit
7. Front camera unit bracket SYMBOL Pawl SYMBOL Metal clip
