Switch Name and Function

LDP/Blind Spot Intervention

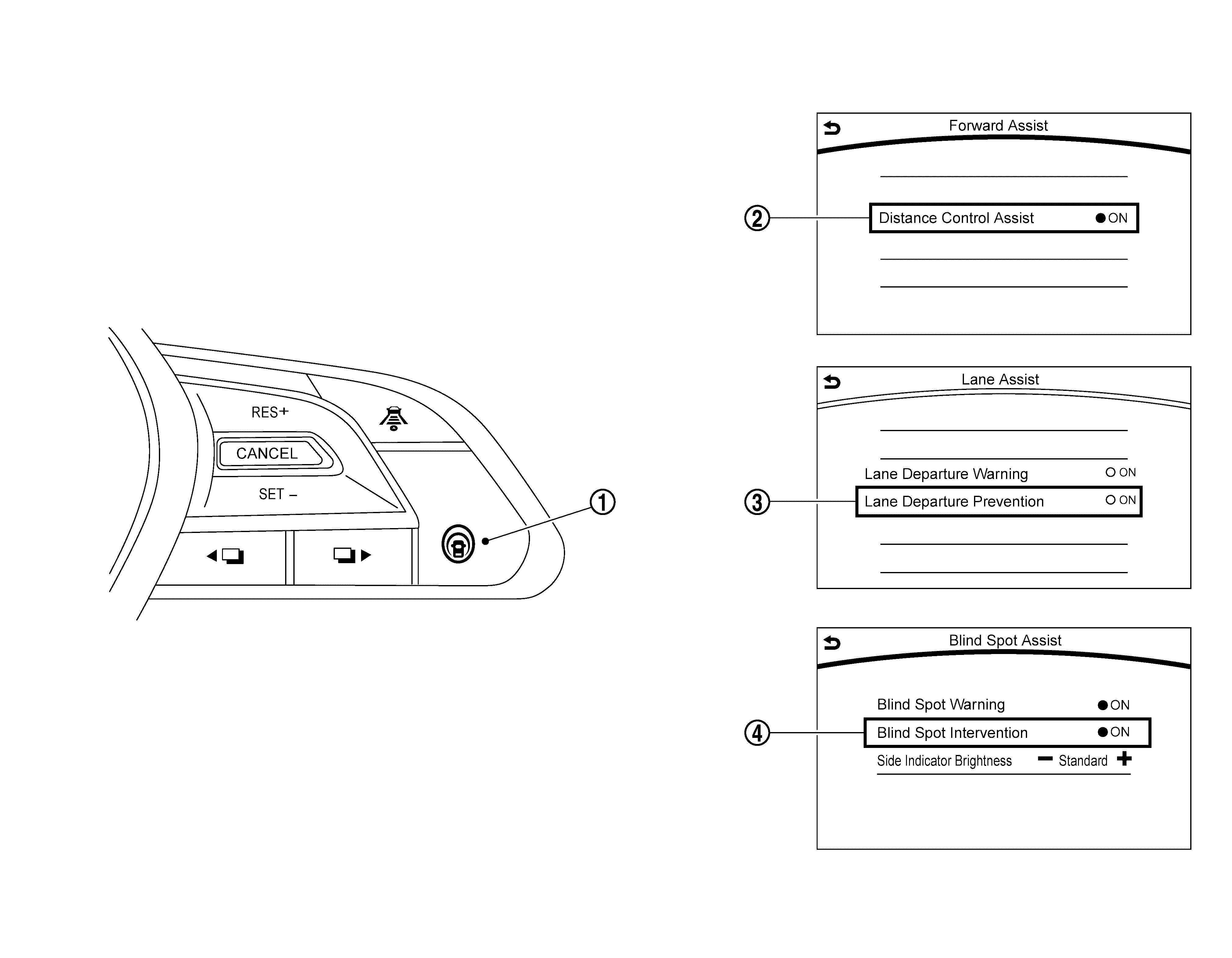

GNSDB139393Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
SYMBOL ProPIOT assist switch(with ProPILOT Assist) Turns LDP/Blind Spot Intervention system ON/OFF(When the setting of system on the integral switch is ON)
SYMBOL DCA system setting screen*(Integral switch) -
SYMBOL LDP system setting screen(Integral switch) The setting of LDP system can be switched between ON and OFF
SYMBOL Blind Spot Intervention system setting screen(Integral switch) The setting of Blind Spot Intervention system can be switched between ON and OFF

*: Not applicable
