Exploded View

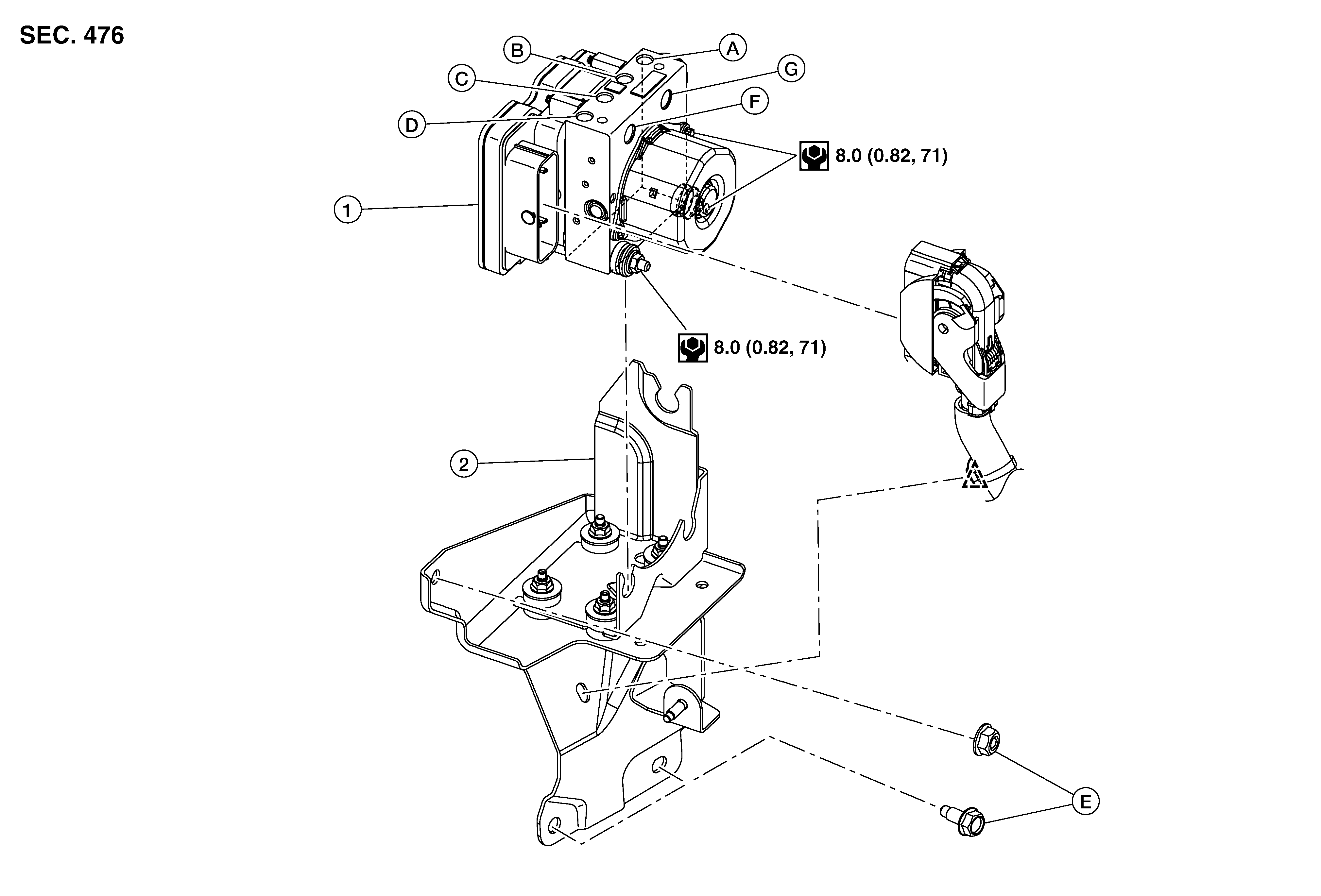

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Actuator bracket	A.	To rear caliper (LH). Refer to Exploded View .
B.	To front caliper (RH). Refer to Exploded View .	C.	To front caliper (LH). Refer to Exploded View .	D.	To rear caliper (RH). Refer to Exploded View .
E.	Refer to Removal and Installation .	F.	To master cylinder secondary side. Refer to Exploded View .	G.	To master cylinder primary side. Refer to Exploded View .
