System Description

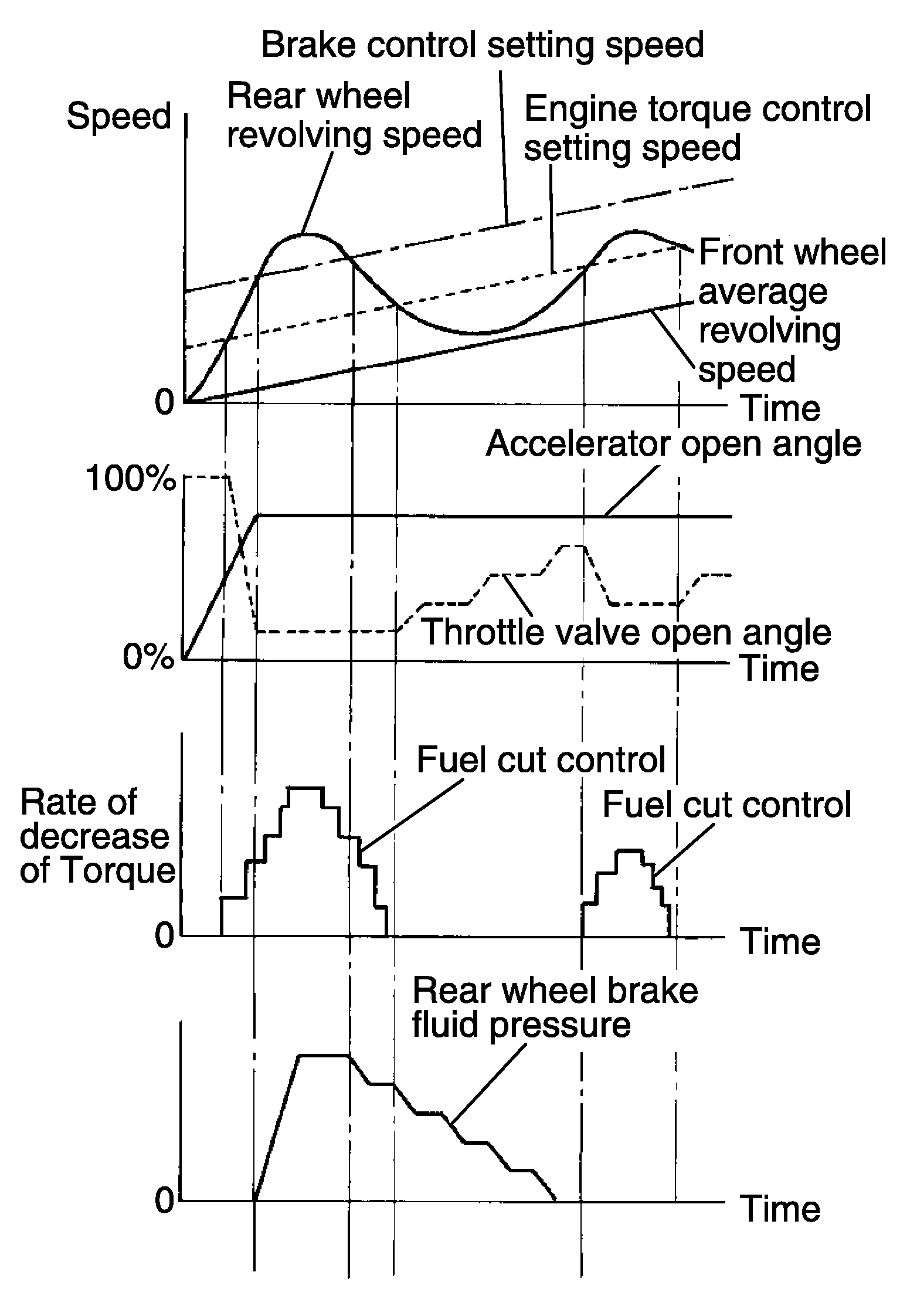

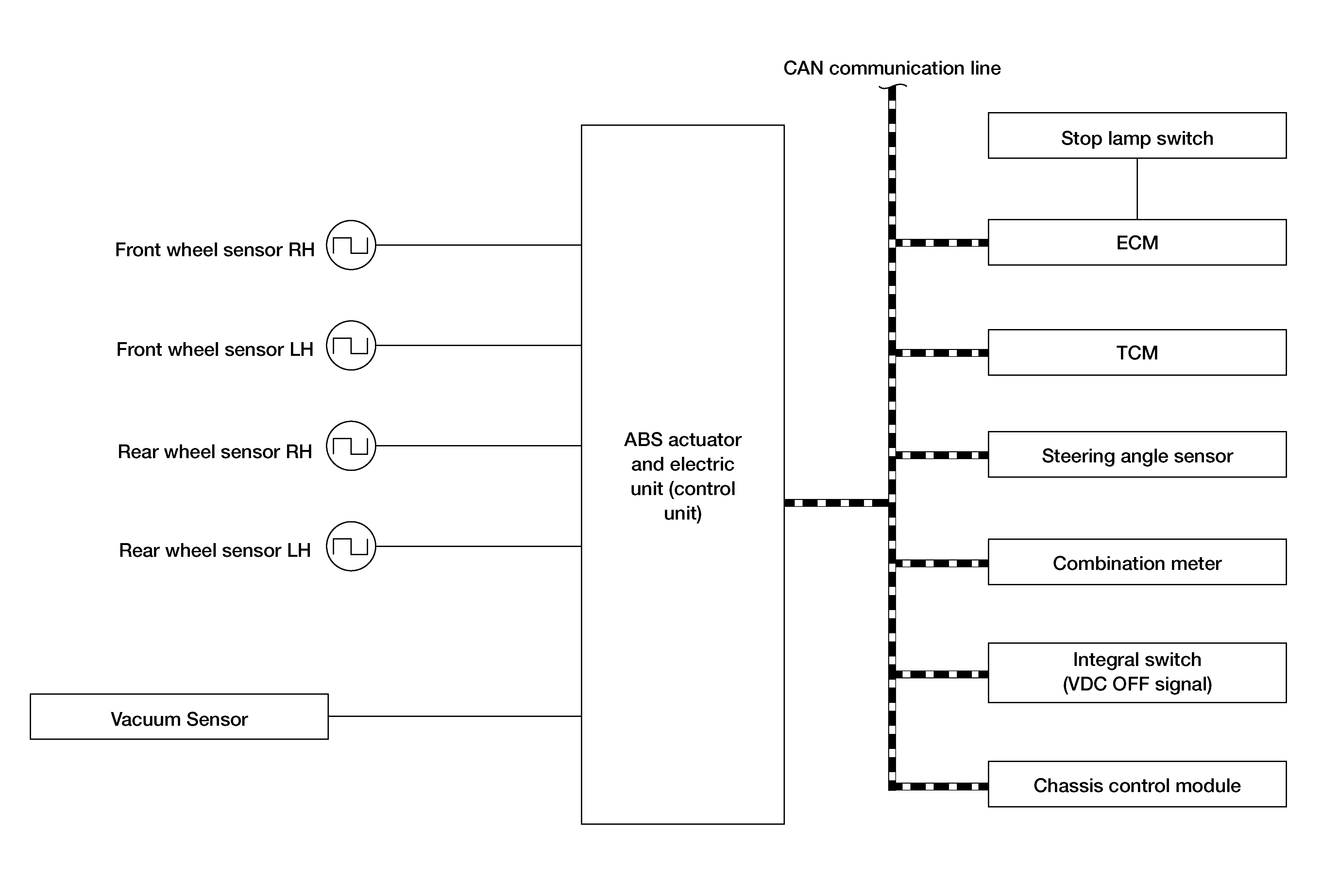

SYSTEM DIAGRAM

GNSDB138784Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component Signal description
ECM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
  • Accelerator pedal position signal
  • Engine speed signal
  • Engine torque signal

Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication:
  • Engine torque request signal
TCM Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication:
  • Current gear position signal
Chassis control module Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication:
  • Intelligent Trace Control
Combination meter Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
  • Brake fluid level switch signal
  • Parking brake switch signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
  • VDC warning lamp signal
  • VDC OFF indicator lamp signal
Steering angle sensor Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
  • Steering angle sensor signal
  • Steering angle sensor malfunction signal
