DTC Description

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time. MALFUNCTION A to judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during various driving conditions such as fuel cut.

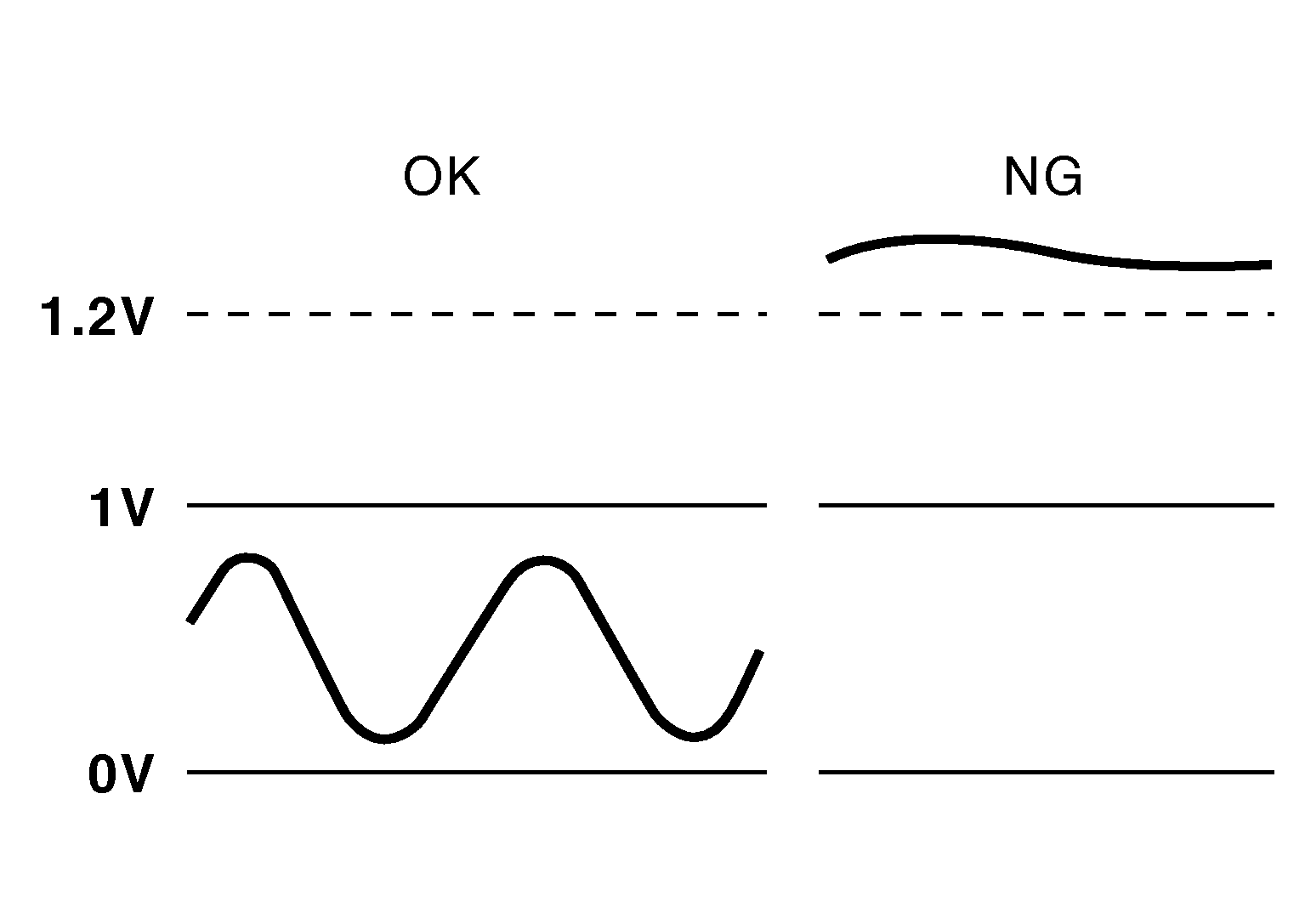

GNSDB109079Courtesy of NISSAN NORTH AMERICA, INC.

MALFUNCTION B To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the minimum voltage is excessively high during various driving conditions such as fuel cut.

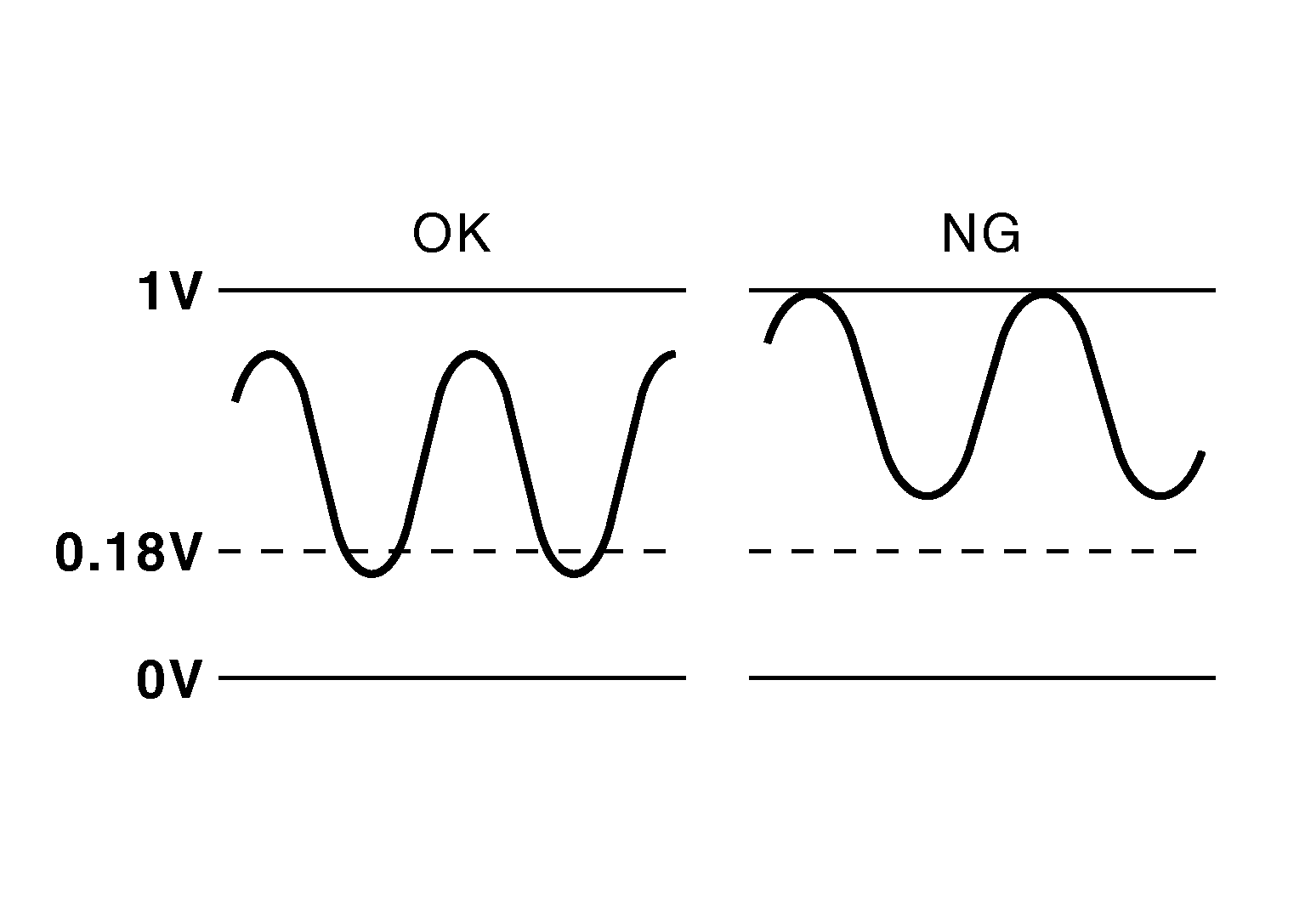

GNSDB126825Courtesy of NISSAN NORTH AMERICA, INC.

DTC DETECTION LOGIC

DTC CONSULT screen terms(Trouble diagnosis content) DTC detection condition
P0136 00 O2 sensor bank 1 sensor 2(O2 Sensor Circuit Bank 1 Sensor 2) A Diagnosis condition -
Signal (terminal) Heated oxygen sensor 2 signal
Threshold An excessively high voltage from the sensor is sent to ECM
Diagnosis delay time -
B Diagnosis condition -
Signal (terminal) Heated oxygen sensor 2 signal
Threshold The minimum voltage from the sensor is not reached to the specified voltage
Diagnosis delay time -

POSSIBLE CAUSE

P0136-A

P0136-B

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

  1. PRECONDITIONING

    If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

    >>

    GO TO 2.

  2. DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A
    1. Start engine and warm it up to the normal operating temperature.
    2. Turn ignition switch OFF and wait at least 10 seconds.
    3. Restart engine and keep the engine speed between 3, 500 and 4, 000 rpm for at least 1 minute under no load.
    4. Check 1st trip DTC.

    Is 1st trip DTC detected?

    >>

    Proceed to Diagnosis Procedure .

    >>

    With CONSULT : GO TO 3.

    >>

    Without CONSULT : GO TO 5.

  3. DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B-1

    SYMBOL With CONSULT Test condition: For better results, perform "DTC WORK SUPPORT" at a temperature of 0 to 30°C (32 to 86°F).

    1. Turn ignition switch ON and select "DATA MONITOR" mode of "ENGINE" using CONSULT.
    2. Start engine and warm it up to the normal operating temperature.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Restart engine and keep the engine speed between 3, 500 and 4, 000 rpm for at least 1 minute under no load.
    5. Let engine idle for 1 minute.
    6. Check that "COOLANT TEMP/S" indicates more than 70°C (158°F).If not, warm up engine and go to next step when "COOLANT TEMP/S" indication reaches 70°C (158°F).
    7. Open engine hood.
    8. Select "HO2S2 (B1) P1146" of "HO2S2" in "DTC WORK SUPPORT" mode of "ENGINE" using CONSULT.
    9. Follow the instruction of CONSULT display.
      NOTE: SYMBOL It will take at most 10 minutes until "COMPLETED"is displayed.
    10. Touch "SELF-DIAG RESULTS".

    Which is displayed on CONSULT screen?

    OK-1>>

    To check malfunction symptom before repair: Refer to Intermittent Incident .

    OK-2>>

    Confirmation after repair: INSPECTION END

    NG>>

    Proceed to Diagnosis Procedure .

    CAN NOT BE DIAGNOSED>>

    GO TO 4.

  4. DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B-2
    1. Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).
    2. Perform DTC confirmation procedure again.

    >>

    GO TO 3.

  5. PERFORM COMPONENT FUNCTION CHECK-1

    SYMBOL Without CONSULT

    NOTE: SYMBOL Use component function check to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st trip DTC might not be confirmed.
    1. Start engine and warm it up to the normal operating temperature.
    2. Turn ignition switch OFF and wait at least 10 seconds.
    3. Restart engine and keep the engine speed between 3, 500 and 4, 000 rpm for at least 1 minute under no load.
    4. Let engine idle for 1 minute.
    5. Check the voltage between ECM harness connector terminals under the following conditions.
      ECM Condition Voltage
      Connector + -
      Terminal
      F52 77 76 Revving up to 4, 000 rpm quickly under no load at least 10 times. (Depress and release the accelerator pedal as quickly as possible.) The voltage should be below 0.18 V at least once during this procedure.

    Is the inspection result normal?

    >>

    To check malfunction symptom before repair: Refer to Intermittent Incident .

    >>

    Confirmation after repair: INSPECTION END

    >>

    GO TO 6.

  6. PERFORM COMPONENT FUNCTION CHECK-2

    SYMBOL Without CONSULT Check the voltage between ECM harness connector terminals under the following conditions.

    ECM Condition Voltage
    Connector + -
    Terminal
    F52 77 76 Keeping engine at idle for 10 minutes. The voltage should be below 0.18 V at least once during this procedure.

    Is the inspection result normal?

    >>

    To check malfunction symptom before repair: Refer to Intermittent Incident .

    >>

    Confirmation after repair: INSPECTION END

    >>

    GO TO 7.

  7. PERFORM COMPONENT FUNCTION CHECK-3

    SYMBOL Without CONSULT Check the voltage between ECM harness connector terminals under the following conditions.

    CAUTION:

    Always drive vehicle at a safe speed.

    ECM Condition Voltage
    Connector + -
    Terminal
    F52 77 76 Coasting from 80 km/h (50 MPH) in the D position. The voltage should be below 0.18 V at least once during this procedure.

    Is the inspection result normal?

    >>

    To check malfunction symptom before repair: Refer to Intermittent Incident .

    >>

    Confirmation after repair: INSPECTION END

    >>

    Proceed to Diagnosis Procedure .
