Exploded View

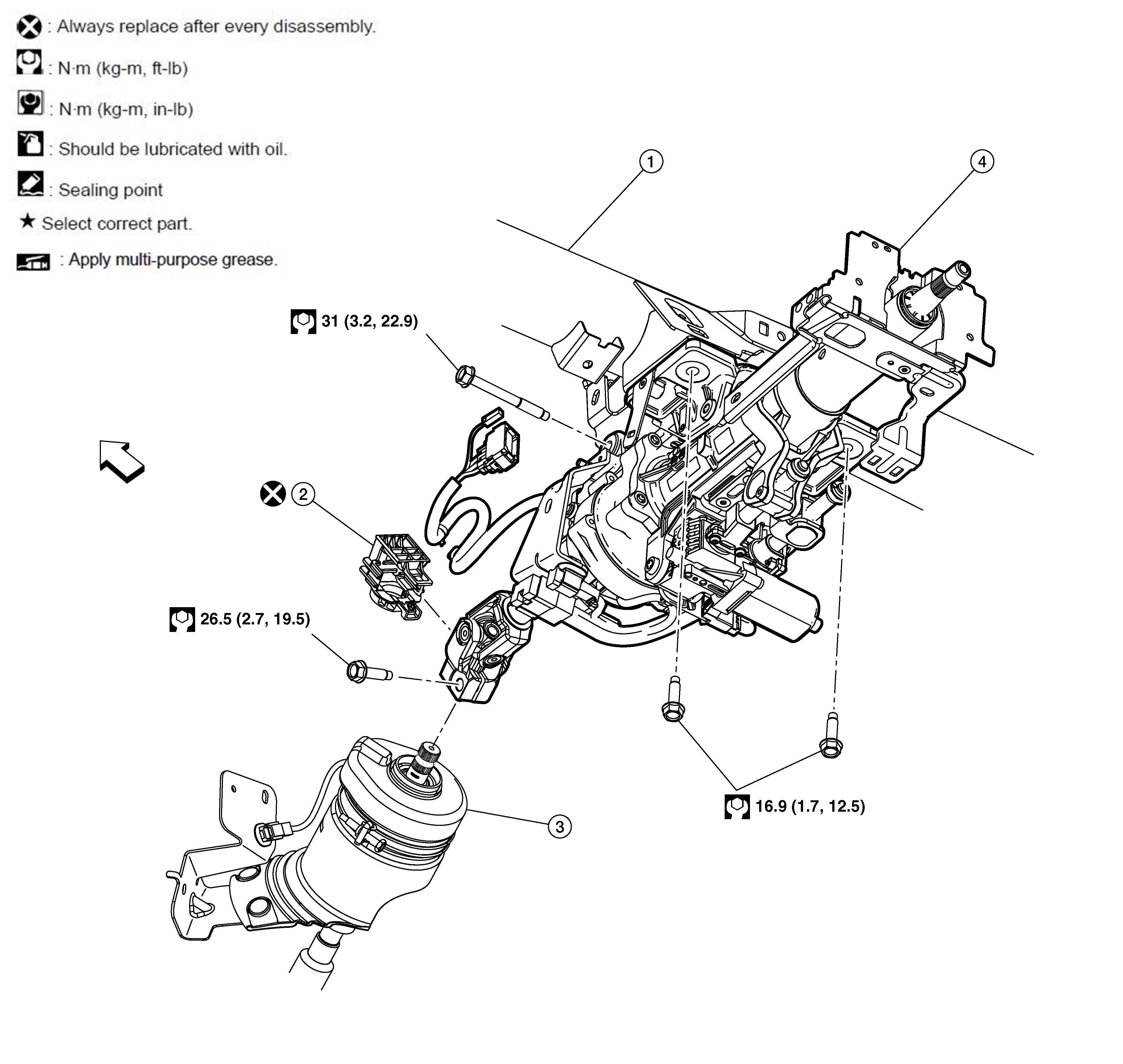

Fig 1: Steering Column With Torque Specifications
GNSDB139530Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering member 2. Collar 3. Steering clutch
4. Steering column SYMBOL Front
