Reference Value
VALUES ON THE DIAGNOSIS TOOL
NOTE:
The following table includes information (items) inapplicable to this vehicle: For information (items) applicable to this vehicle, refer to CONSULT display items.
| Monitor item | Data monitor | ||
|---|---|---|---|
| Condition | Display value | ||
| BATTERY VOLT | Engine running | 10.5 V - 16 V | |
| STEERING TORQUE | Engine running | Steering wheel: Not steering (There is no steering force) | Approx. 0.0 Nm |
| Steering wheel: Right turn | Positive value (Nm) | ||
| Steering wheel: Left turn | Negative value (Nm) | ||
| STEERING ANGLE SIGNAL | Steering wheel: Not steering (There is no steering force) | Approx. 0 deg | |
| Steering wheel: Right turn | Positive value (deg) | ||
| Steering wheel: Left turn | Negative value (deg) | ||
| STEERING ANGLE SPEED | Steering wheel: Not steering (There is no steering force) | Approx. 0 deg/s | |
| Steering wheel: Right turn | Positive value (deg/s) | ||
| Steering wheel: Left turn | Negative value (deg/s) | ||
| MOTOR CURRENT | Engine running | Steering wheel: Not steering (There is no steering force) | Approx. 0 A |
| Steering wheel: Right or left turn | Displays consumption current of EPS motor (A)*1 | ||
| Target motor current | Engine running | Steering wheel: Not steering (There is no steering force) | Approx. 0 A |
| Steering wheel: Right turn | Positive value (A) | ||
| Steering wheel: Left turn | Negative value (A) | ||
| C/U TEMP | Engine running | Displays temperature of inside of EPS control unit [°C] | |
| Assist level | Engine running | 100% *2 | |
| VEHICLE SPEED | Vehicle stopped | 0.00 km/h | |
| While driving | Approximately equal to the indication on speedometer *3 (inside of ±10%) | ||
| WARNING LAMP | Power steering warning lamp: ON | On | |
| Power steering warning lamp: OFF | OFF | ||
| STEERING ANGLE SENSOR STATUS | Malfunction in steering angle sensor. | ABNORMAL | |
| No Malfunction in steering angle sensor. | NORMAL | ||
| ENGINE STATUS | Engine not running | STOP | |
| Engine running | RUN | ||
| Engine cranking | CRANK | ||
| HEAT PROTECT STATUS | Ignition switch ON or Engine running | No over heat. | NORMAL |
| Over heat. | PRTECT | ||
| MOTOR REVOLUTION SPEED | Engine running | Steering wheel: Not steering (There is no steering force) | Displays an almost constant value (rpm) |
| Steering wheel: Right turn | The positive value changes as a steering speed (rpm) | ||
| Steering wheel: Left turn | The negative value changes as a steering speed (rpm) | ||
| CONTROL MODULE ESTM TEMP | Engine running | Displays temperature of inside of EPS control unit [°C] | |
*1: Almost in accordance with the value of "Target motor current". It is not a malfunction though these values are not accorded when steering quickly
*2: Normally displays 100%. In case of an excessive stationary steering, the assist curvature gradually falls. However, it returns to 100% when left standing.
*3: It is not a malfunction, though it might not be corresponding just after ignition switch ON.

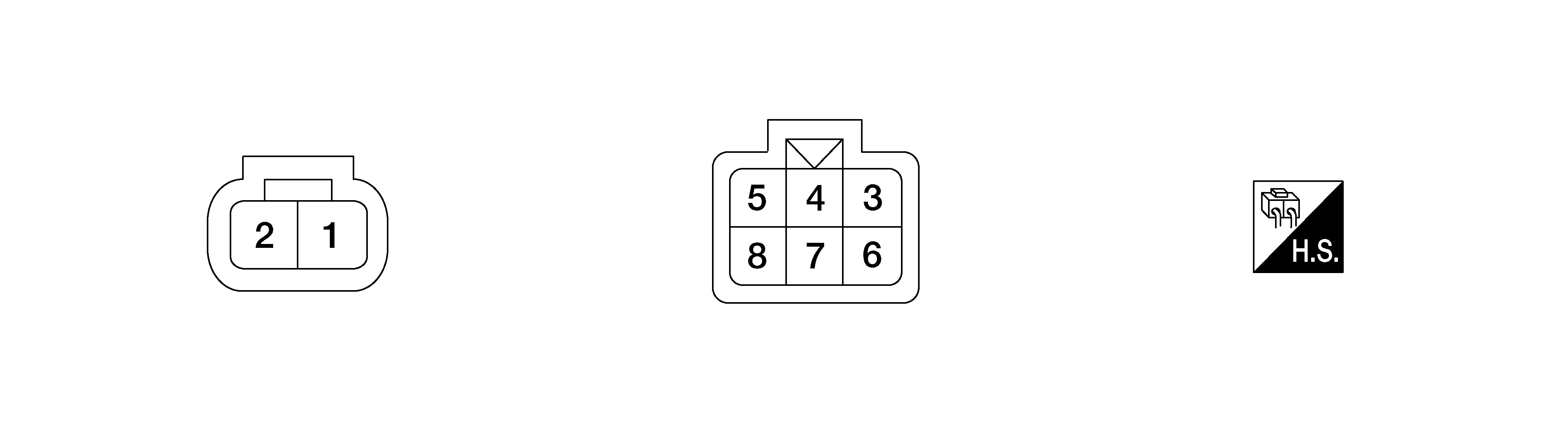

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No.(Wire Color) | Description | Condition | Value(Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 1(W) | Ground | Battery power supply | Input | Always | Battery voltage | |
| 2(B) | Ground | Ground | - | Always | 0 V | |
| 6(BR) | Ground | Ignition power supply | Input | Ignition switch: ON | Battery voltage | |
| Ignition switch: OFF | 0 V | |||||
| 7(R) | - | CAN-Low | Input/Output | - | - | |
| 8(L) | - | CAN-High | Input/Output | - | - | |
