Input Speed Sensor
FUNCTIONS WITHIN THE SYSTEM
The input speed sensor transfers detected input shaft speed to TCM as pulse signal.
INDIVIDUAL FUNCTION WITHIN SYSTEM
The input speed sensor detects input shaft speed.
INDIVIDUAL OPERATION

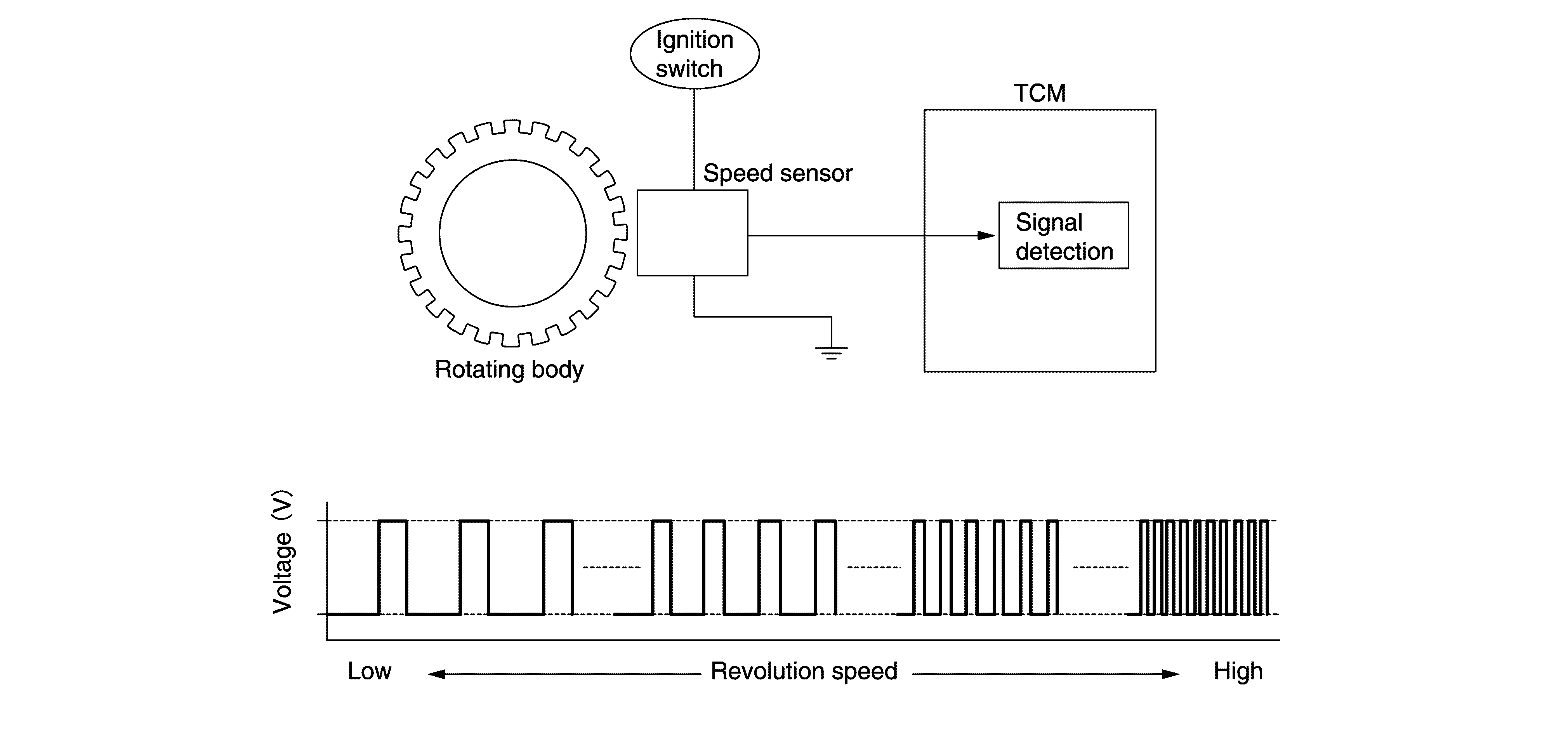

The input speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM judges the rotating body speed based on the pulse signal.

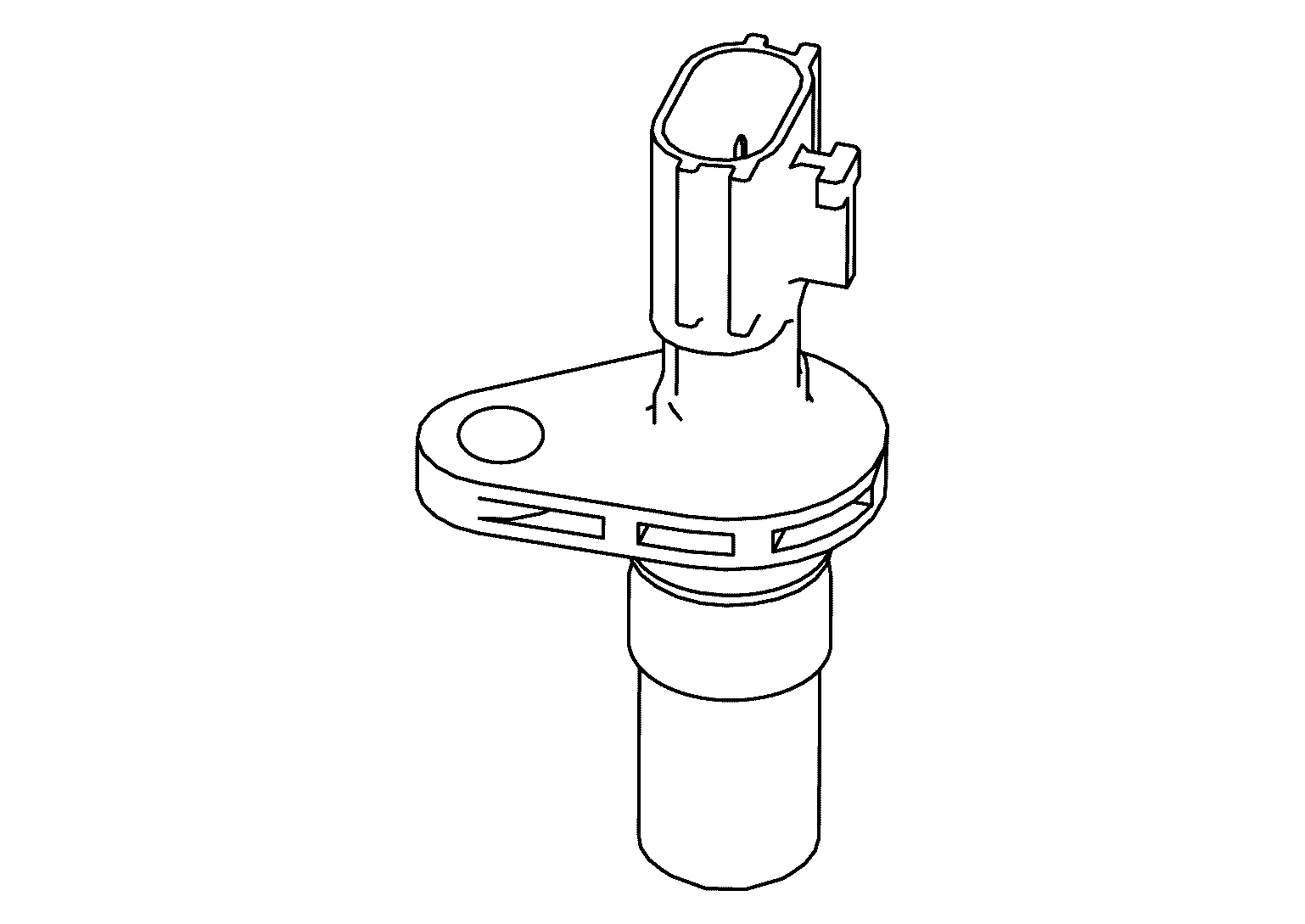

Component Location
The input speed sensor is installed to the front side of transaxle case.
