Exploded View

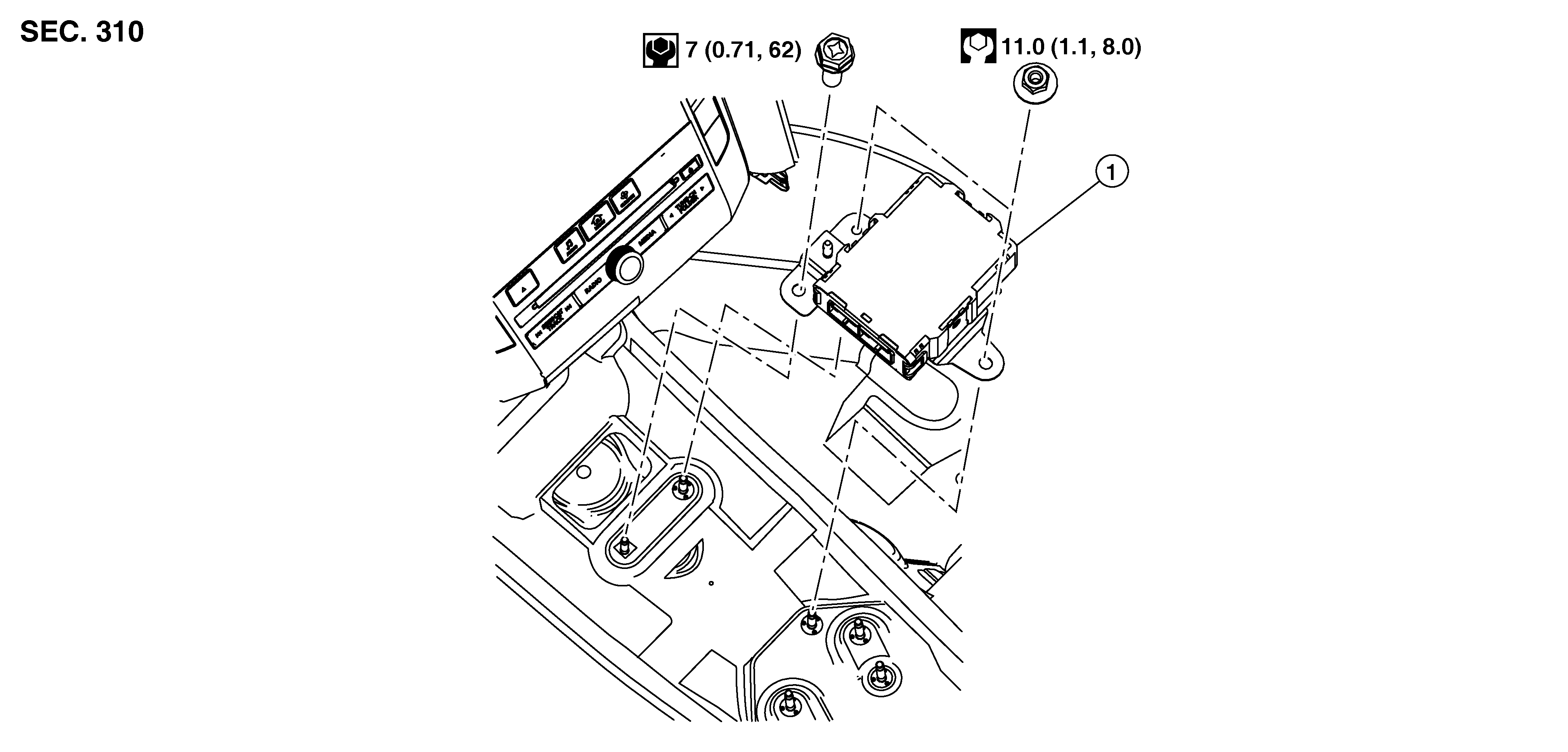

Fig 1: Electric Shift Control Module With Torque Specifications
GNSDB138312Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric shift control module
