Exploded View

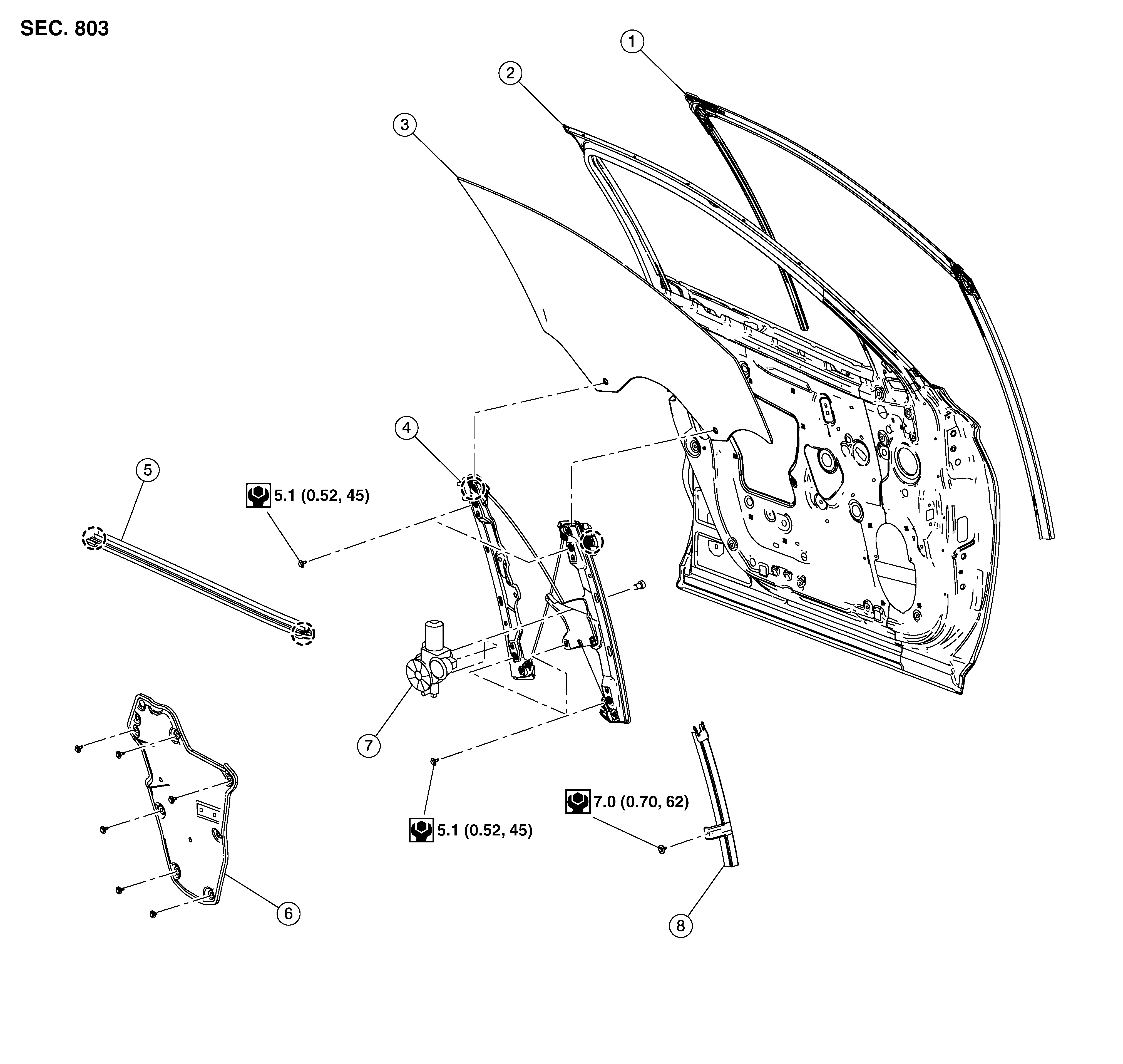

Fig 1: Front Door With Torque Specifications
GNSDB139130Courtesy of NISSAN NORTH AMERICA, INC.
1. Door glass rubber run 2. Door panel 3. Door glass
4. Door glass regulator 5. Door inside seal 6. Vapor barrier
7. Front power window motor 8. Door glass front run
