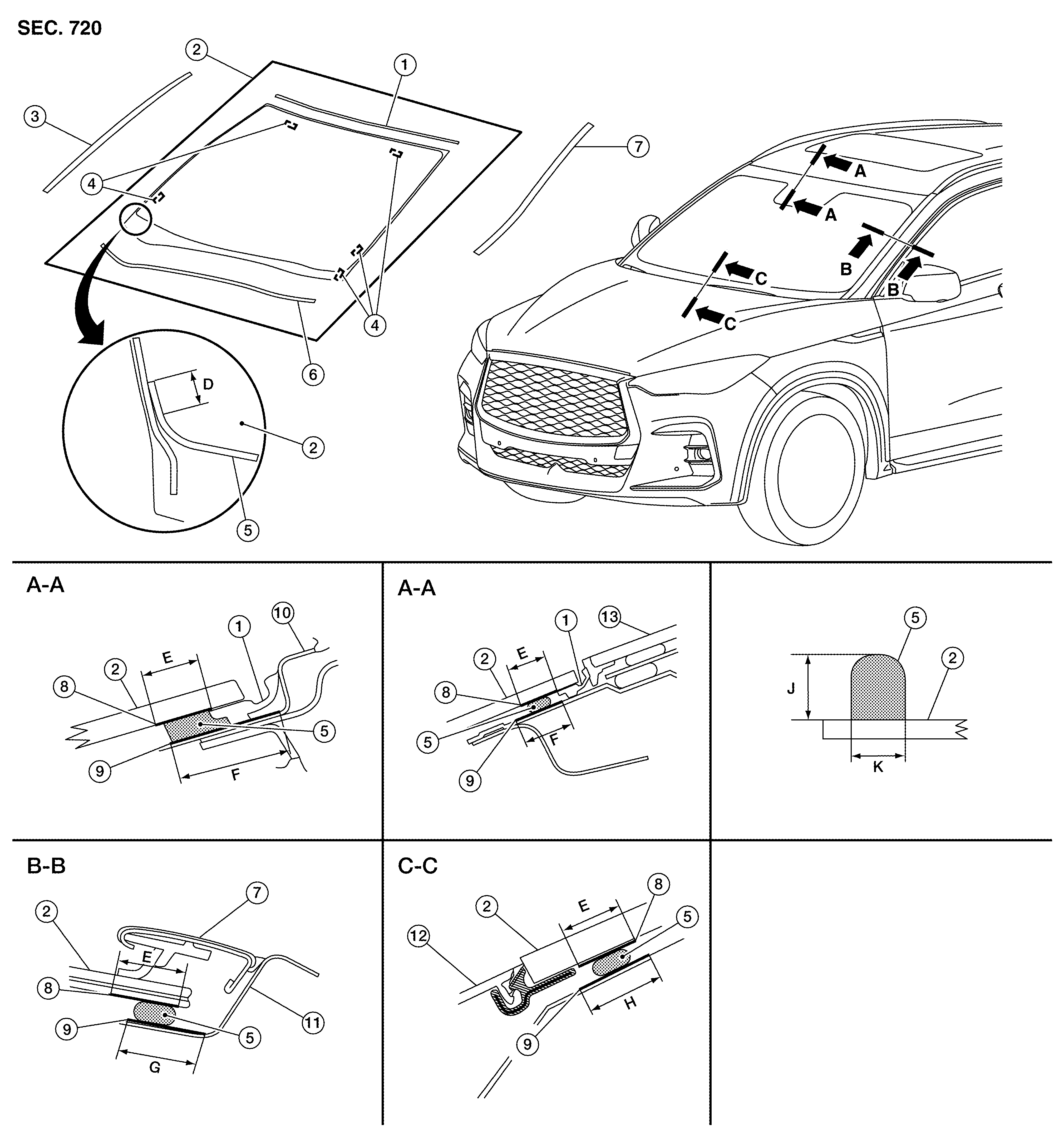

Exploded View
| 1. | Windshield glass molding | 2. | Windshield glass | 3. | Windshield glass side molding (RH) |
| 4. | Spacer | 5. | Adhesive | 6. | Windshield glass lower molding |
| 7. | Windshield glass side molding (LH) | 8. | Glass primer | 9. | Body primer |
| 10. | Metal roof | 11. | Body side outer | 12. | Cowl top cover |
| 13. | Front moonroof glass | D. | 36.17 mm (1.46 in) | E. | 15 mm (0.59 in) |
| F. | 21 mm (0.83 in) | G. | 23 mm (0.91 in) | H. | 20 mm (0.79 in) |
| J. | 12 + 2, - 0 mm (0.47 + 0.08, - 0 in) | K. | 7 + 2, - 0 mm (0.28 + 0.08, - 0 in) |
