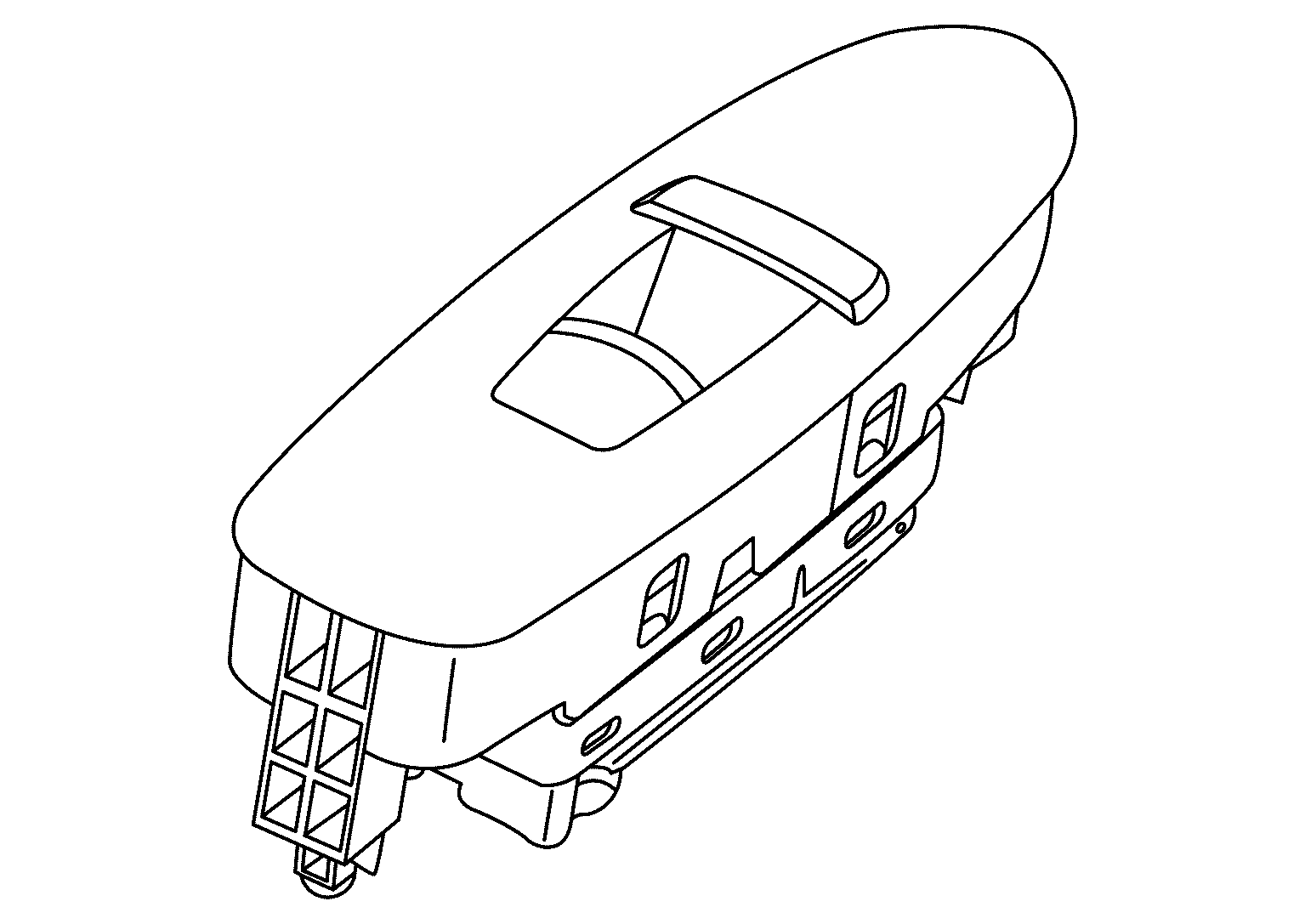

Power Window and Door Lock/Unlock Switch RH

Integrates the module.
Power window and door lock/unlock switch RH transmits AUTO UP/DOWN signal to front power window motor RH.

Courtesy of NISSAN NORTH AMERICA, INC.
Receives AUTO UP/DOWN signal from main power window and door lock/unlock switch and BCM, and then transmits to front power window motor RH.
Receives encoder pulse signal, and then controls anti-pinch system.
Power window and door lock/unlock switch RH is located on the front RH door finisher.
