Reference Value

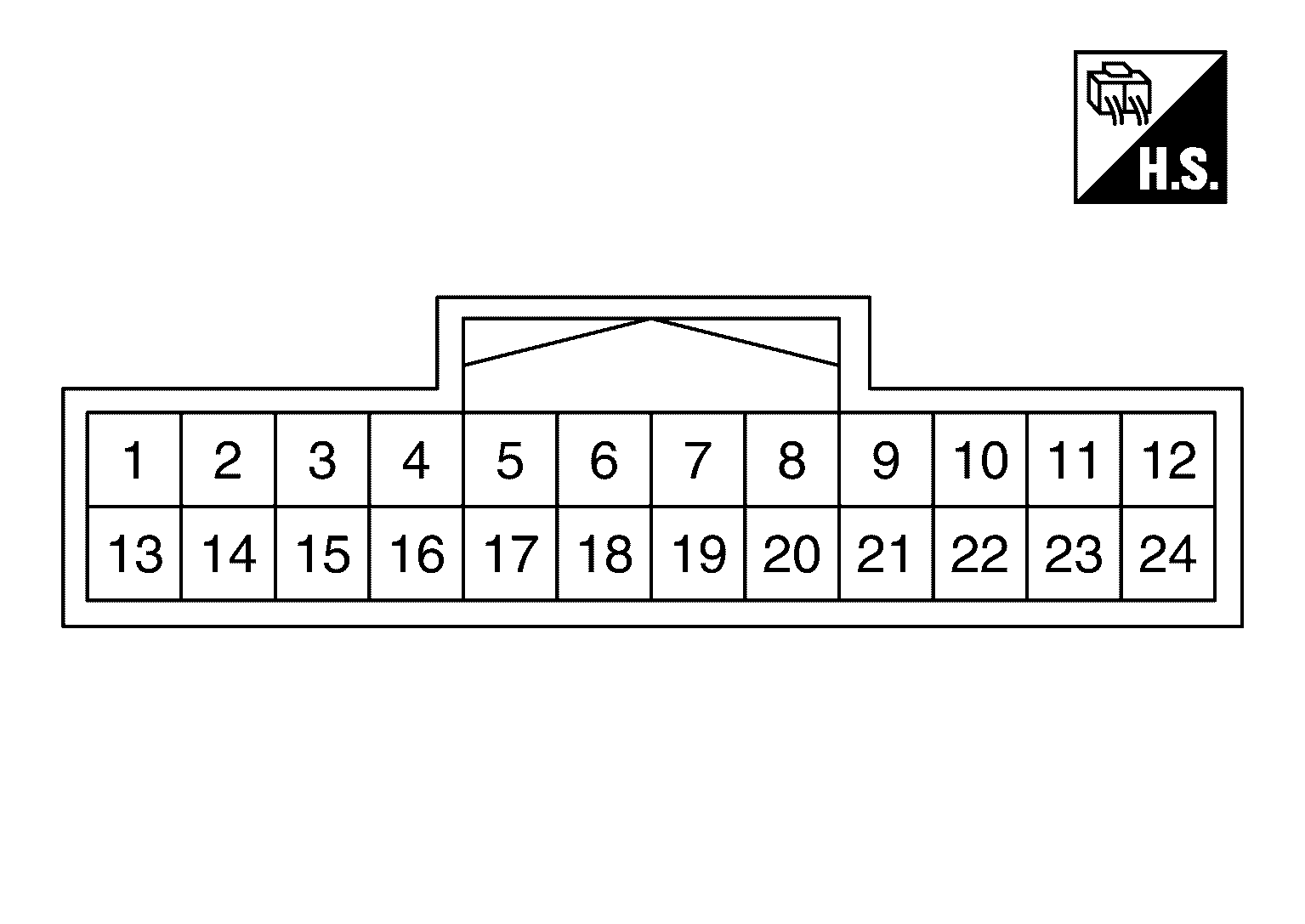

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No.(Wire color) | Description | Condition | Value | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 3(G) | Ground | V-CAN-L | - | - | - | - |
| 4(GR) | V-CAN-H | - | - | - | - | |
| 5(Y) | Drive mode switch (up) | - | - | - | - | |
| 6(G) | Drive mode switch (down) | - | - | - | - | |
| 8(Y) | IC-CAN-L | - | - | - | - | |
| 10(W) | Ignition power supply | Input | Ignition switch ON | 12V battery voltage | ||
| 11(GR) | IC-CAN-H | - | - | - | - | |
| 12(B) | Ground | - | Ignition switch ON | - | Approx. 0 V | |
| 18(L) | Automatic brake hold switch | Input | Ignition switch ON | Automatic brake hold switch is pushing | Approx. 0 V | |
| 20(V) | Automatic brake hold switch indicator | Output | Ignition switch ON | Automatic brake hold function ON | Approx. 4 V | |
| Automatic brake hold function OFF | 12V battery voltage | |||||
