Component Location

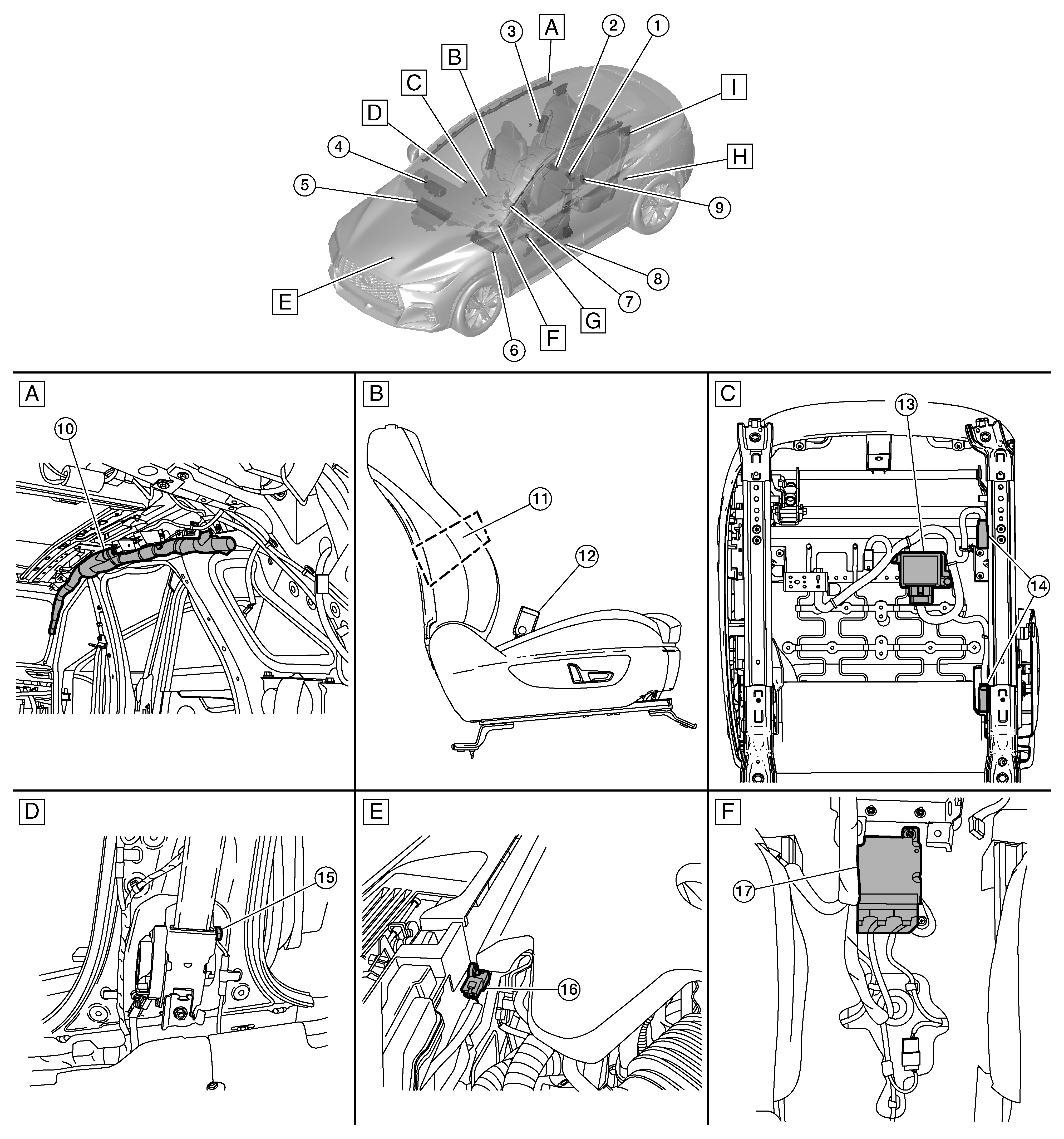

GNSDB140318Courtesy of NISSAN NORTH AMERICA, INC.

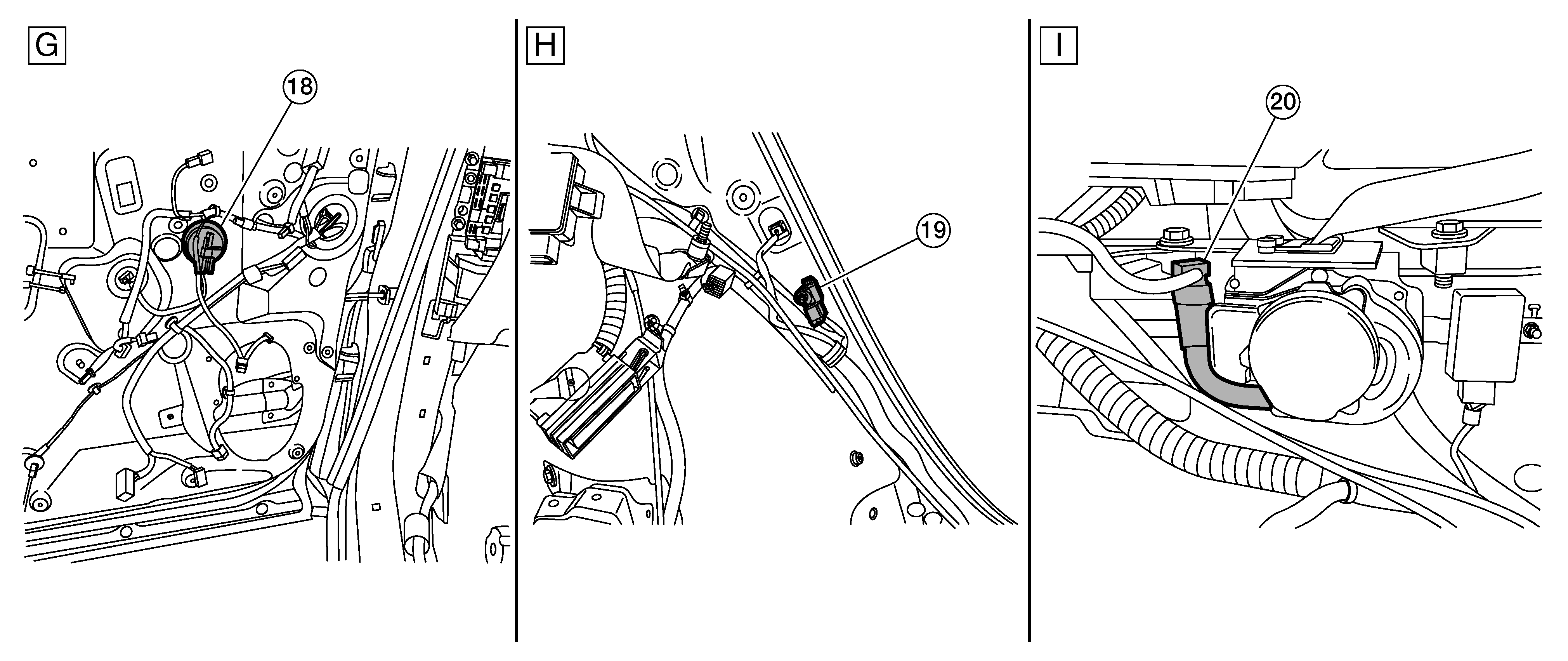

GNSDB140525Courtesy of NISSAN NORTH AMERICA, INC.
A. View with headlining removed B. RH front passenger seat(view with front RH seat removed from vehicle) C. Occupant classification system(view with front RH seat removed from vehicle)
D. View with lower B-pillar finisher removed E. Radiator core support assembly F. View with center console removed
G. View with driver's door finisher removed H. View with lower C-pillar finisher removed I. View with C-pillar luggage side finisher removed
No. Component Function
1. Rear seat belt buckle switch RH The rear seat belt buckle switch RH provides the seat belt buckle signals to the air bag diagnosis sensor unit.
2. Rear seat belt buckle switch (center) The rear seat belt buckle switch (center) provides the seat belt buckle signals to the air bag diagnosis sensor unit.
3. Rear RH side air bag module (LH similar) Refer to Rear Side Air Bag Module .
4. Front passenger air bag module Refer to Front Passenger Air Bag Module .
5. Right knee air bag module Refer to Knee Air Bag Module .
6. Left knee air bag module Refer to Knee Air Bag Module .
7. Driver air bag module Refer to Drivers Air Bag Module .
8. Front side air bag satellite sensor LH (RH similar) Refer to Front Side Air Bag Satellite Sensor .
9. Rear seat belt buckle switch LH The rear seat belt buckle switch LH provides the seat belt buckle signals to the air bag diagnosis sensor unit.
10. Side curtain air bag module RH (LH similar) Refer to Side Curtain Air Bag Module .
11. Side air bag module RH (LH similar) Refer to Side Air Bag Module .
12. Front seat belt buckle switch RH (LH similar) The front seat belt buckle switch RH provides the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter.
13. Occupant classification system control unit Refer to System Description .
14. Occupant classification system sensors Refer to System Description .
15. Front RH seat belt pre-tensioner (LH similar) Refer to Front Seat Belt Pre-Tensioner .
16. Crash zone sensor Refer to Crash Zone Sensor .
17. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
18. Front door satellite sensor LH (RH similar) Refer to Front Door Satellite Sensor .
19. Rear side air bag satellite sensor LH (RH similar) Refer to Rear Side Air Bag Satellite Sensor .
20. Rear LH seat belt pre-tensioner (RH similar) Refer to Rear Seat Belt Pre-Tensioner .
