SRS Component Connectors

DIRECT CONNECT

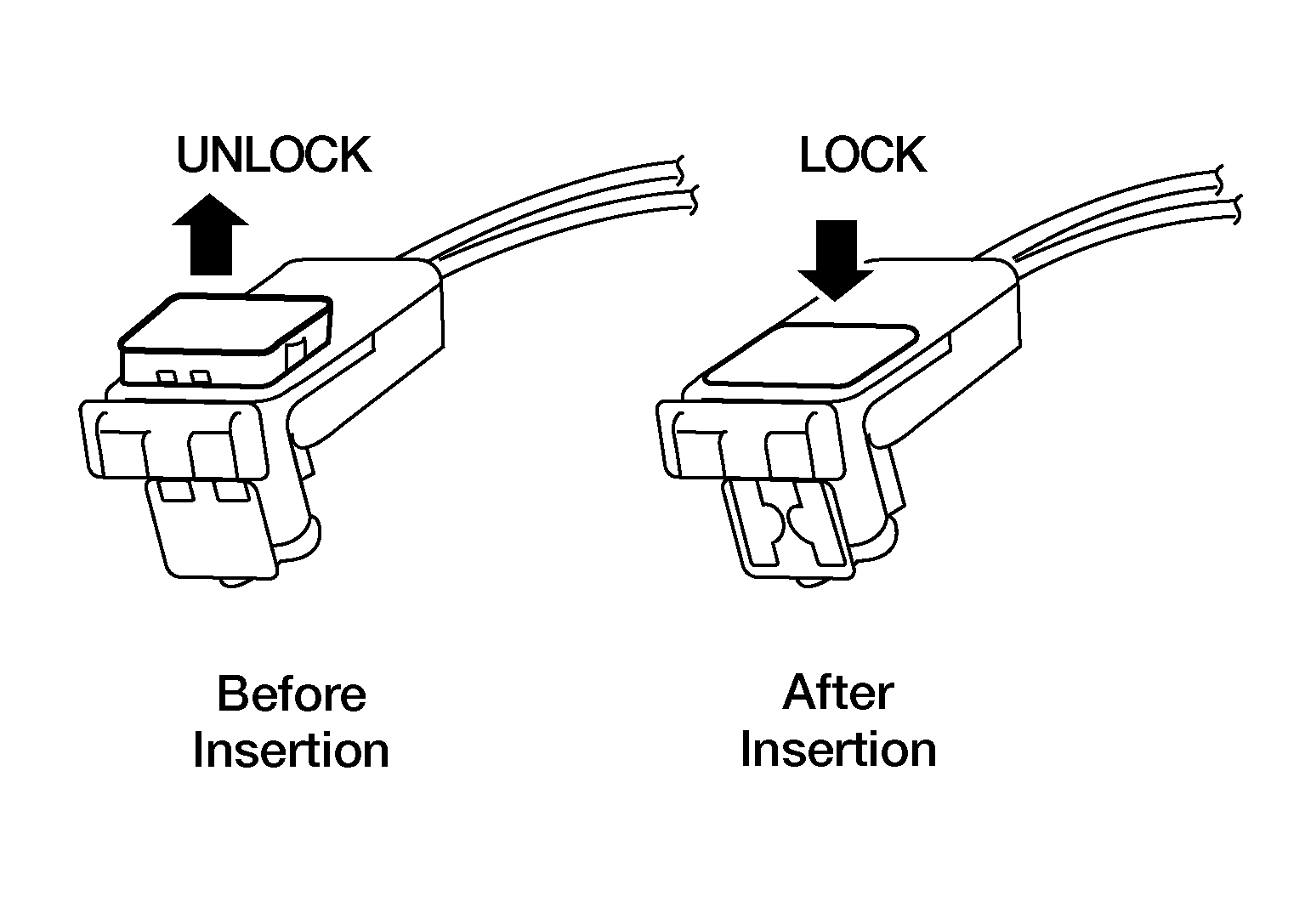

Always pull up to release locking tab prior to removing connector from SRS component. Always push down to lock locking tab after installing connector to SRS component. When locked, the locking tab is level with the connector housing.

Courtesy of NISSAN NORTH AMERICA, INC.

SLIDE DOUBLE LOCKING

• A new style slide double locking type connector is used on certain systems and components especially those related to air bag control systems.
• The slide double locking type connectors help prevent incomplete locking and accidental looseness or disconnection.

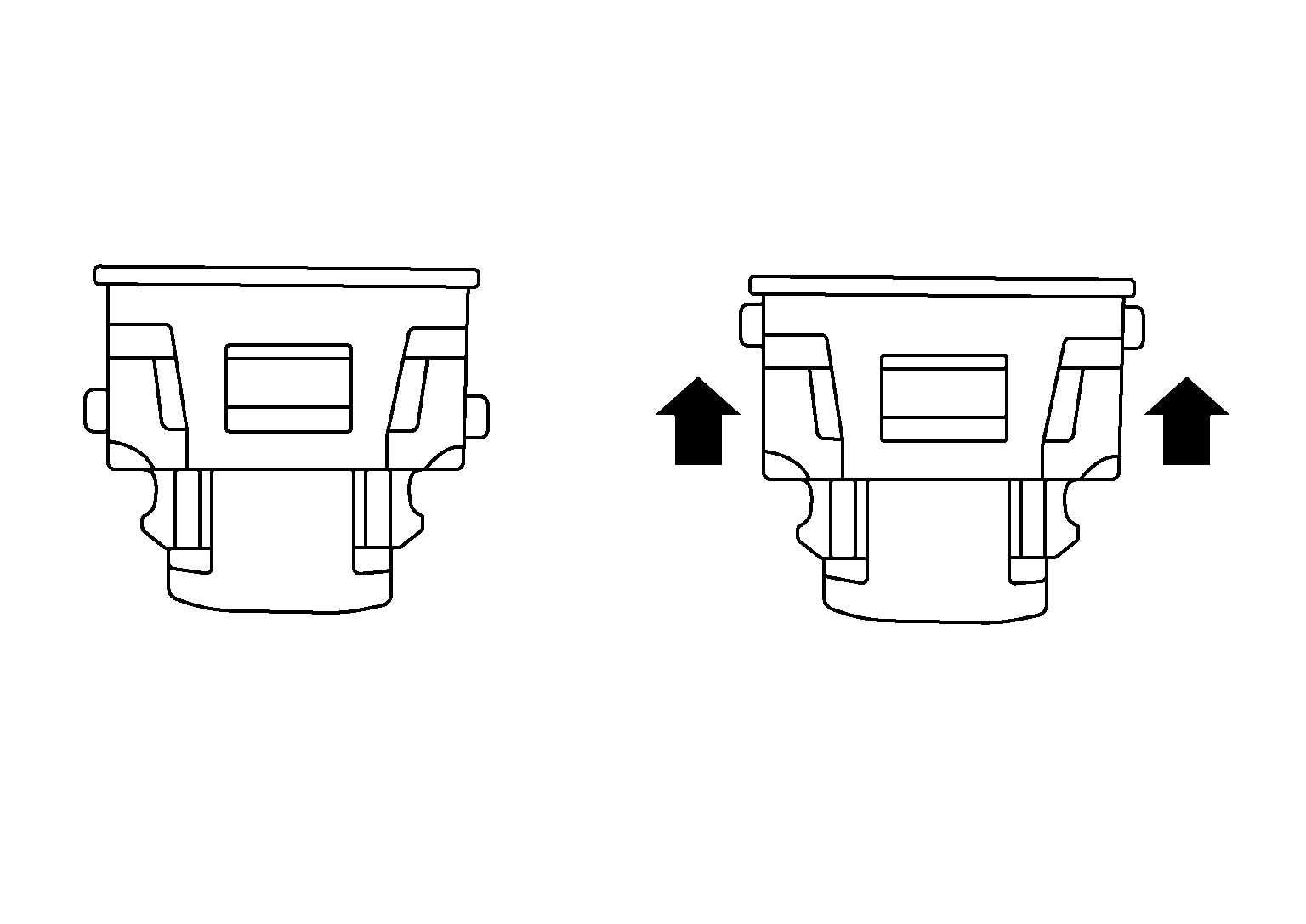

• The slide double locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustration below.

Courtesy of NISSAN NORTH AMERICA, INC.

SPRING LOCK

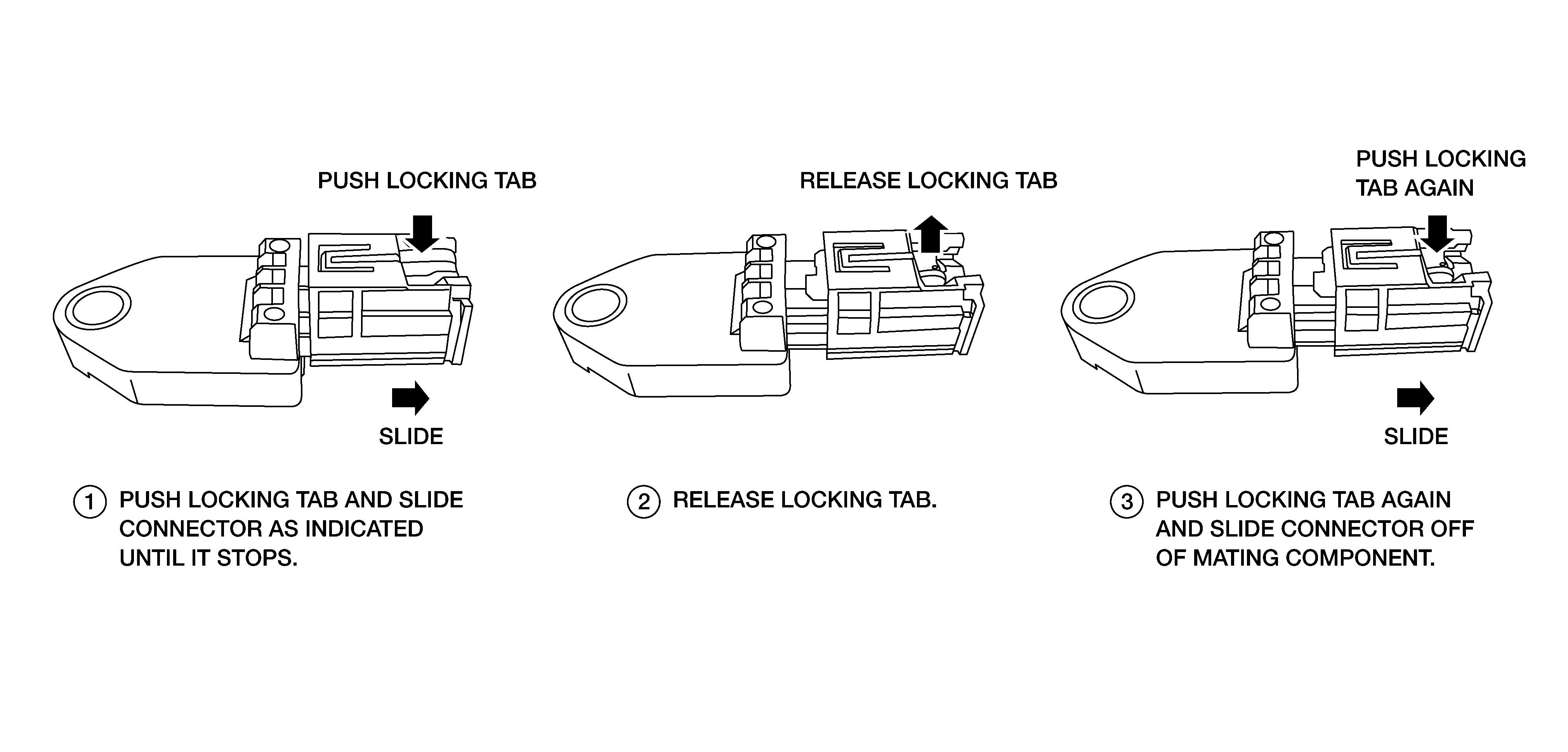

For removal of harness connector, lift tabs to release the lock and remove the harness connector. For installing the harness connector, align the connector to the connector housing, then press firmly on the connector until the locking tabs are engaged.
