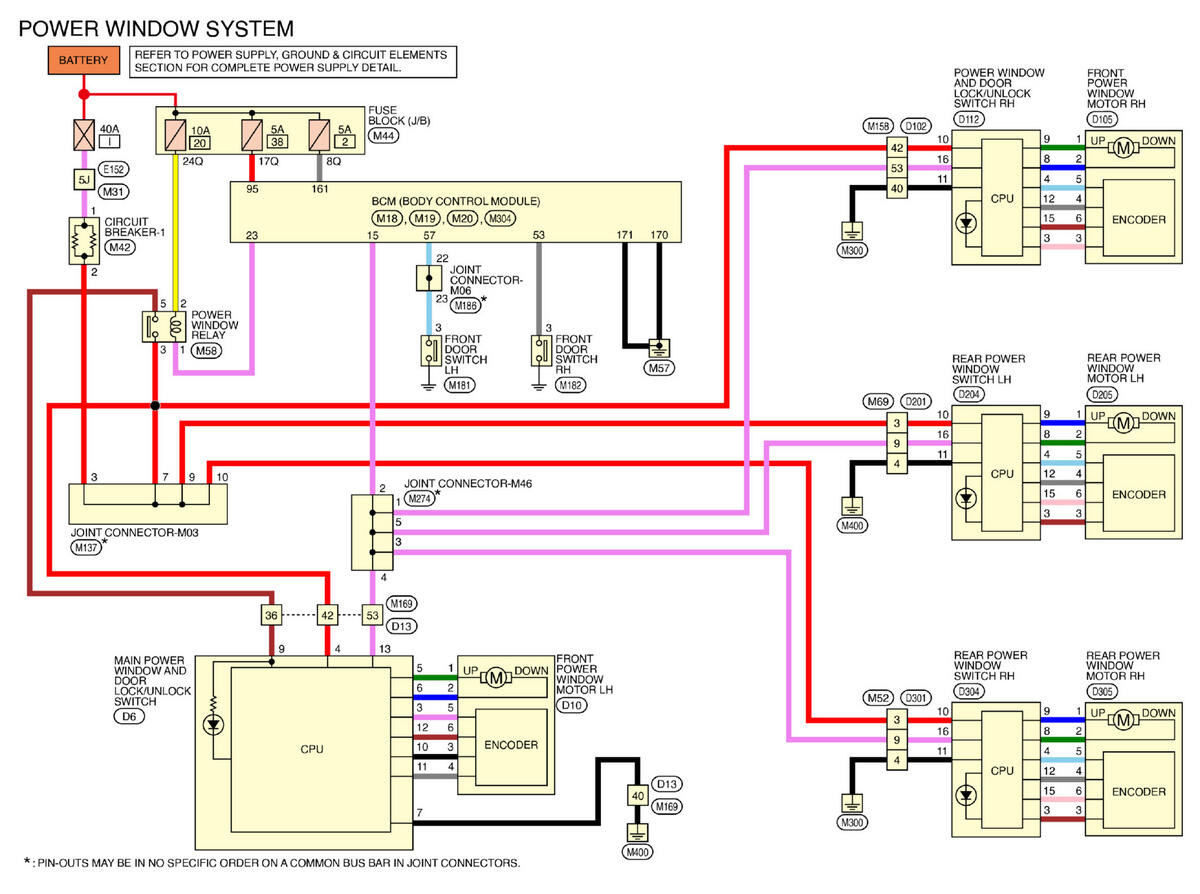

Power Window System Without Intelligent Key System: Wiring Diagram

GNSW108956

Courtesy of NISSAN NORTH AMERICA, INC.
