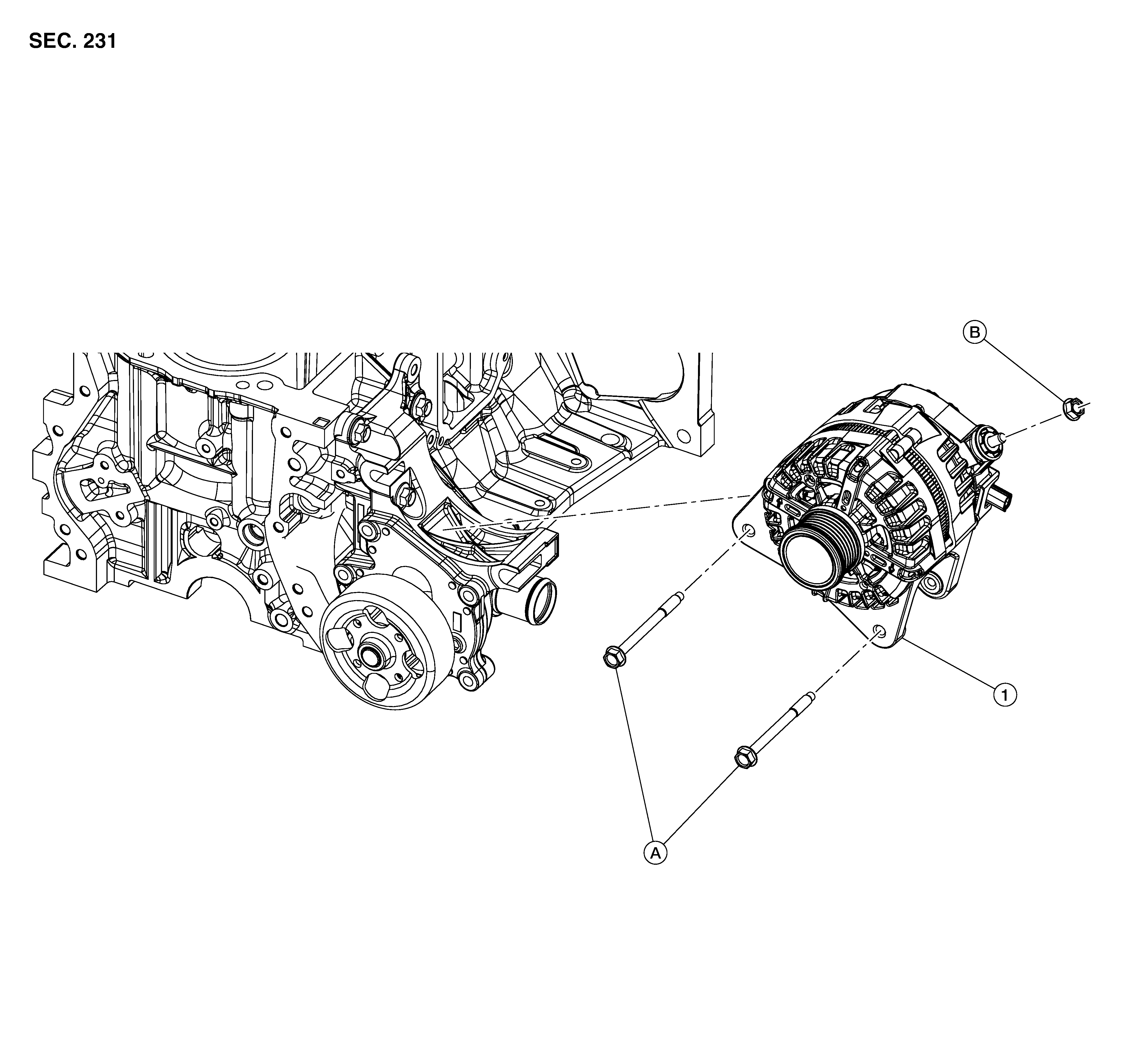

Exploded View

GNSDB138510Courtesy of NISSAN NORTH AMERICA, INC.
1. Generator A. Refer to Removal and Installation  B. Refer to Removal and Installation
