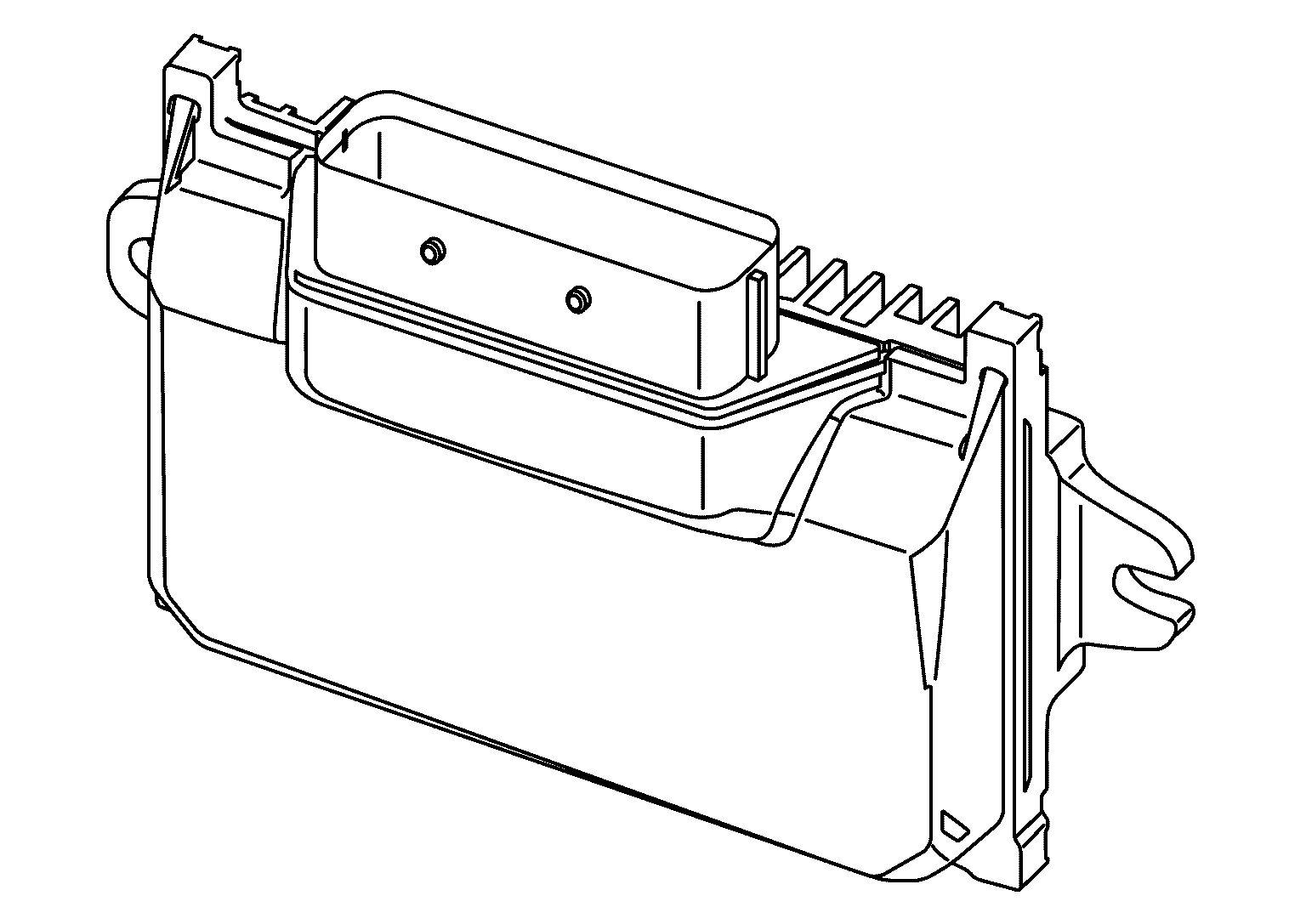

ATR Control Module

FUNCTIONS WITHIN THE SYSTEM

The ATR control module controls ATR actuator according to the signal of ECM and ATR G sensor

INDIVIDUAL FUNCTION WITHIN THE SYSTEM

The ATR control module includes a self-diagnosis function for simplifying trouble diagnosis.

COMPONENT LOCATION

The ATR control module is installed under the center console trim.

Courtesy of NISSAN NORTH AMERICA, INC.
