Exploded View

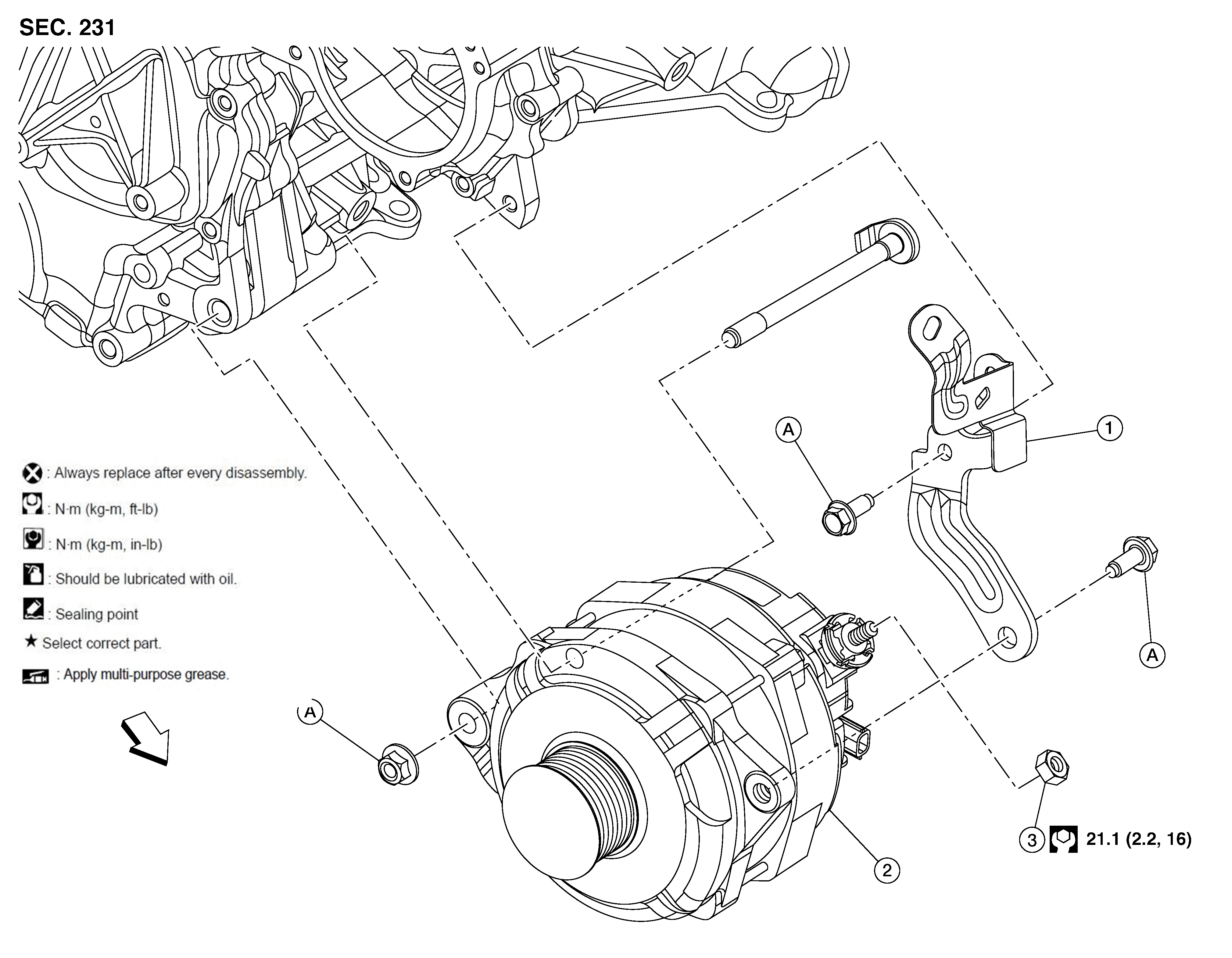

Fig 1: Generator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator bracket	2.	Generator	3.	"B" terminal nut
A.	Refer to Installation .		Front
