Exploded View

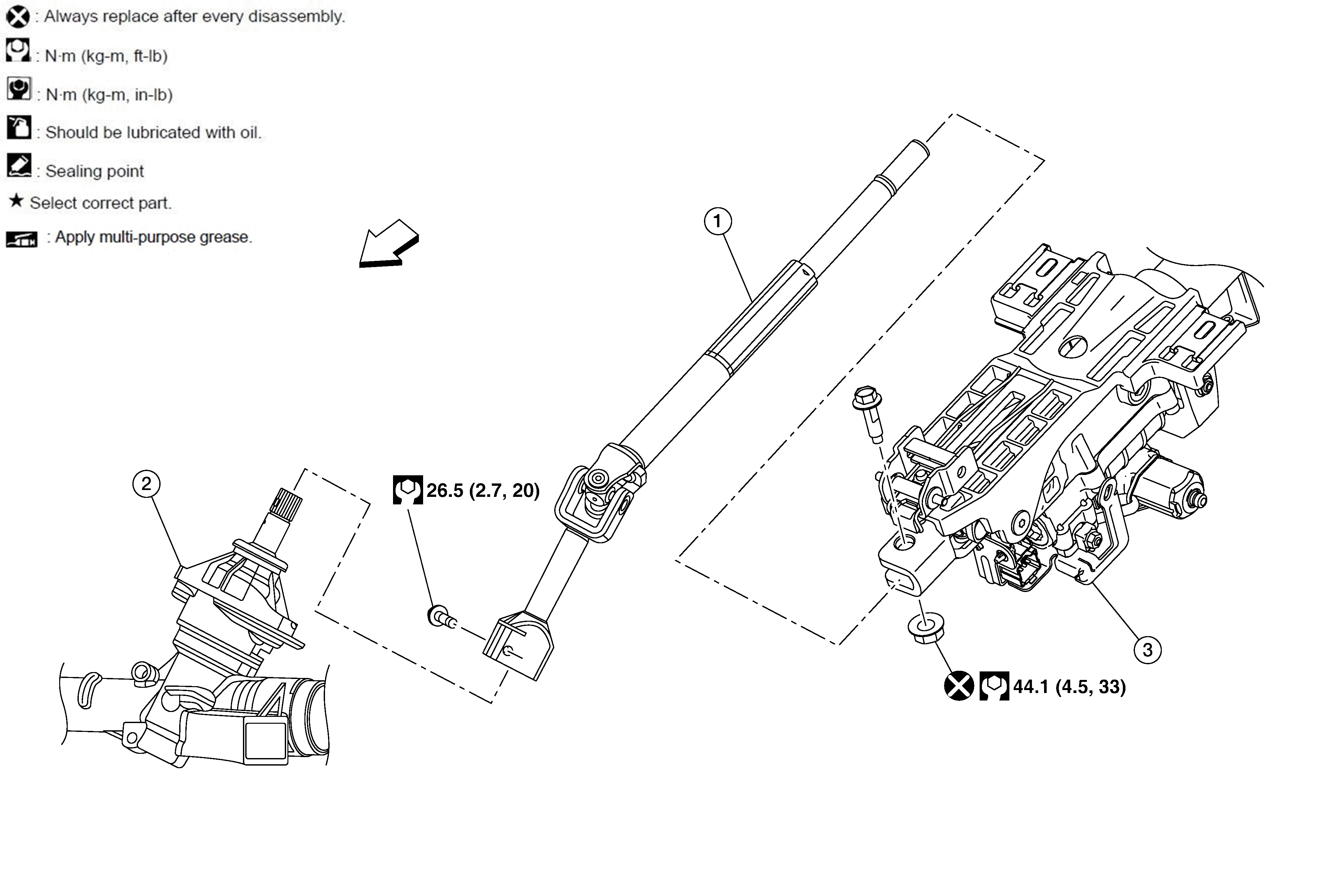

Fig 1: Lower Joint With Torque Specifications
GNSDB139639Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Steering gear 3. Steering column
SYMBOL Front
