System Description

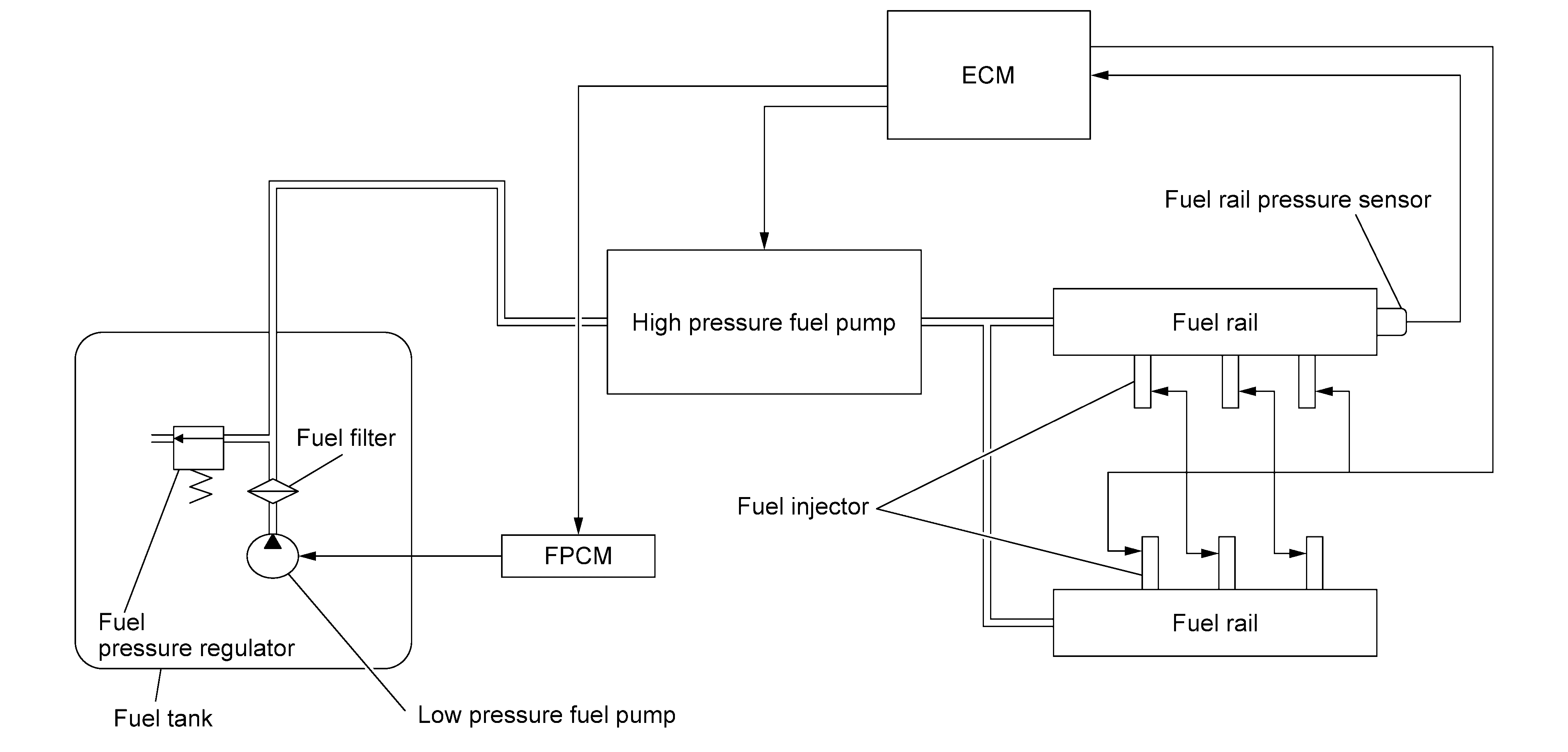

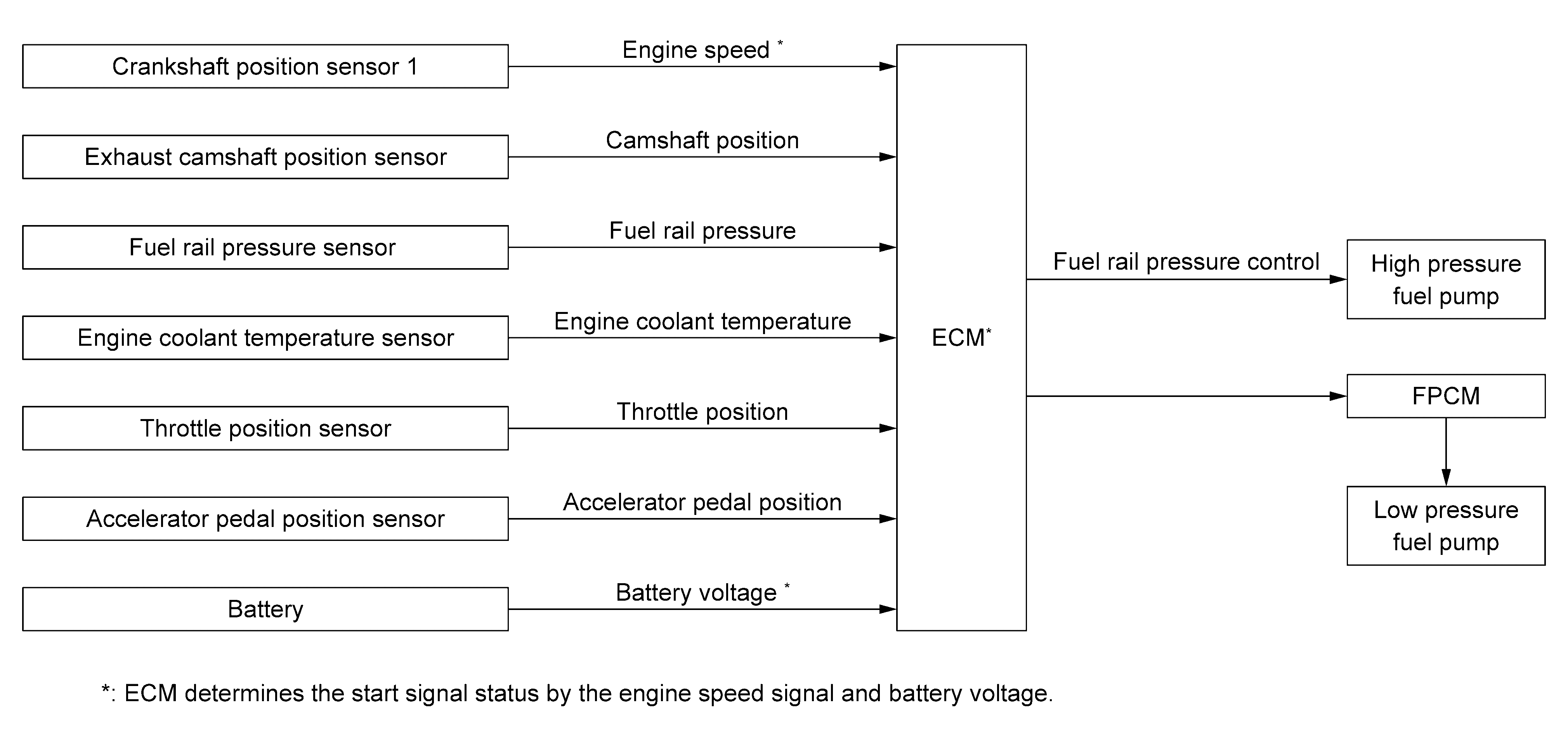

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Crankshaft position sensor 1 | Crankshaft Position Sensor 1 |
| Exhaust camshaft position sensor | Exhaust Camshaft Position Sensor |
| Fuel rail pressure sensor | Fuel Rail Pressure Sensor |
| Engine coolant temperature sensor | Engine Coolant Temperature Sensor |
| Throttle position sensor | Electric Throttle Control Actuator |
| Accelerator pedal position sensor | Accelerator Pedal Position Sensor |
| Battery | ECM receives the battery voltage signal. |
| ECM | ECM (With Barometric Pressure Sensor) |
| High pressure fuel pump | High Pressure Fuel Pump |
| FPCM | Fuel Pump Control Module |
| Low pressure fuel pump | Low Pressure Fuel Pump |
SYSTEM DESCRIPTION
LOW FUEL PRESSURE CONTROL
- The low fuel pressure pump is controlled by ECM. The pumped fuel passes through the fuel filter and is sent to the high pressure fuel pump.
- Low fuel pressure is adjusted by the fuel pressure regulator.
HIGH FUEL PRESSURE CONTROL
The high pressure fuel pump raises the pressure of the fuel sent from the low pressure fuel pump. Actuated by the exhaust camshaft, the high pressure fuel pump activates the high pressure fuel pump solenoid based on a signal received from ECM, and adjusts the amount of discharge by changing the timing of closing the inlet check valve to control fuel rail pressure.
