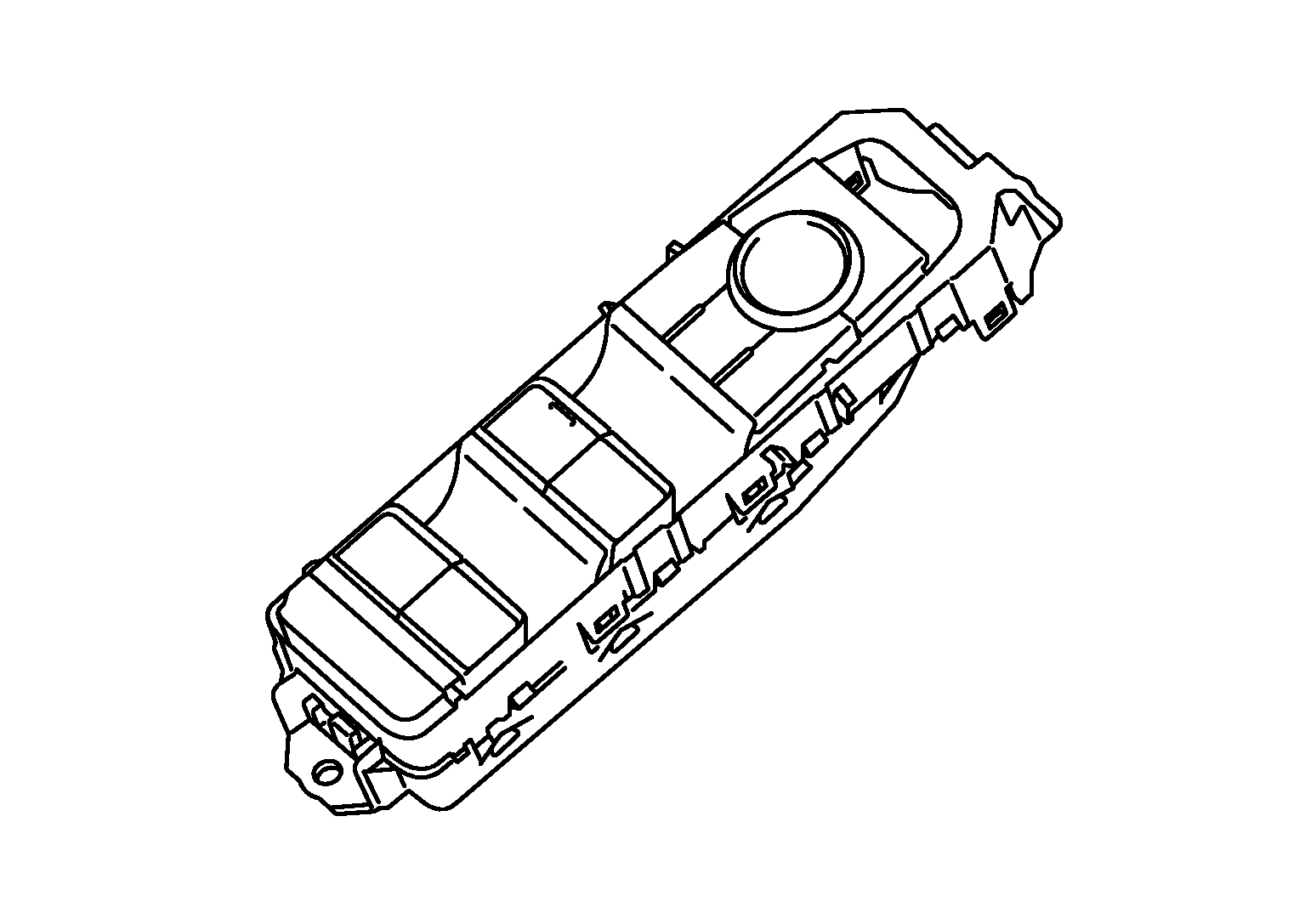

Main Power Window and Door Mirror Switch

Main power window and door mirror switch is installed to front door finisher LH side.

Courtesy of NISSAN NORTH AMERICA, INC.

Main power window and door mirror switch controls all power window motors.
Power window lock switch inhibits power window operation rear power window.
Transmits signal to each power window motor.
Turns ON/OFF the power window lock switch.
When main power window and door mirror switch is operated, it transmits signal to power window motors via LIN communication.
