Component Location

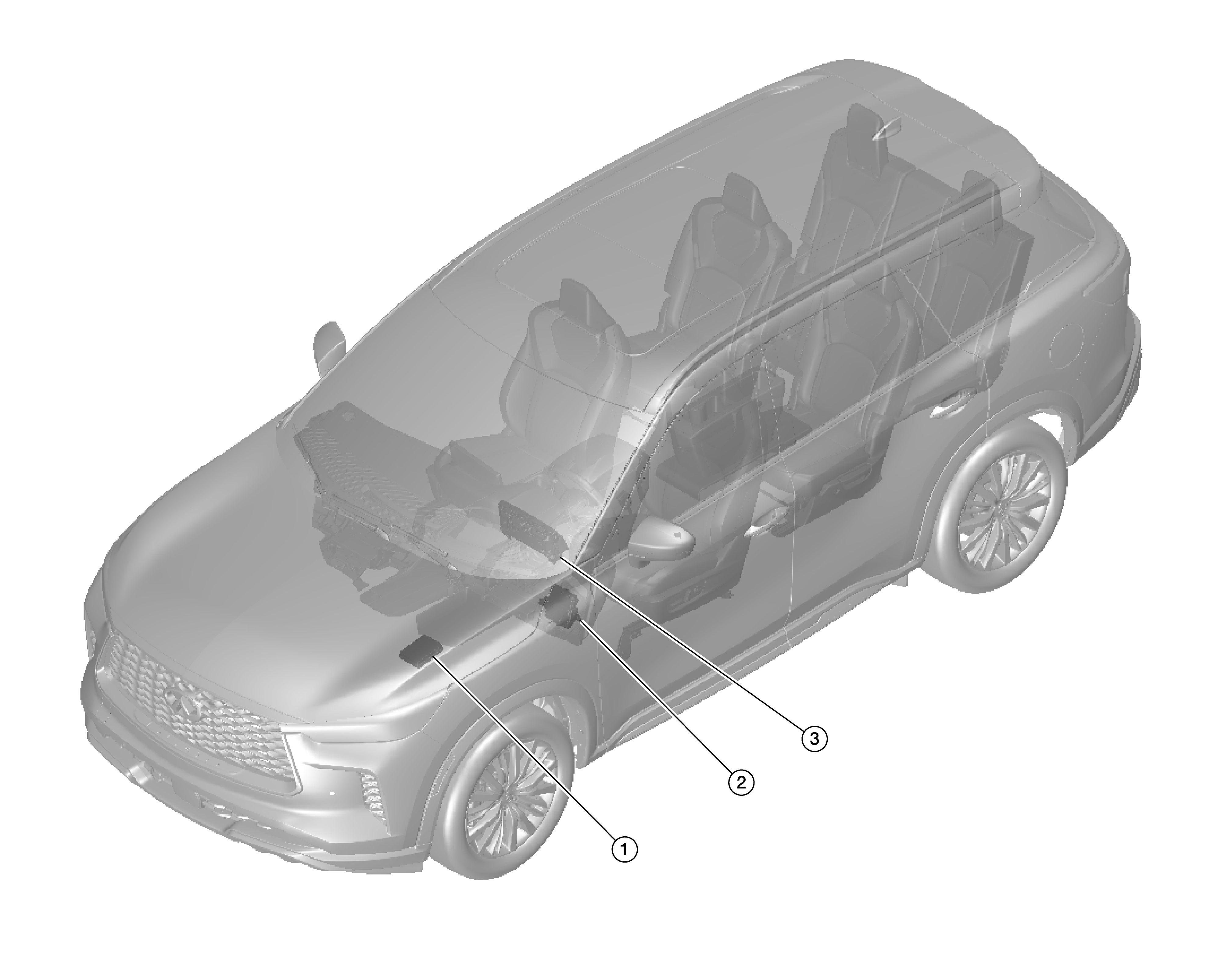

GNSDB139999Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description .
2. BCM (Body Control Module) Refer to System Description .
3. Combination meter Refer to Combination Meter (7 inch information display meter) or Combination Meter (full TFT type) for detailed component location.
