Exploded View

For USA and Canada

Fig 1: EVAP Canister With Torque Specifications - For USA and Canada

GNSDB138272

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister filter hose	2.	EVAP canister bracket A	3.	EVAP canister bracket B
4.	EVAP canister	5.	EVAP control system pressure sensor	6.	EVAP canister vent control valve
7.	EVAP canister vent control valve bracket	8.	EVAP canister vent control valve hose	9.	EVAP canister filter
10.	EVAP canister filter hose	A.	To fuel filler tube. Refer to Exploded View .	B.	To EVAP vent tube. Refer to Exploded View .
C.	To EVAP vacuum delay valve. Refer to Exploded View .		Clip

For Mexico

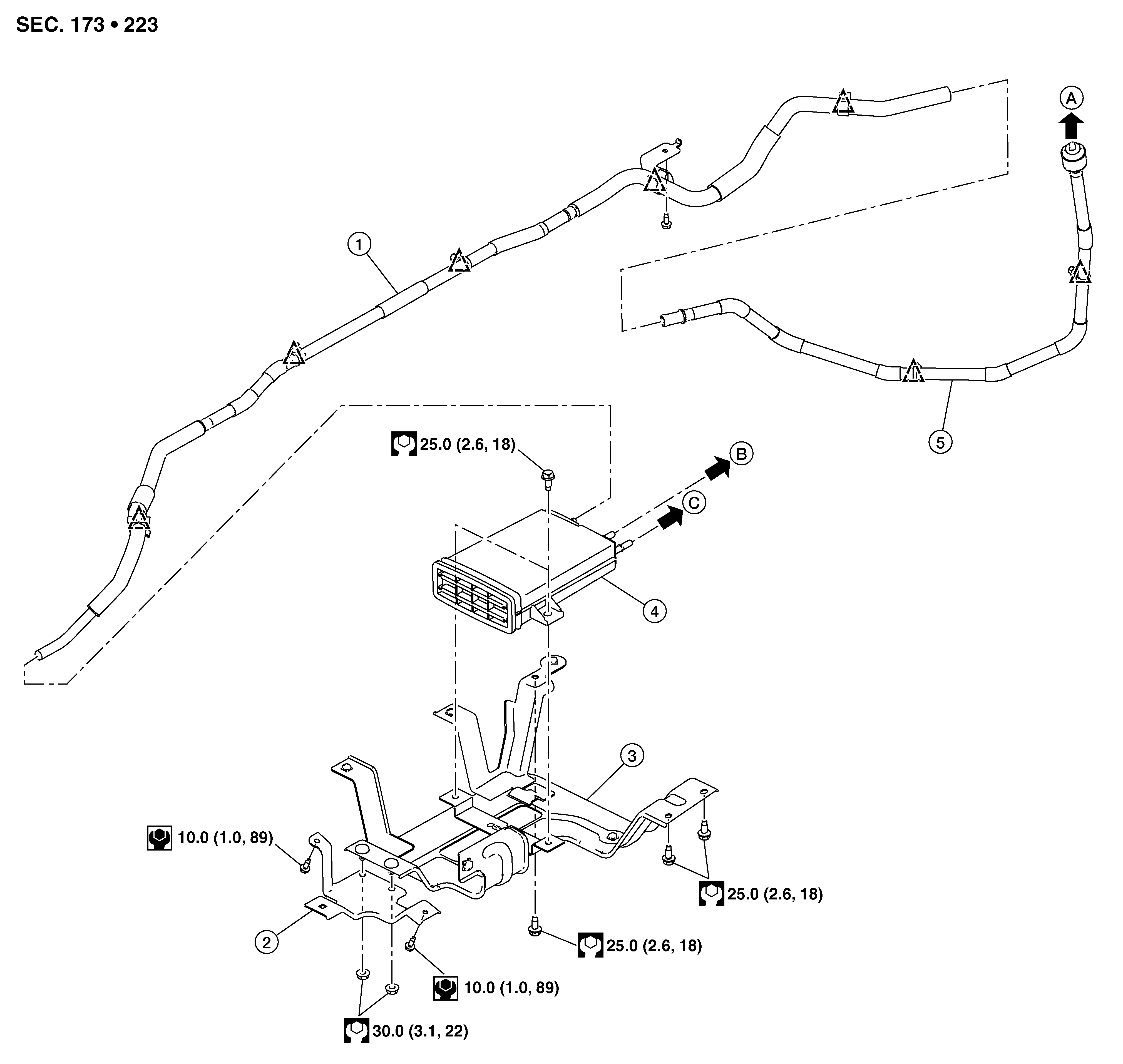

Fig 2: EVAP Canister With Torque Specifications - For Mexico

GNSDB137549

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister hose	2.	EVAP canister bracket A	3.	EVAP canister bracket B
4.	EVAP canister	5.	EVAP canister hose	A.	To fuel filler tube. Refer to Exploded View .
B.	To EVAP vent tube. Refer to Exploded View .	C.	To EVAP vacuum delay valve. Refer to Exploded View .		Clip
