Removal and Installation

WARNING:

Before servicing the SRS, place ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
Do not use air tools or electric tools for servicing.

REMOVAL

Remove the front passenger seat assembly. Refer to Removal and Installation .

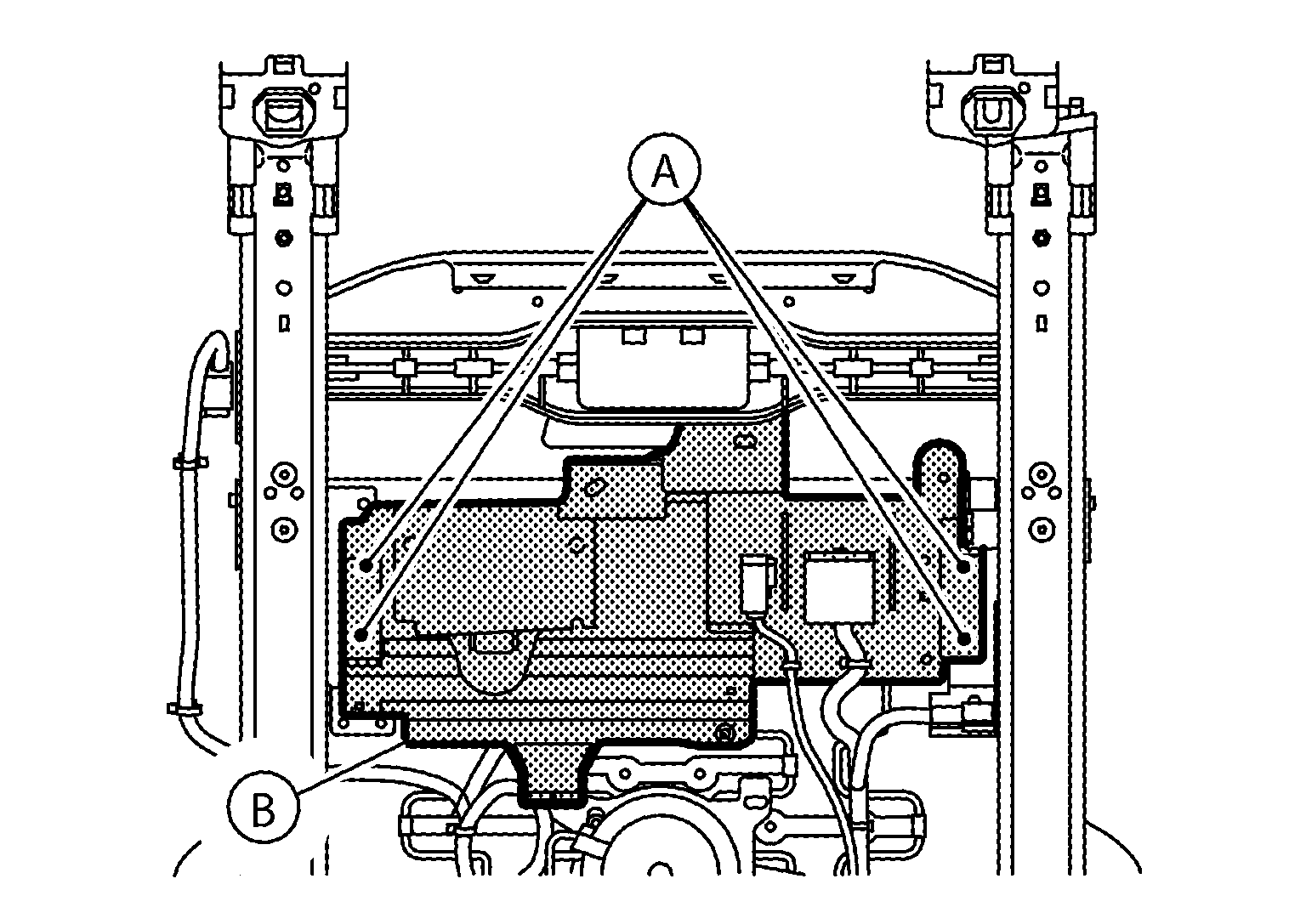

Remove screws (A) and position the center cushion bracket (B) aside to access the occupant classification system control unit.

Courtesy of NISSAN NORTH AMERICA, INC.

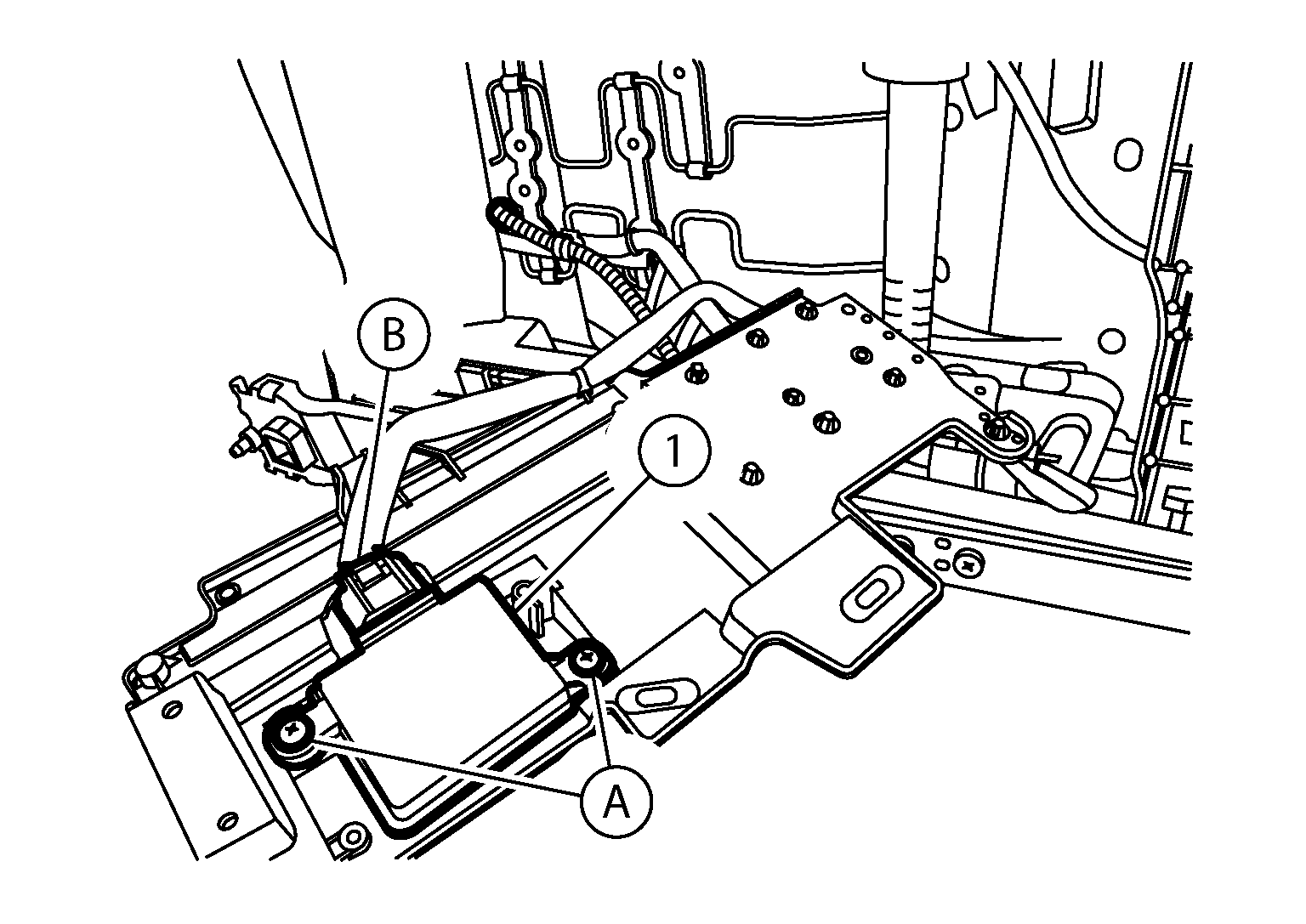

Remove occupant classification system control unit screws (A), then disconnect the harness connector (B), and remove the occupant classification control unit (1).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Replace the occupant classification control unit if it has been dropped or sustained an impact.
- Do not strike the occupant classification control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not damage the harness connector during installation.
After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRS Final Check .
