Removal and Installation

REMOVAL

1. Remove shift selector finisher. Refer to Exploded View .

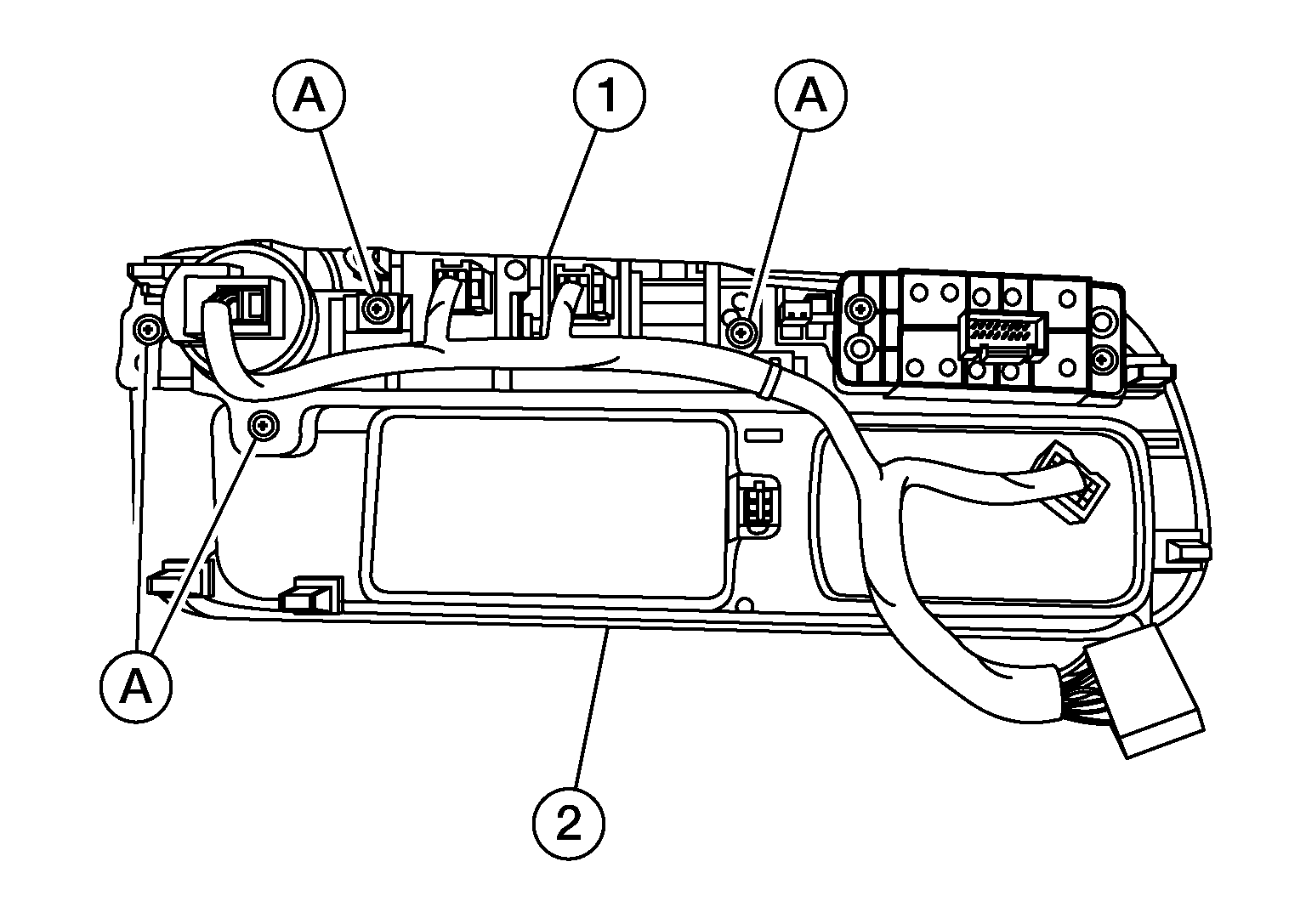

2. Remove screws (A) and switch carrier (1) from shift selector finisher (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Disconnect harness connector from drive mode switch.

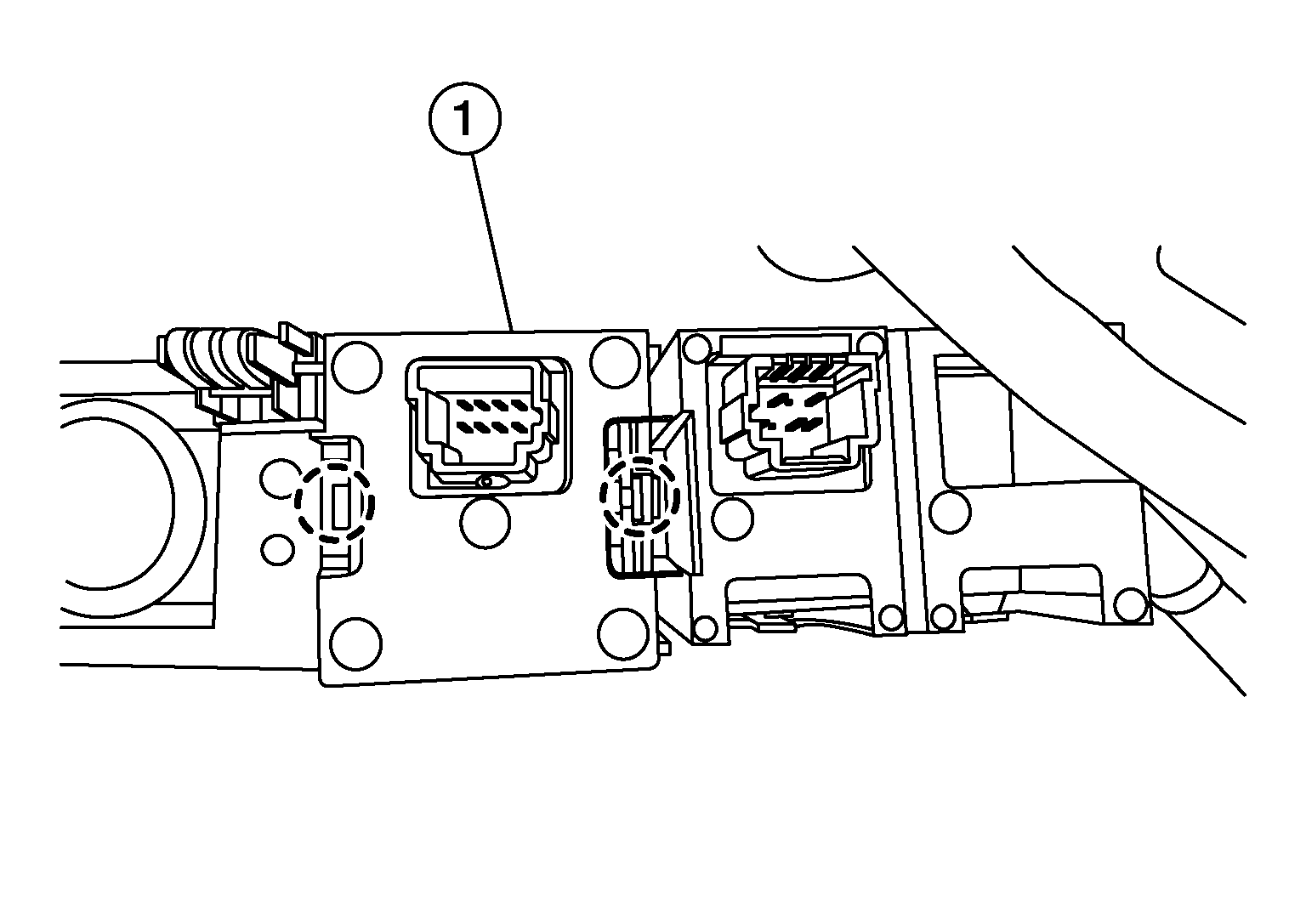

4. Using a suitable tool, release pawls and remove drive mode switch (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
