Component Location

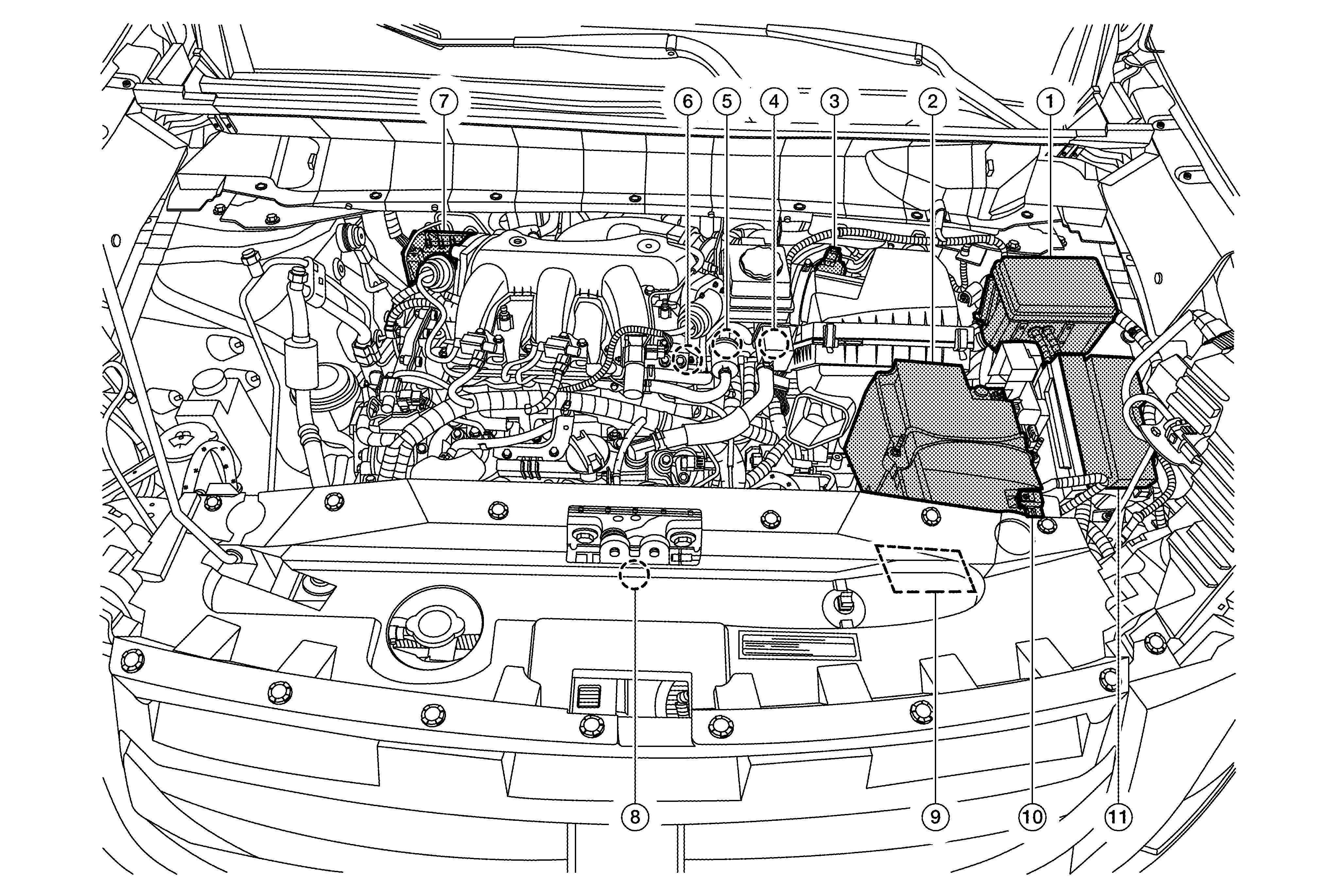

Engine Room Component

GNSDB137213Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL IPDM E/R SYMBOL 12 V Battery SYMBOL Mass air flow sensor (with intake air temperature sensor)
SYMBOL Brake booster pressure sensor SYMBOL Engine coolant temperature sensor SYMBOL Crankshaft position sensor 2
SYMBOL ABS actuator and electric unit (control unit) SYMBOL Hood switch SYMBOL ECM
SYMBOL Battery current sensor SYMBOL Relay box

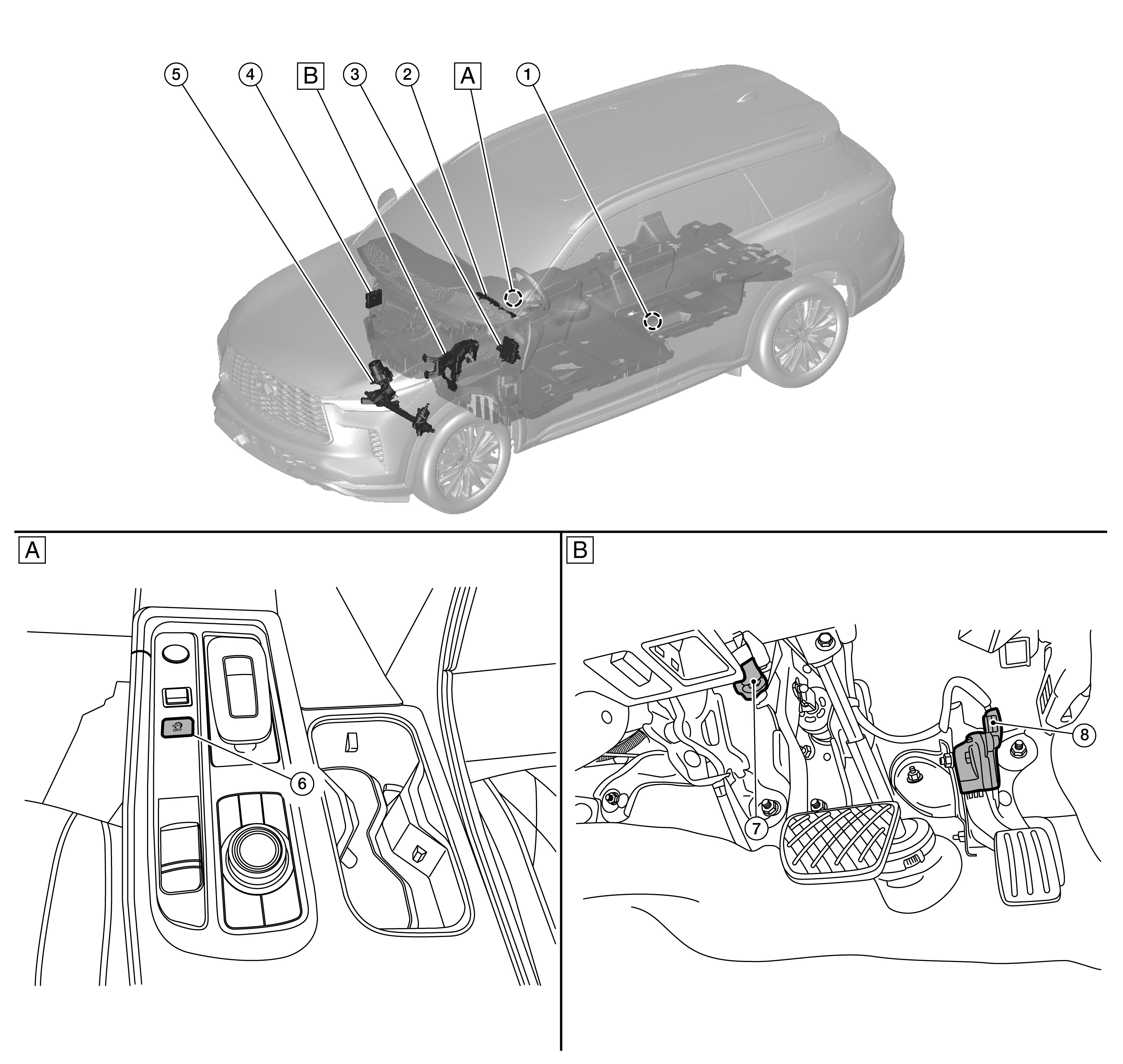

Body Compartment

GNSDB139784Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Center console area SYMBOL Pedal periphery
SYMBOL Door switch (driver side) SYMBOL Combination meter SYMBOL BCM
SYMBOL A/C auto amp. SYMBOL EPS control unit SYMBOL Stop/start OFF switch
SYMBOL Stop lamp switch SYMBOL Accelerator pedal position sensor
