Switch Name and Function

SWITCHES AND INDICATORS

Courtesy of NISSAN NORTH AMERICA, INC.

SYSTEM CONTROL CONDITION DISPLAY

Stop/start Indicator Lamp Status

System condition	Condition	Stop/start indicator lamp	Warning chime

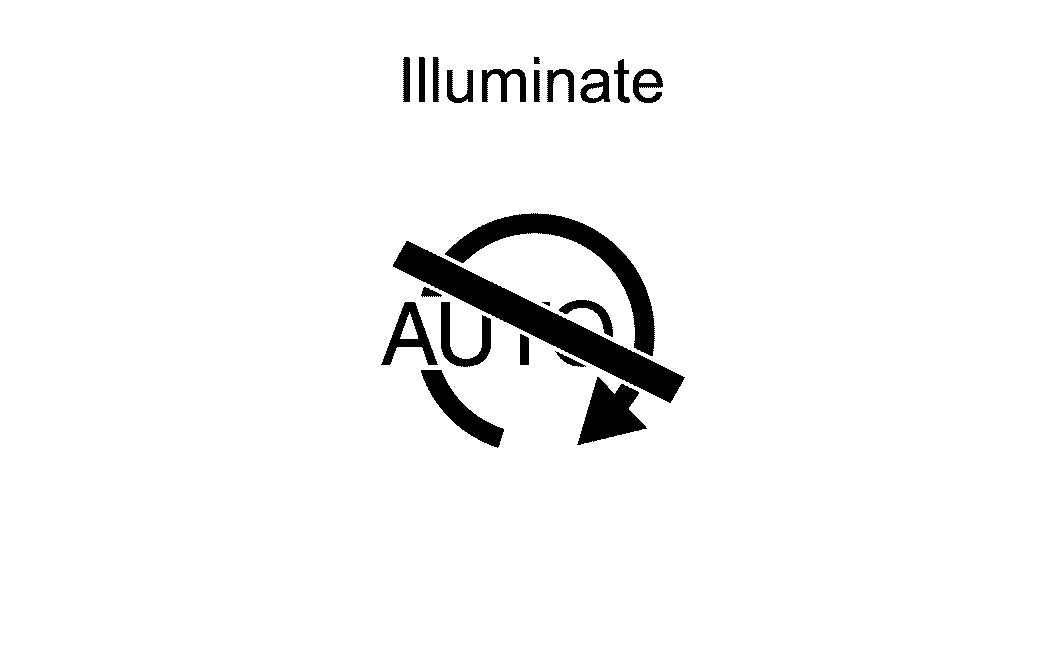

Operate	Normal	Illuminate	-
	Hood open *	High speed blinking	Sound
Normal operation: Stop/Start system inhibited state	System conditions excluded failure are not satisfied. (Battery state of charge, A/C steering operation, driver's seat belt is unbuckled etc.)	Illuminate Courtesy of NISSAN NORTH AMERICA, INC.	-
Fail-Safe	Starter motor operation counter: too much	Slow speed blinking	-
	Malfunction of stop/start system	Slow speed blinking	-

*: Engine is stalled after alert for 1.5 seconds.

Stop/start Indicator Status (Information Display)

System condition		Vehicle condition	Warning chime	Stop/start indicator
Operate		Normal	-	Courtesy of NISSAN NORTH AMERICA, INC.
The engine does not restart	With intelligent key system	Hood open *1	Sound	Courtesy of NISSAN NORTH AMERICA, INC.
The stop/start system is OFF		When the stop/start OFF switch is ON. *2	-	Courtesy of NISSAN NORTH AMERICA, INC.

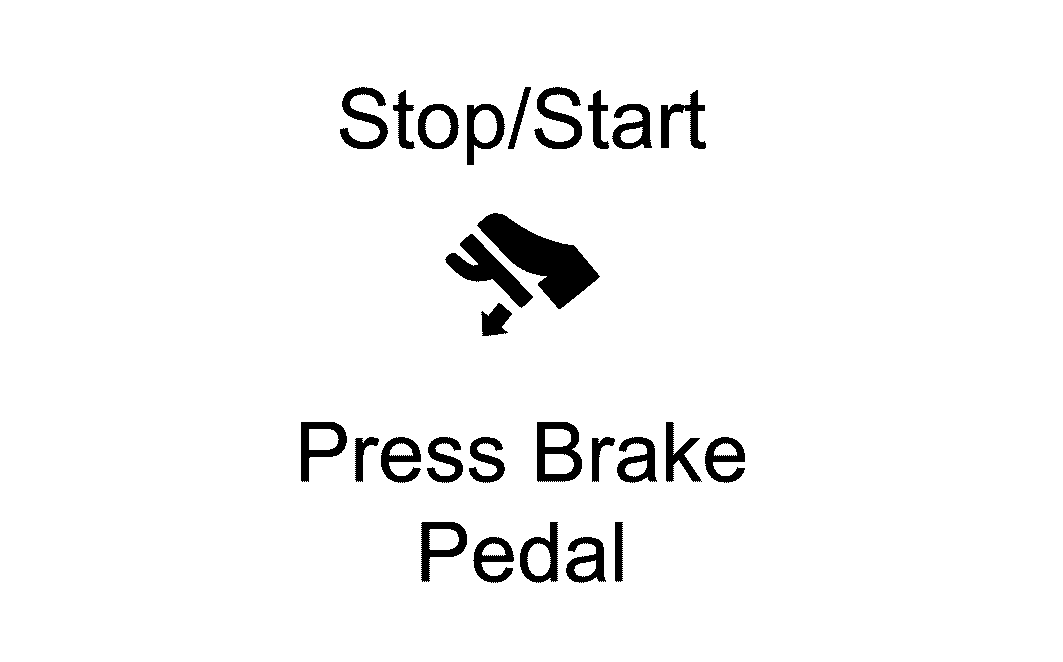

		When the brake pedal is not enough pressure.	-	Courtesy of NISSAN NORTH AMERICA, INC.

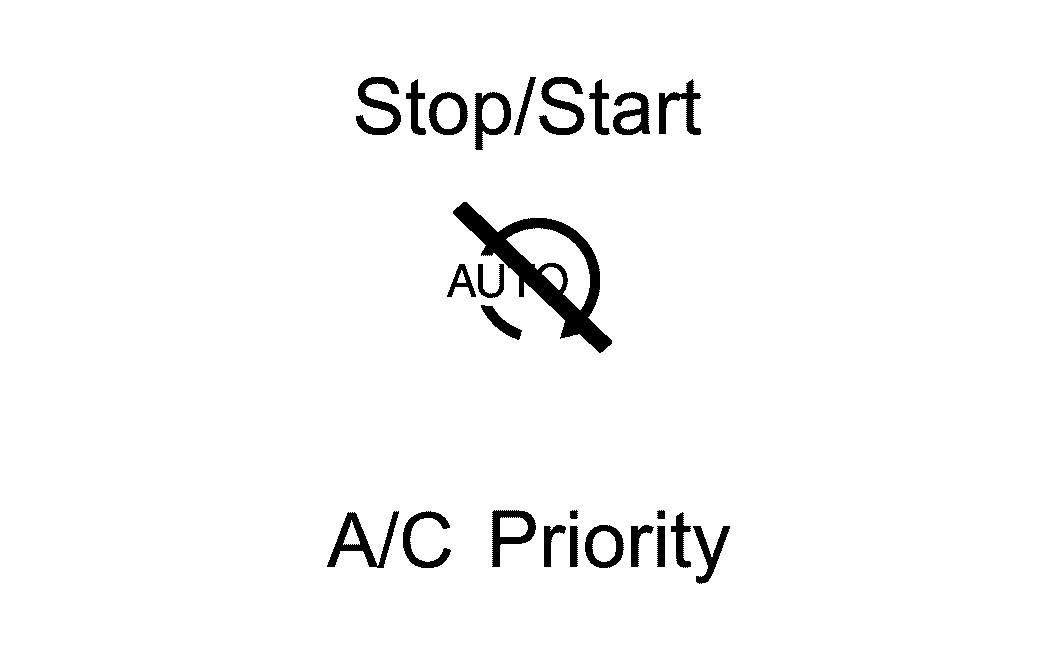

		When A/C is prioritized.	-	Courtesy of NISSAN NORTH AMERICA, INC.

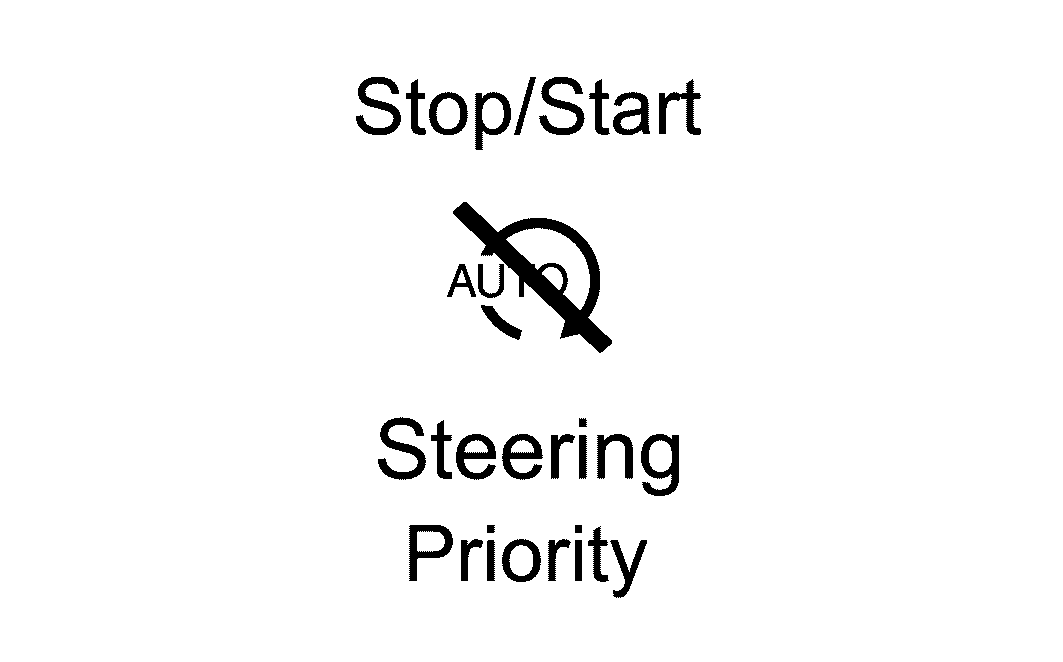

		When the steering wheel is being operated.	-	Courtesy of NISSAN NORTH AMERICA, INC.
		Others	-	-
The stop/start system is ON.		When the stop/start OFF switch is OFF. *3	-	Courtesy of NISSAN NORTH AMERICA, INC.
Fail-Safe		Starter motor operation counter: too much	-	Courtesy of NISSAN NORTH AMERICA, INC.
		Malfunction of stop/start system	-

*1: Engine is stalled after alert for 1.5 seconds. *2: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from OFF to ON. *3: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from ON to OFF.
