Exploded View

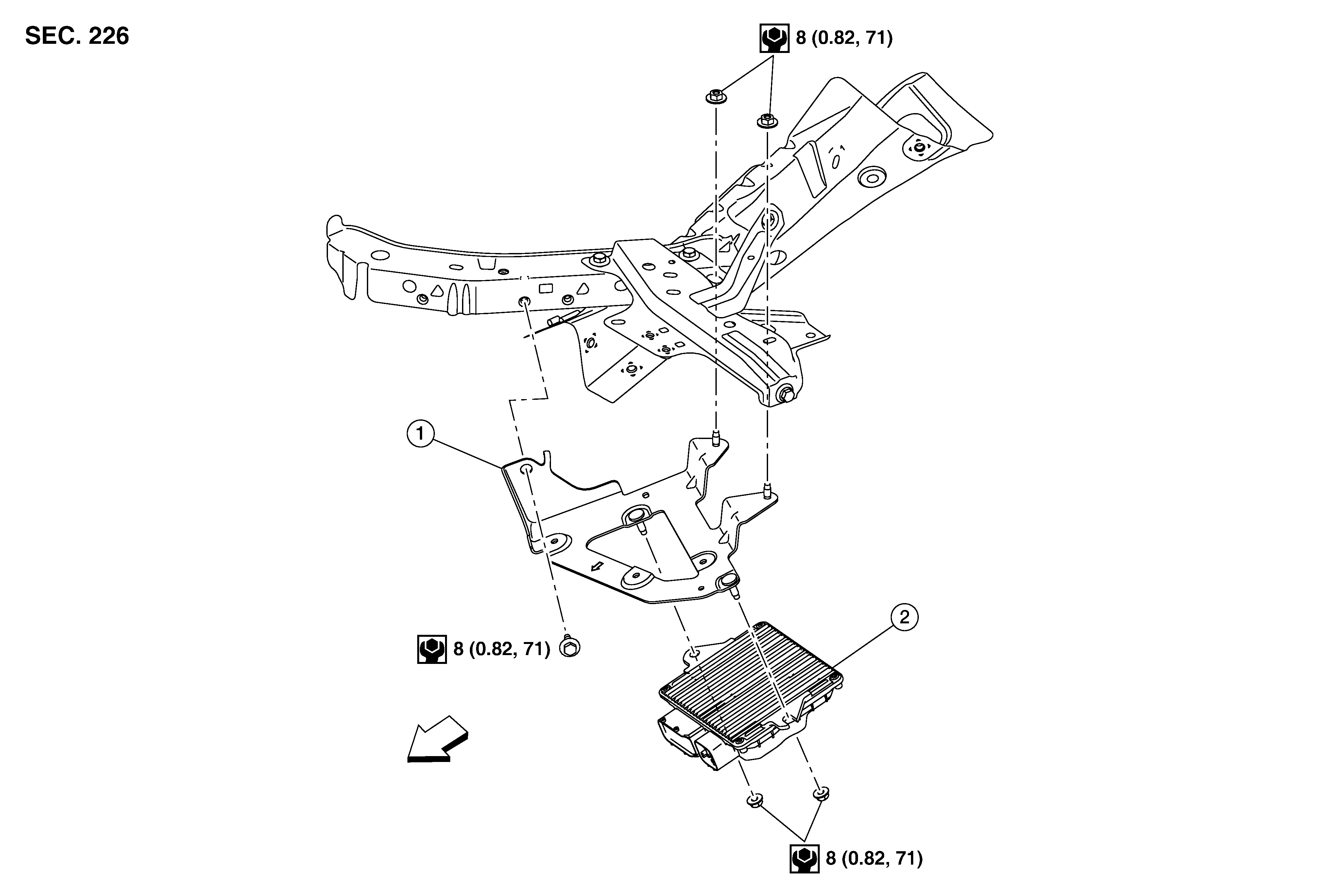

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSDB137460Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric intake valve timing control module bracket 2. Electric intake valve timing control module SYMBOL Front
