Component Location

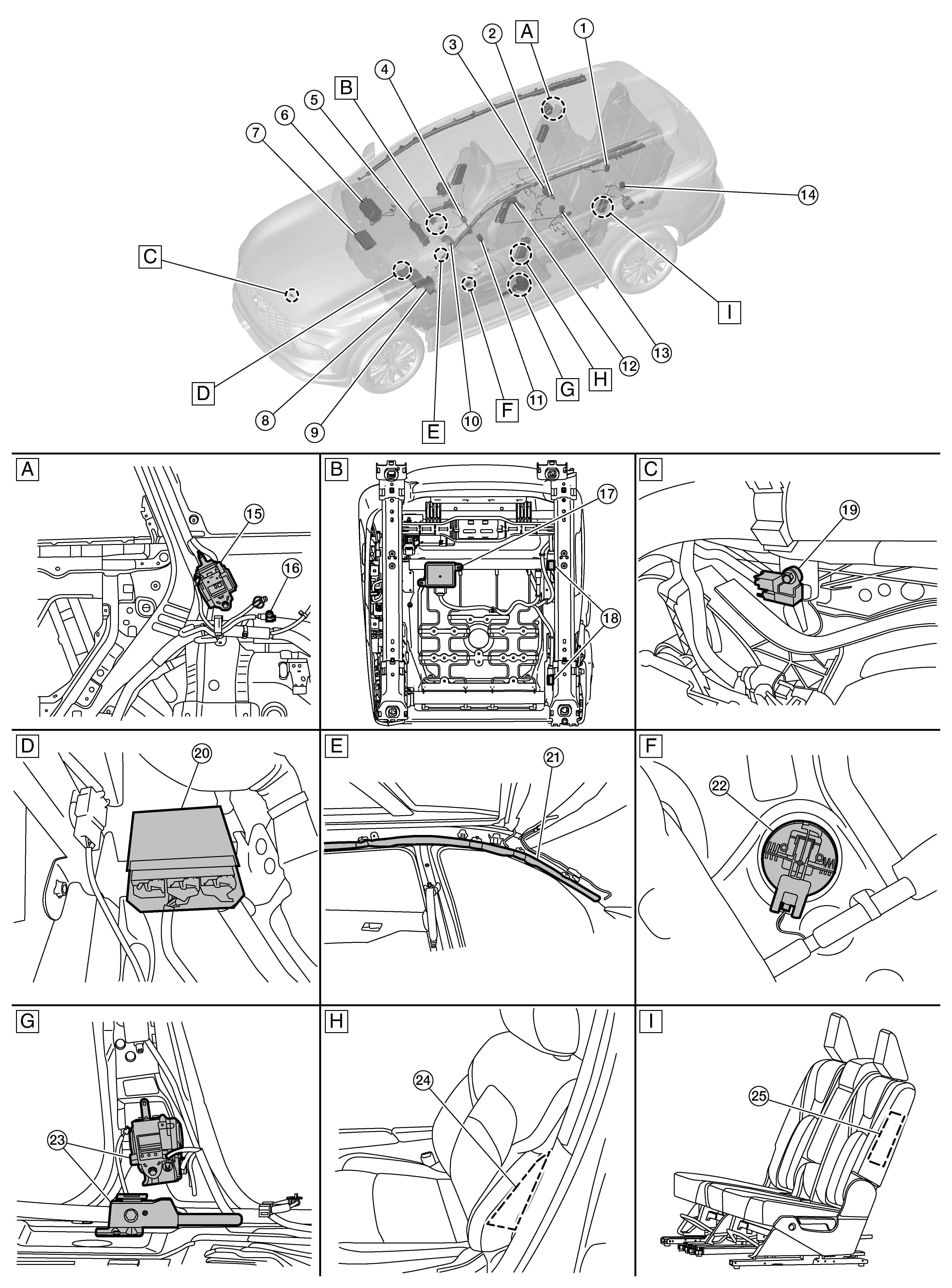

GNSDB139859Courtesy of NISSAN NORTH AMERICA, INC.
A. Right rear seat area (view with rear side finisher removed) B. Right front passenger seat (view with seat removed from vehicle) C. Core support area (view with air intake removed)
D. Between driver and passenger seat (view with center console removed) E. Roof area (view with headliner removed F. Driver door area (view with driver's door finisher removed)
G. Left of driver seat (view with lower B-pillar finisher removed) H. Driver seat area I. 2nd row seat
No. Component Function
1. 3rd row seat belt buckle switch RH Transmits the 3rd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
2. 2nd row seat belt buckle switch CTR (if equipped) Transmits the 2nd row seat belt buckle switch CTR signal to the air bag diagnosis sensor unit.
3. 2nd row seat belt buckle switch RH Transmits the 2nd row seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
4. Front seat belt buckle switch RH Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
5. Integral switch (front passenger air bag off indicator) Refer to Front Passenger Air Bag Off Indicator .
6. Front passenger air bag module Refer to Front Passenger Air Bag Module .
7. Knee air bag module RH (if equipped) Refer to Knee Air Bag Module .
8. Knee air bag module LH
9. BCM (Body Control Module) Transmits the front seat belt buckle switch LH signal via CAN communication. Refer to Component Location for detailed component location.
10. Driver air bag module Refer to Driver Air Bag Module .
11. Front seat belt buckle switch LH Transmits the front seat belt buckle switch LH signal to the BCM.
12. Front center air bag module (if equipped) Refer to Front Center Air Bag Module .
13. 2nd row seat belt buckle switch LH Transmits the 2nd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit.
14. 3rd row seat belt buckle switch LH Transmits the 3rd row seat belt buckle switch LH signal to the air bag diagnosis sensor unit.
15. Rear RH seat belt pre-tensioner (if equipped) (LH similar) Refer to Rear Seat Belt Pre-tensioner .
16. Rear side air bag satellite sensor RH (LH similar) Refer to Rear Side Air Bag Satellite Sensor .
17. Occupant classification system control unit Refer to System Description .
18. Occupant classification system sensors
19. Crash zone sensor Refer to Crash Zone Sensor .
20. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
21. Side curtain air bag module LH (RH similar) Refer to Side Curtain Air Bag Module .
22. Front door satellite sensor LH (RH similar) Refer to Front Door Satellite Sensor .
23. Front LH seat belt pre-tensioner (RH similar) Refer to Front Seat Belt Pre-tensioner .
24. Front side air bag module LH (RH similar) Refer to Front Side Air Bag Module .
25. Rear side air bag module LH (if equipped) (RH similar) Refer to Rear Side Air Bag Module .
