Reference Value

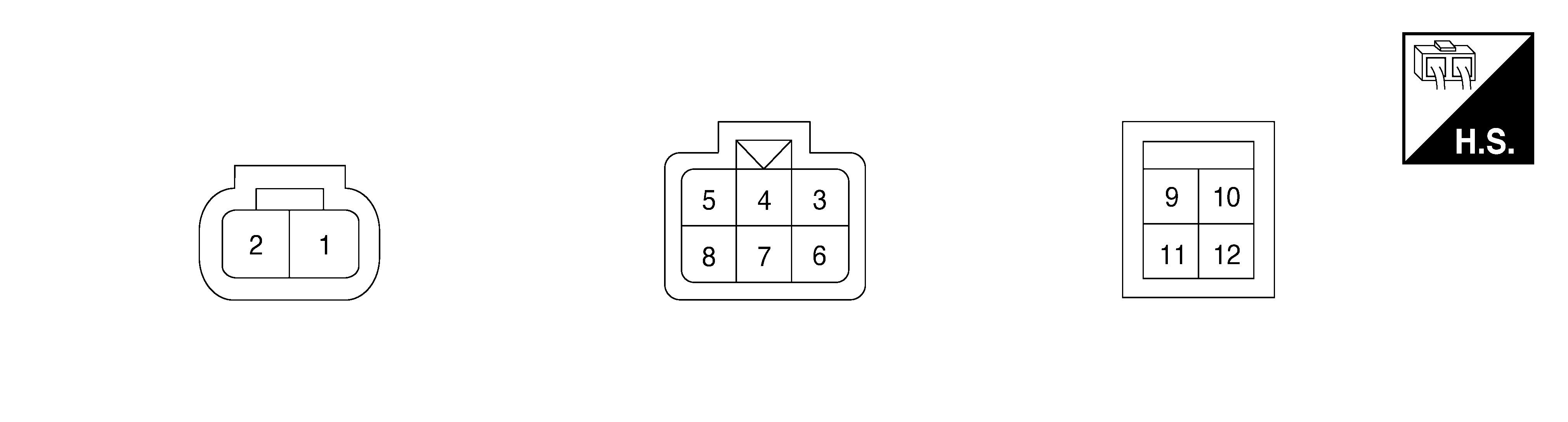

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. (Wire Color) | Description | Condition | Value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
| 1 (B) | Ground | Ground | - | Always | 0 V | |
| 2 (W) | Ground | Battery power supply | Input | Always | Battery voltage | |
| 3 (BR) | Ground | Ignition power supply | Input | Ignition switch: ON | Battery voltage | |
| Ignition switch: OFF | 0 V | |||||
| 4 (GR) | - | CAN-High | Input/Output | - | - | |
| 5 (G) | - | CAN-Low | Input/Output | - | - | |
| 9 (B) | Ground | Ground | - | Always | 0 V | |
| 10 (Y) | - | Sub signal | Input/Output | - | - | |
| 11 (W) | - | Main signal | Input/Output | - | - | |
| 12 (R) | Ground | Power supply | Input | Always | Battery voltage | |
